D16 Welding table angle ruler

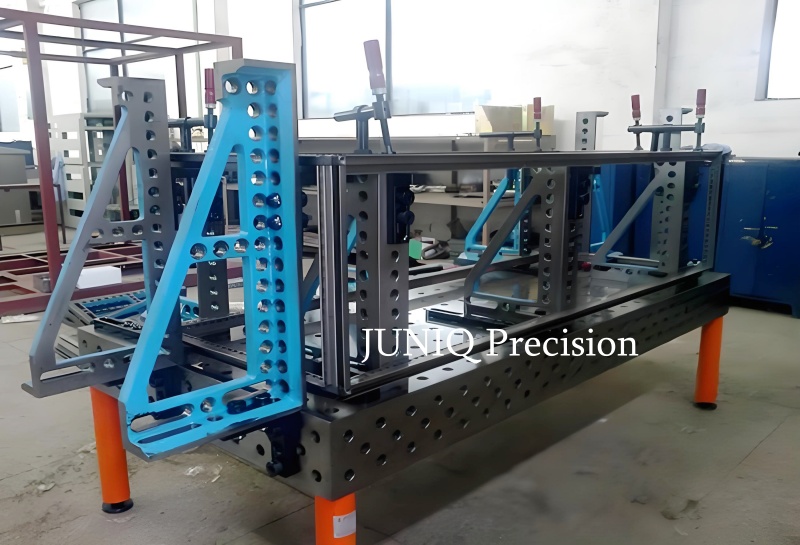

The D16 Welding Table Angle Ruler is a practical positioning accessory designed for D16 3D welding tables and flexible welding fixture systems. It helps welders position workpieces, set working angles, and maintain consistent alignment during welding, assembly, and fabrication.
As a useful component of a D16 welding fixture system, this angle ruler and positioning bracket supports repeatable setup for metal fabrication projects. It is suitable for workshops that require flexible workpiece positioning, efficient fixture adjustment, and reliable welding table accessories.
At JUNIQPrecision, we provide welding table positioning tools and fixture accessories for different industrial requirements. Looking for a D16 angle ruler that fits your existing welding table setup?
For Price ↓↓↓
Email: info@juniqprecision.com
WhatsApp: +86 151 5226 0167
Website: www.juniqprecision.com
Wuxi Juniq Precision Industrial Co., Ltd.
Key Features of D16 Welding Table Angle Ruler
Designed for D16 Welding Table Systems
The D16 welding table angle ruler and positioning bracket is intended for compatible D16 welding fixture setups. Please confirm your table hole system and dimensions before ordering to ensure a suitable fit.
Flexible Angle Positioning
The D16 angle ruler helps operators set and check workpiece angles during welding preparation and assembly. It is useful for applications where consistent angular positioning is important.
Practical Workpiece Location
As a welding table positioning bracket, this accessory helps establish reference positions for metal components and supports repeatable fixture arrangements during fabrication.
Supports Flexible Welding Fixtures
The D16 positioning bracket can be used as part of a flexible welding fixture system, helping operators arrange positioning tools according to different workpiece shapes and assembly requirements.
Suitable for Industrial Fabrication
This D16 welding table accessory is suitable for general metalworking, welding workshops, fabrication lines, and industrial assembly operations that require adjustable workpiece positioning.
Why Choose Our D16 Welding Table Angle Ruler ?
Improve Welding Setup Efficiency
The D16 welding table angle ruler and positioning bracket helps simplify workpiece positioning and angle adjustment before welding. A well-organized fixture setup can reduce repeated manual adjustments and make daily workshop operations more efficient.
Help Organize Your Welding Fixture System

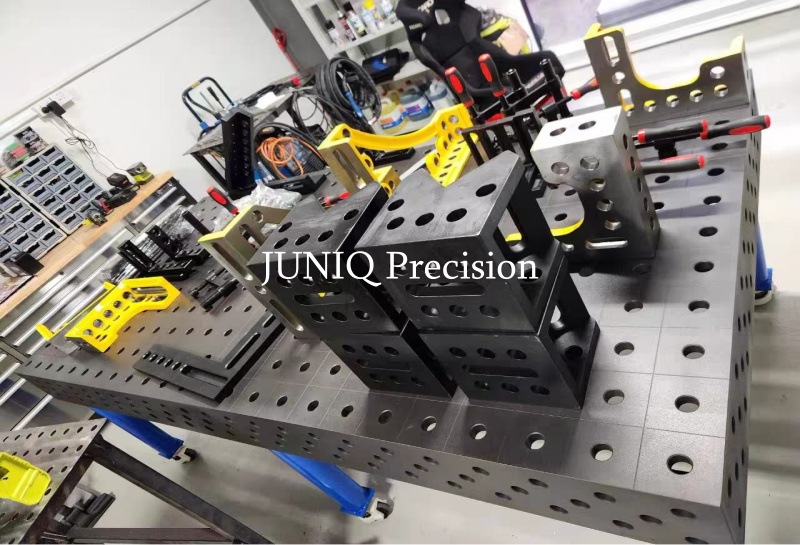

Combining a D16 angle ruler with compatible welding table clamps, locating pins, squares, and other fixture accessories helps create a practical workholding arrangement for different fabrication tasks.
JUNIQ Precision D16 Positioning Square

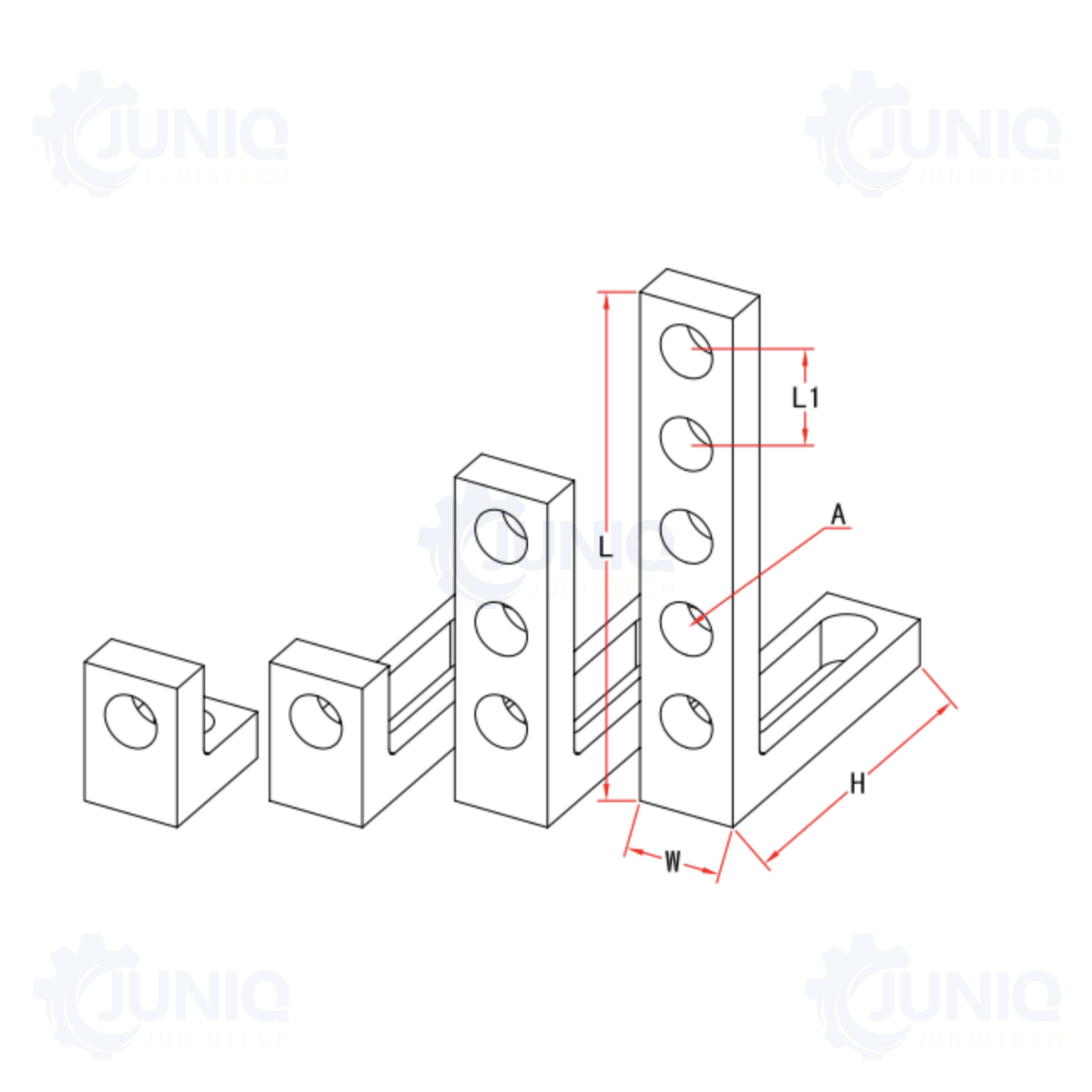

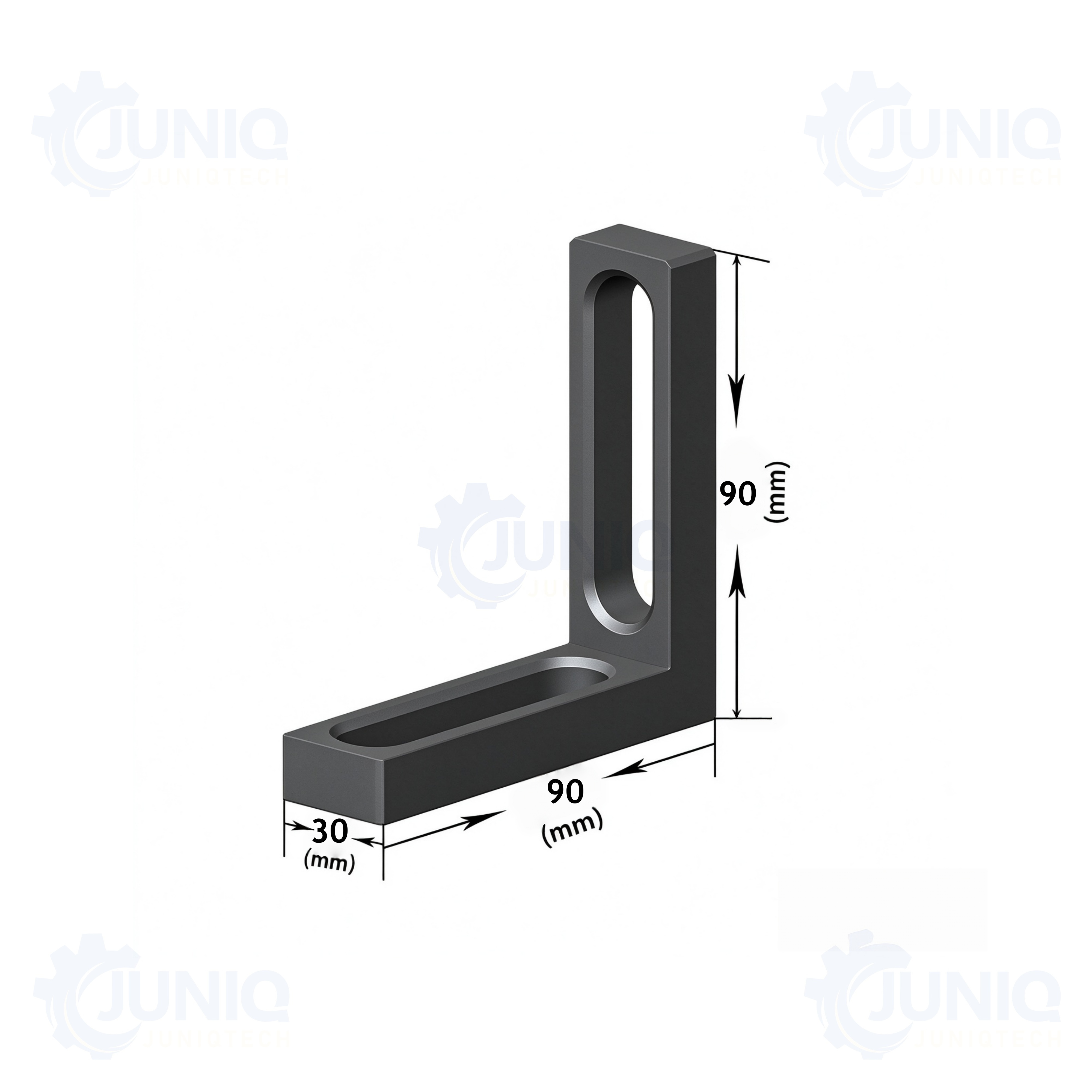

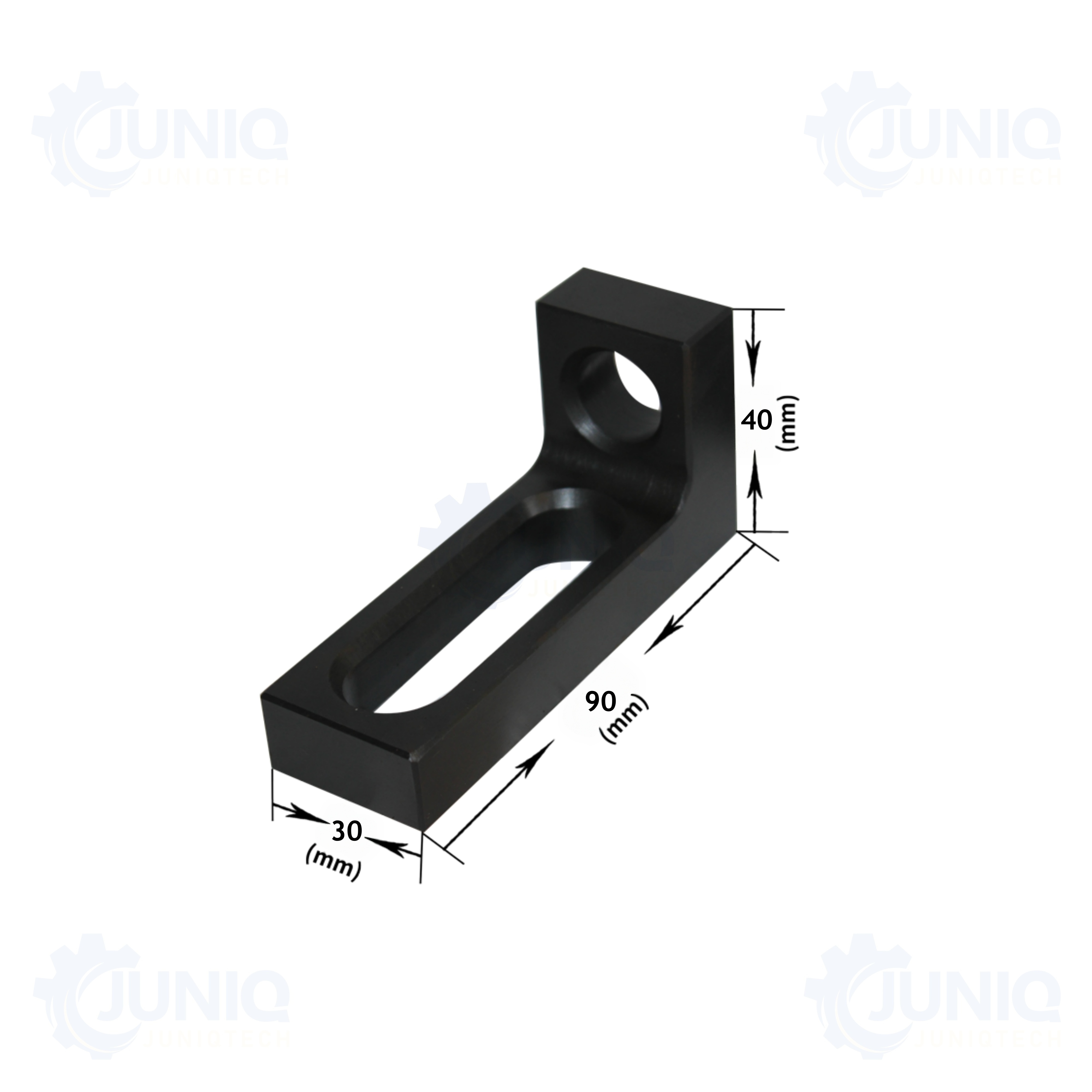

Technical drawing and dimensions for the D16 Positioning Square used in 3D welding table positioning and clamping applications.
Technical Drawing
Reference diagram · Dimensions in mm
Product Dimensions
D16 Positioning Square · Dimensional reference
| Item | Specification | Material |
|---|---|---|
 |
40x30x40mm | Q355 steel |
 |
90x30x40mm | Q355 steel |
 |

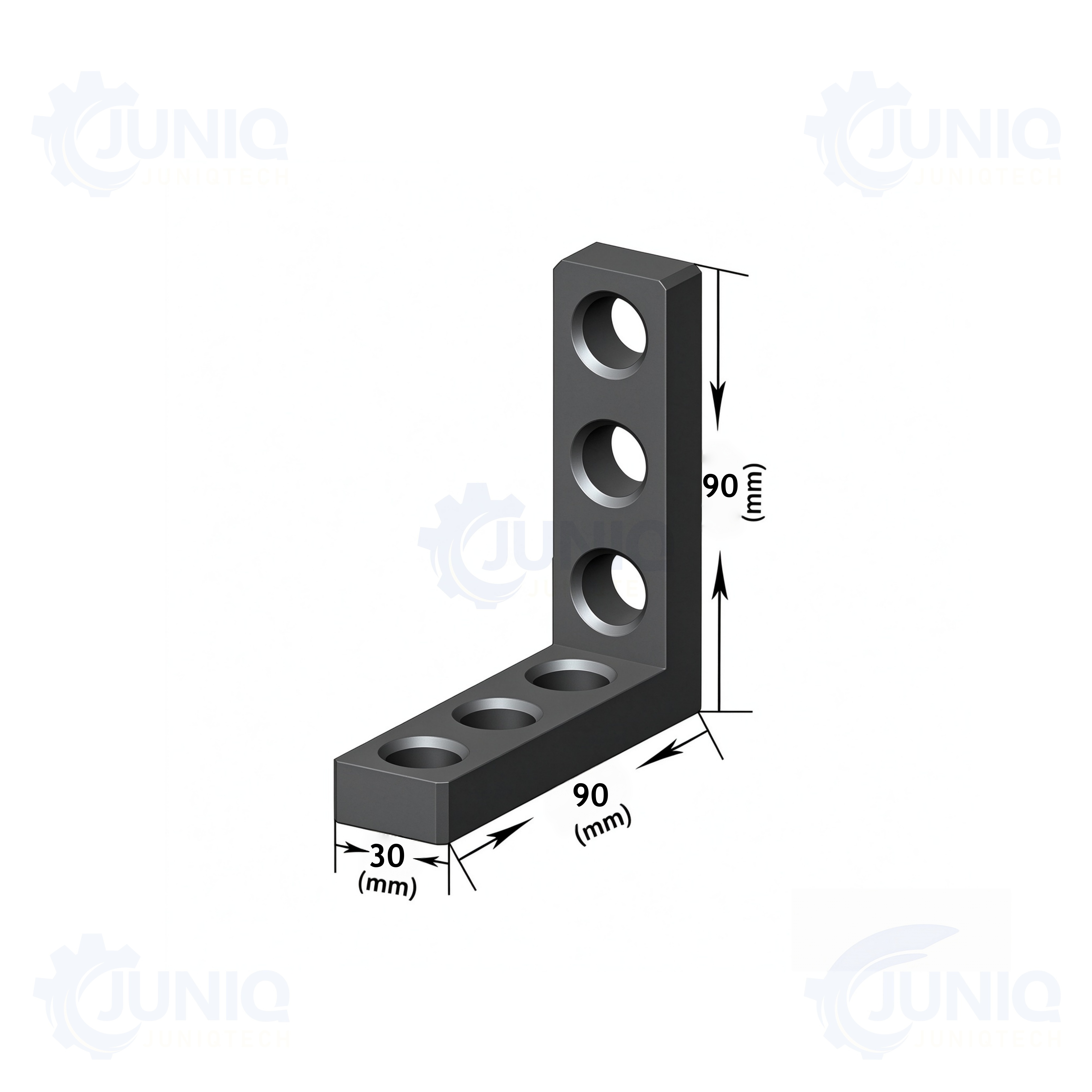

90x30x90（Hole/Hole）mm | Q355 steel |
 |

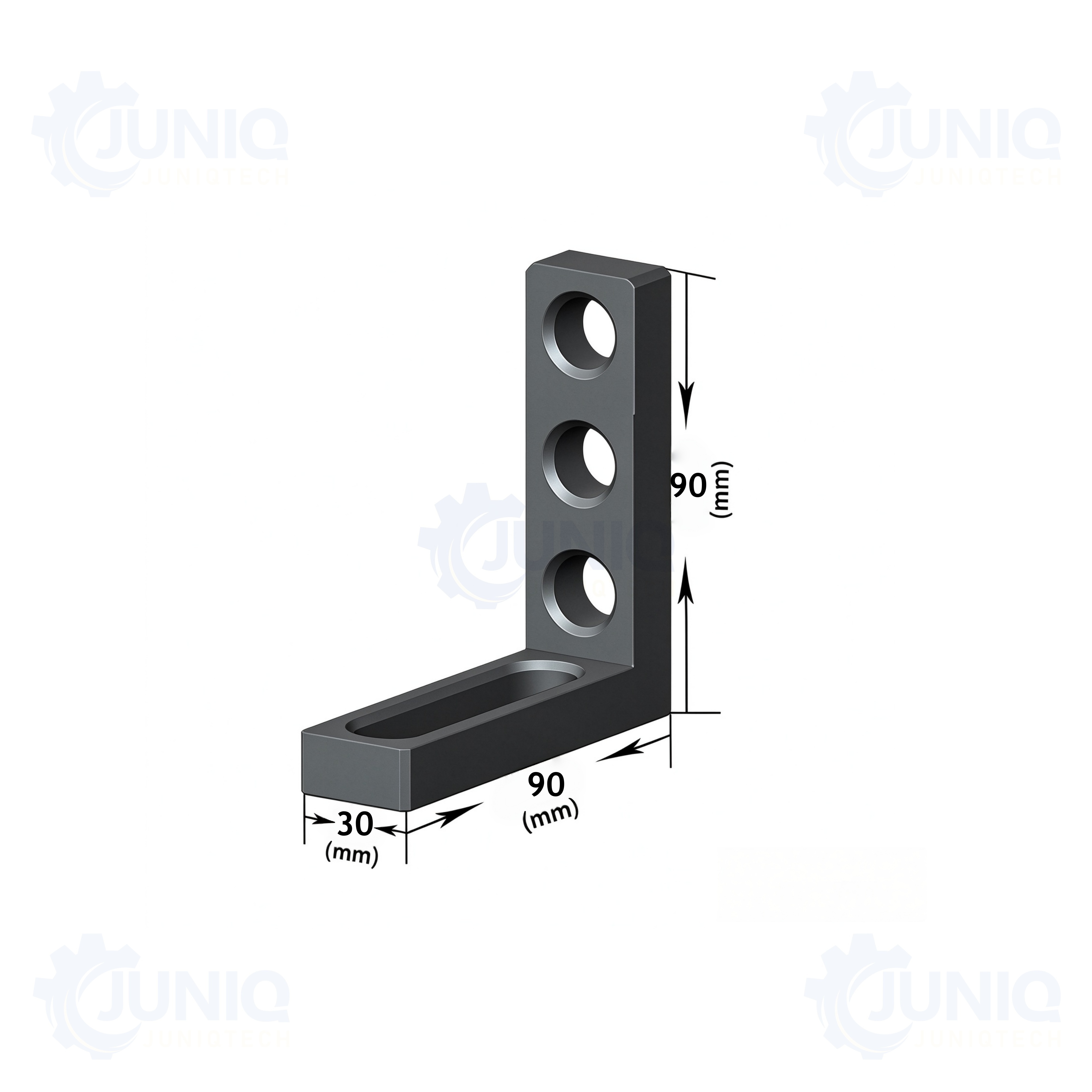

90x30x90（Slot/Slot）mm | Q355 steel |
 |
90x30x90（Hole/Slot）mm | Q355 steel |
|

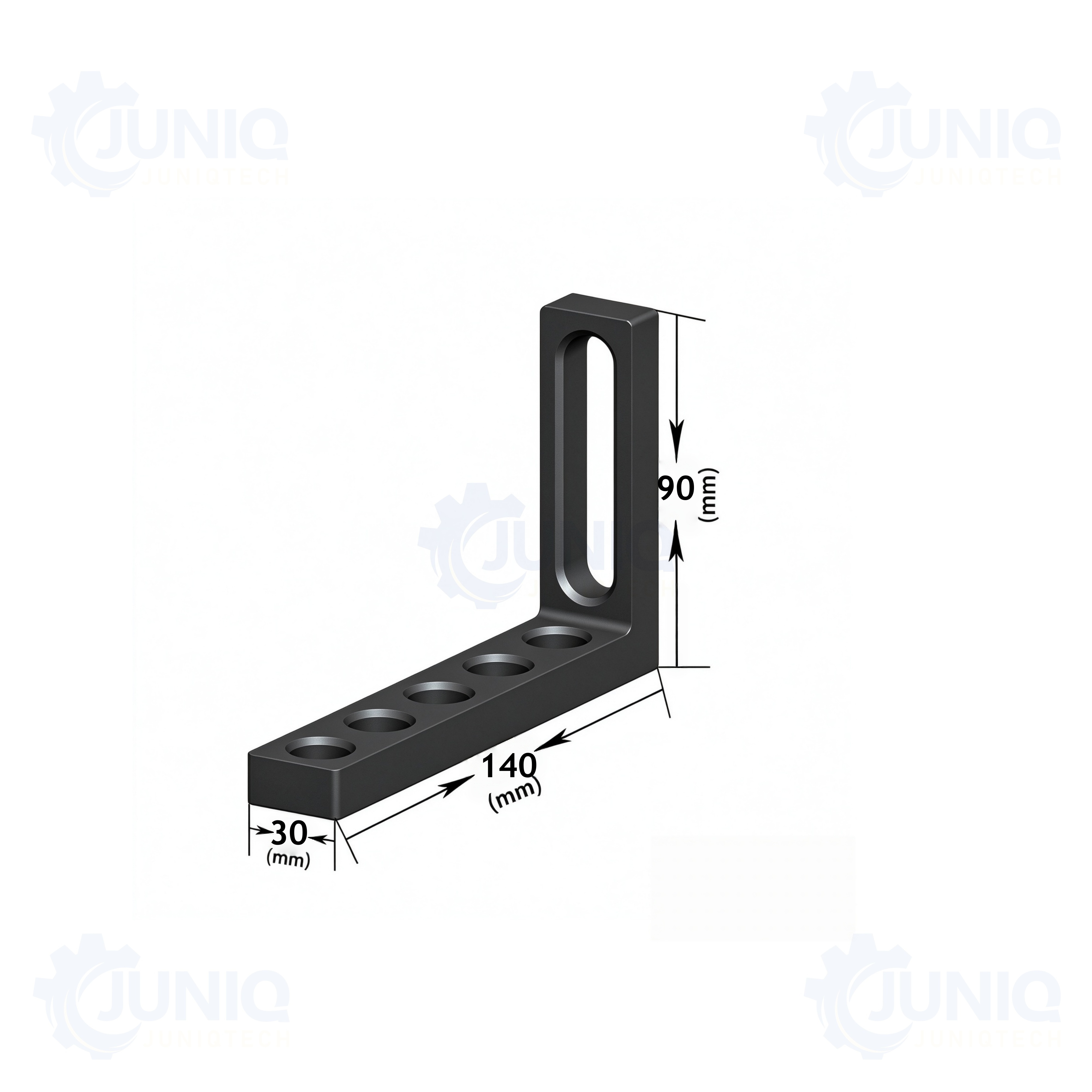

140*30*90mm | Q355 steel |
Note: Please confirm the actual dimensions, material, hole spacing, system compatibility, and load requirements before ordering. Specifications can be updated according to the final product drawing.
Usage Instructions：
Step 1: Check Compatibility
Confirm that your welding table uses a compatible D16 system. Check the hole diameter, spacing, mounting method, and product dimensions before installation.
Step 2: Install the Positioning Bracket

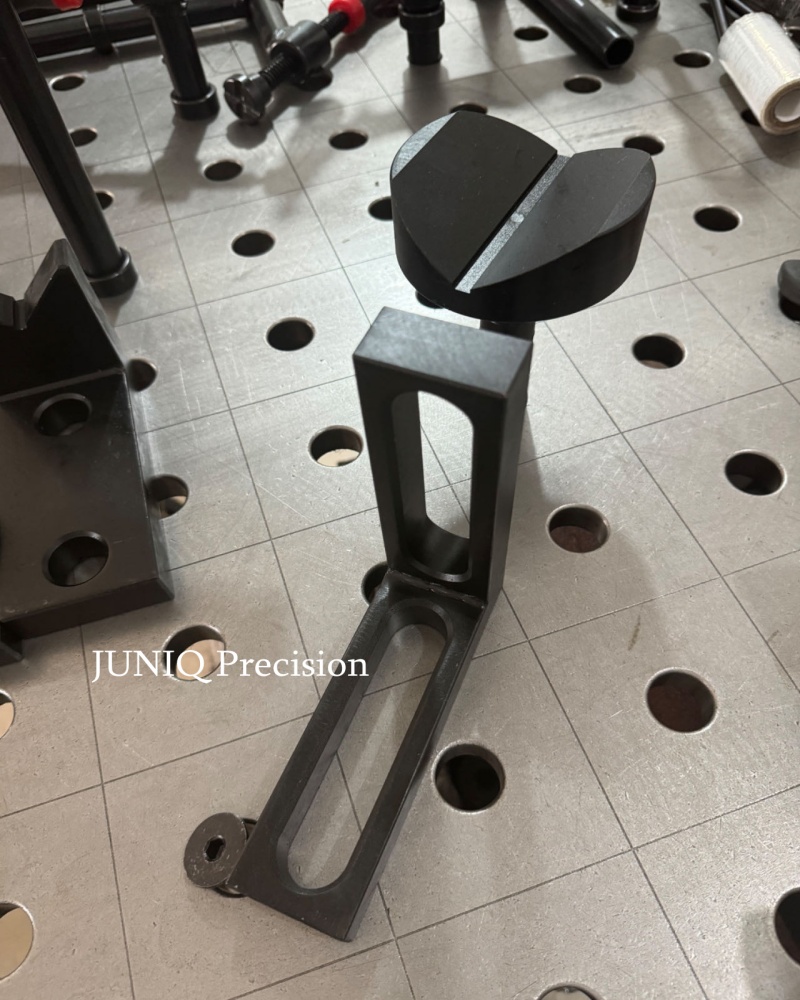

Position the D16 welding table positioning bracket at the required location using the appropriate compatible mounting method and locking accessories.
Step 3: Set the Required Angle
Use the D16 angle ruler to establish the required workpiece angle according to your fabrication drawing or assembly instructions.
Step 4: Position the Workpiece
Place the workpiece against the selected reference points and use suitable clamps or other compatible welding fixture accessories to secure it.
Step 5: Check Alignment Before Welding
Verify the angle, position, and stability of the workpiece before tack welding or completing the welding operation.
Step 6: Recheck for Repeat Jobs
For repetitive production, check the fixture arrangement before each batch to help maintain consistent positioning.
