Welding Table Eccentric Pad
Welding Table Eccentric Pad | Welding Fixture Accessories，Hardened nitrided eccentric fixture pad for D16/D28 modular welding tables, offering fast micro-adjustment to precisely locate workpieces and cut fixturing setup time for metal fabrication.
Features
- Cam Eccentric Offset Design
- Hardened & Nitrided Steel Construction
- Modular Compatibility
- Multi-Function
- Precision CNC Machined
- Compact Low Profile
Applications
Eccentric Pad for Welding Tables | Precision Welding Table Locating Pad
Tired of re-drilling, repositioning clamps, and fighting tight spaces to line up workpieces? Our eccentric fixture pad delivers infinite micro-adjustment on your modular welding table — just rotate the pad to shift your stop position without moving bolts.
👉 Send us an inquiry now for bulk pricing, customization, or technical support.

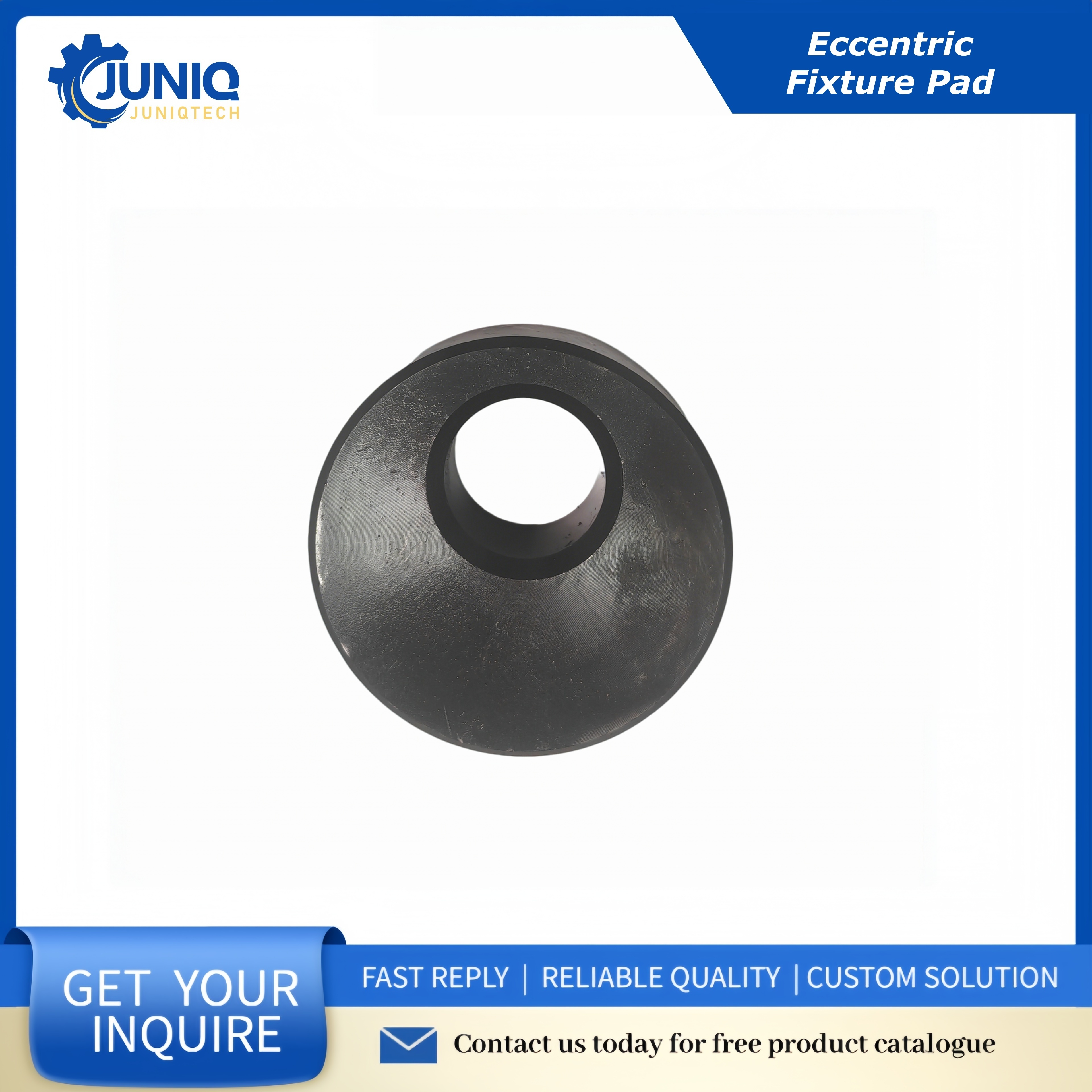

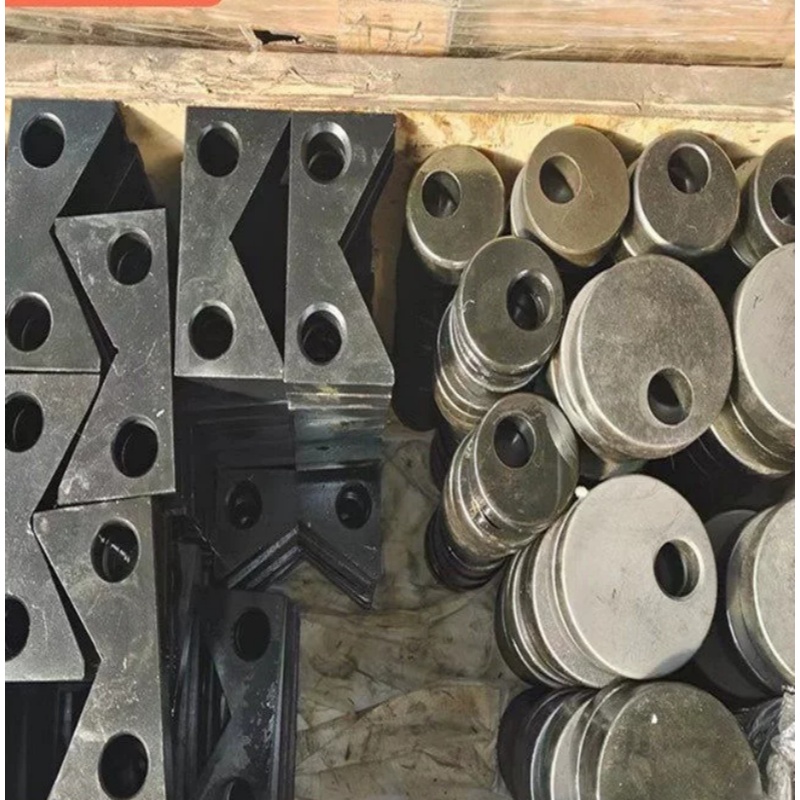

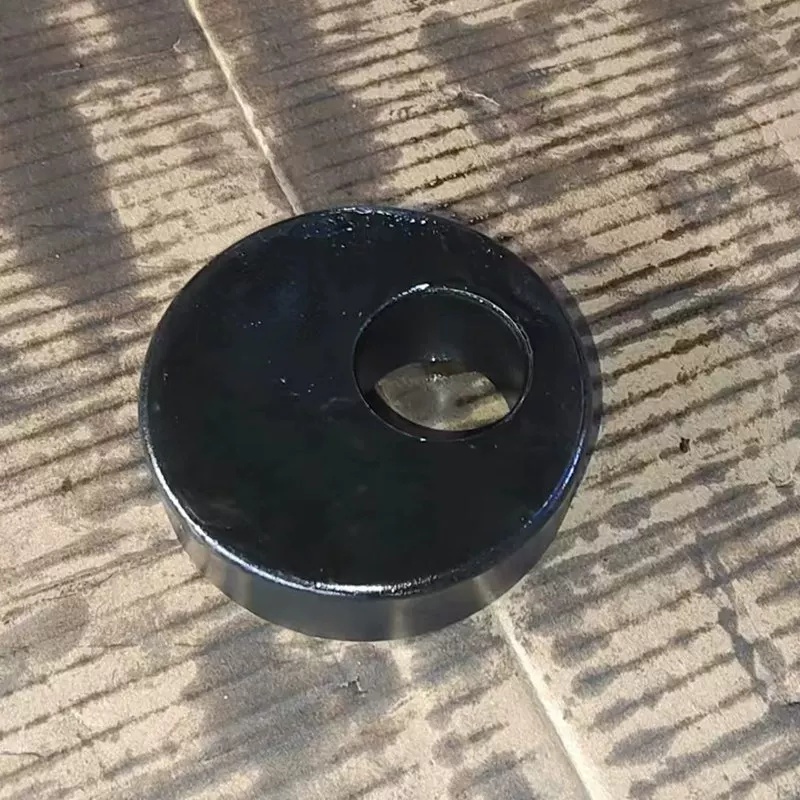

Welding Table Eccentric Positioning Pad

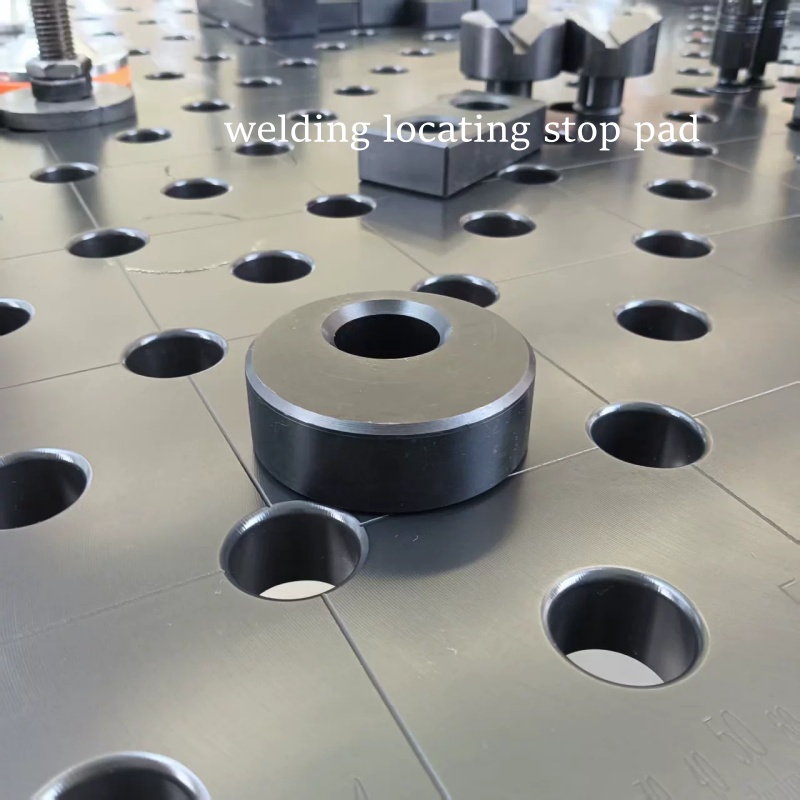

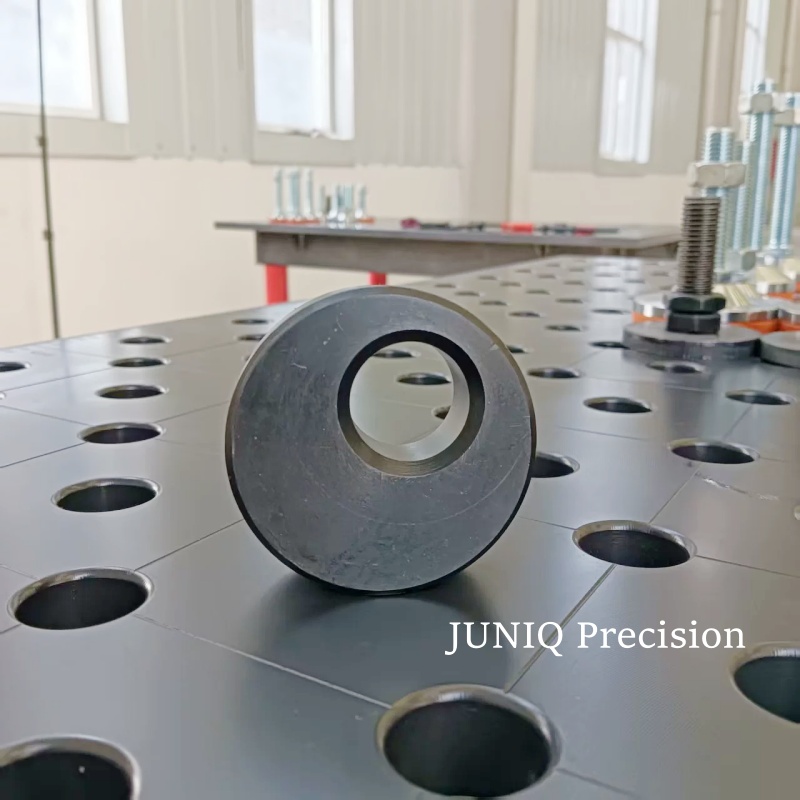

This eccentric pad is an essential modular accessory for 2D & 3D welding tables with standard D16 or D28 hole grids. Built on cam offset design, it acts as an adjustable workpiece stop and support pad for metal fabrication, assembly, batch welding and custom fabricator work.

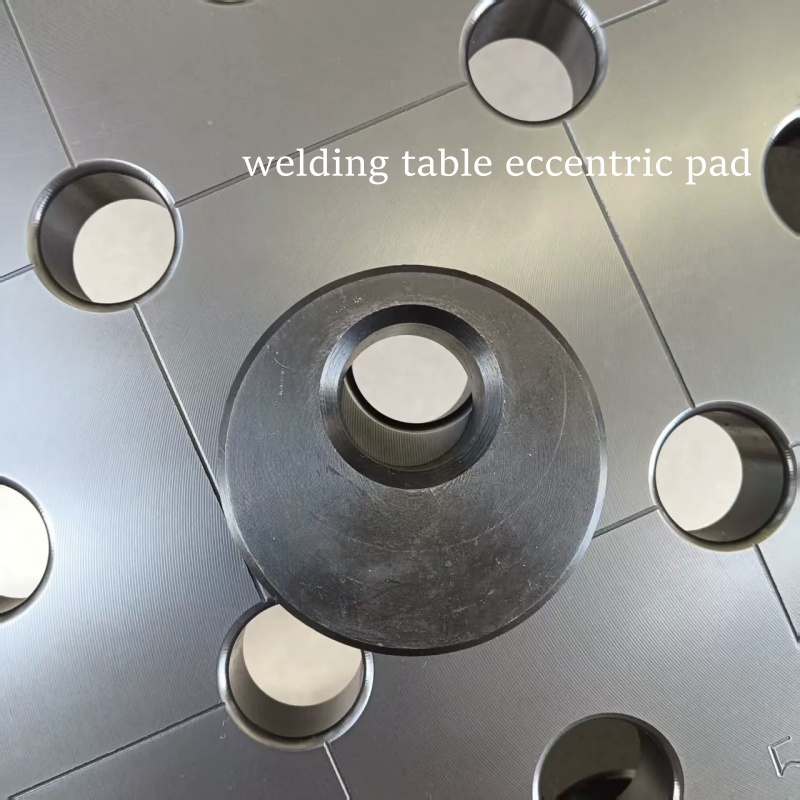

Our eccentric pad solves that: mount the pad with a fixture bolt, rotate the disc, and fine-tune the contact point for round tubing, flat plate, odd-shaped profiles and small components. Cut your fixture setup time while keeping repeatable positioning accuracy for every weld run.
Perfect for weld shops, custom fabricators, robotics welding cells, and hobby metalworkers using modular welding fixturing systems.
Contact Us ↓↓↓
Email: info@juniqprecision.com
WhatsApp: +86 151 5226 0167
Website: www.juniqprecision.com
Wuxi Juniq Precision Industrial Co., Ltd.
Why Choose Eccentric Pad ?
Most fabricators lose hours weekly reworking fixture positions. This eccentric pad changes your workflow:
Precision Metal Work
- Faster Setup: Rotate to adjust position in seconds, reduce downtime between batches.
- Better Precision: Micro-adjustment eliminates gaps and workpiece shift during welding.
- Versatile for Complex Parts: Great for curved, round and irregular profiles where rigid fixed stops fail.
Broader Applicability
4. Heavy-Duty Workshop Grade: Nitriding treatment resists weld spatter, scratches and abrasion.
5. Full Modular Ecosystem: Mix and match with clamps, angle brackets, locating pins and other welding table fixtures.
JUNIQ Precision Eccentric Pad | Welding Fixture Accessories
Technical drawing and dimensions for Locating Angle Ruler used in 3D welding table positioning and clamping applications.

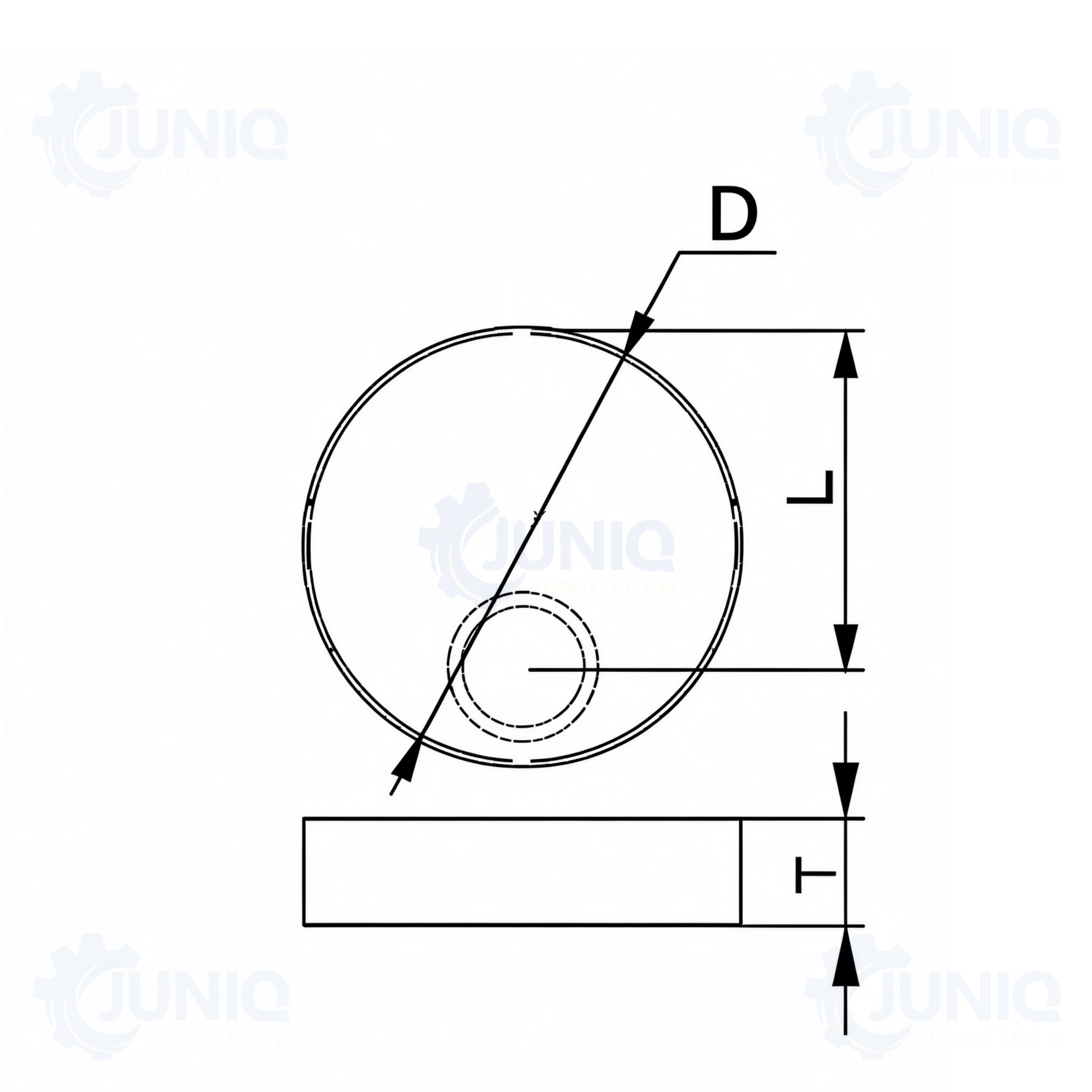

Technical Drawing
Reference diagram · Dimensions in mm

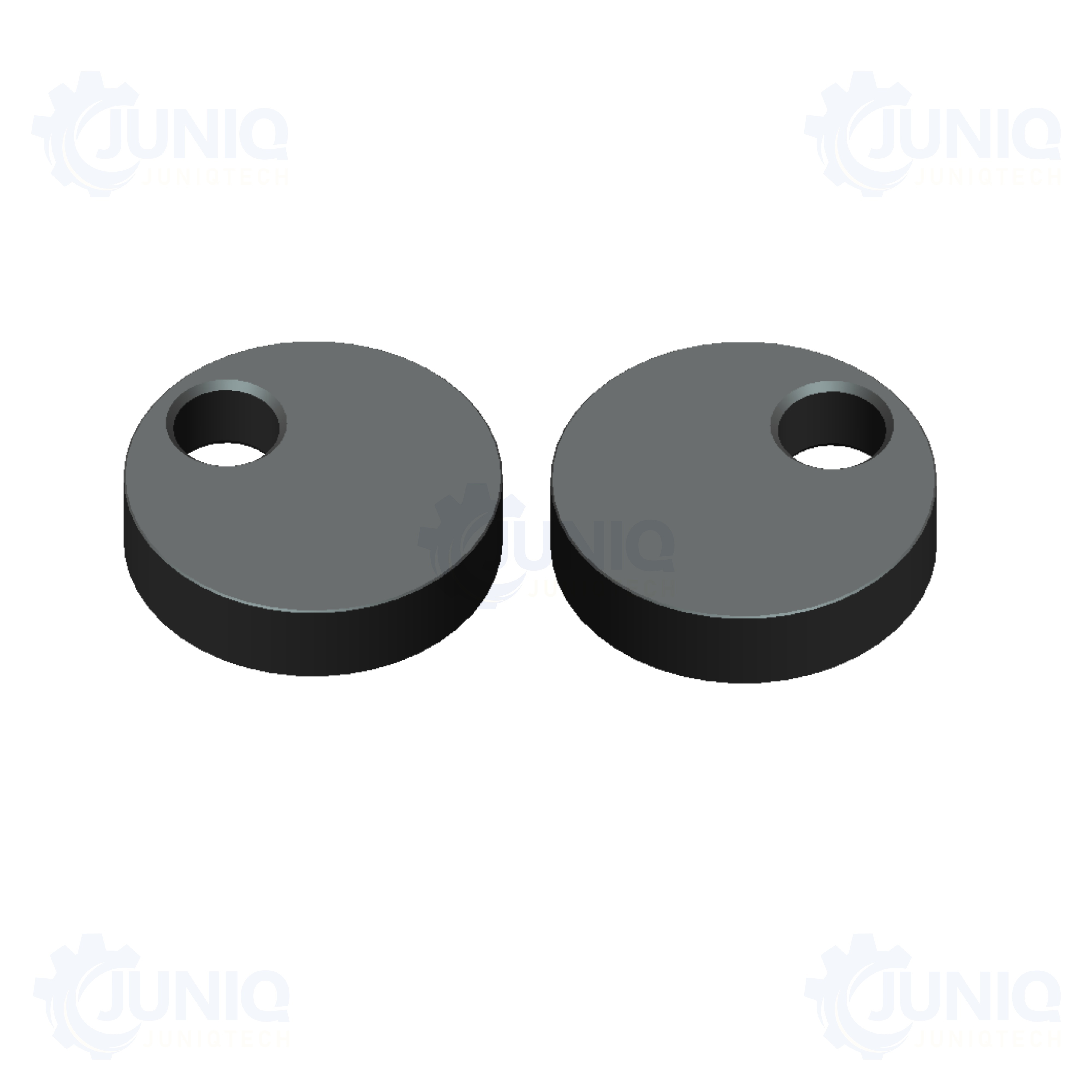

Product Dimensions
Eccentric pad · Dimensional reference
| Item | Specification | Size（L*D*T) |
|---|---|---|
 |
D28 Eccentric positioning disc | 50x75x25mm |
| 75x100x25mm | ||
 |
D16 Eccentric positioning disc | 25x50x12mm |
| 50x75x12mm |
| Item | Parameter |
|---|---|
| Product Name | Eccentric Fixture Pad for Welding Tables |
| Material | Alloy Steel, Nitrided Hardened |
| Available Sizes | Ø50mm / Ø75mm / Ø100mm (custom sizes available) |
| Thickness | 12mm |
| Compatible Table Hole | D16 / D28 modular welding table |
| Adjustment Method | 360° rotary eccentric fine adjustment |
| Application | Welding positioning, metal fabrication, assembly jig |
Note: Fixture bolts / ball lock pins are sold separately.
How to Use & Maintenance？
- Select the matching fixture bolt according to your welding table hole size (D16 or D28), then pass the bolt through the center hole of the eccentric fixture pad and fasten it loosely onto the modular welding table.
- Place your workpiece against the contact face of the eccentric pad. Rotate the pad body clockwise or counterclockwise to achieve fine positional offset, adjusting until the workpiece reaches your required locating position.
- Once the workpiece alignment is confirmed, fully tighten the fixture bolt to lock the eccentric pad in place. Secure your workpiece with clamps and start your welding operation.
- After finishing the weld task, loosen the bolt slightly, rotate the pad to release workpiece pressure, then remove the finished part. You can re-adjust or reposition the pad for the next job without removing the bolt completely.
- Clean after every use: Remove weld spatter, metal shavings, dust and oil from the pad surface and central hole. A wire brush or industrial cleaner works well to avoid debris affecting rotation accuracy.
- Prevent rust: The nitrided hardened steel surface offers good wear resistance, but long-term exposure to moisture may cause corrosion. Wipe dry after use, apply a thin layer of anti-rust oil if storing for an extended period.
- Inspect regularly: Check the contact face for deep scratches, dents or deformation. If the flat surface is damaged, positioning accuracy will decline; replace the pad to guarantee welding tolerance.
- Avoid overloading: This pad is designed for workpiece locating support, not as a heavy load-bearing base. Do not use it to bear extreme impact or heavy pressing force beyond its rated capacity.
- Storage: Store in a dry tool cabinet, separate from sharp cutting tools to prevent surface gouges.
How to Use?
Tip: Do not apply excessive impact force on the pad during adjustment. Keep the contact surface clear of heavy weld spatter before each use for precise positioning.
Maintenance
Video of Our Product
For more videos ,please kindly feel free to contact our sales engineer:Summer directly.
Speed Up Your Welding Fixturing With Eccentric Fixture Pad for Welding Tables
Our eccentric pad for welding tables features a cam offset design that delivers instant micro-positioning. Simply rotate the pad to tweak workpiece alignment without removing bolts or drilling new holes on your D16 / D28 modular welding table.
Crafted from hardened nitrided steel, this low-profile locating pad withstands weld spatter, abrasion and repeated clamping impacts. Perfect for plates, square tubing, round pipe and irregular profiles across custom fabrication, batch welding, automotive and prototype jobs.
Watch the video to see how quick setup and precise positioning help eliminate workpiece shifting and cut your fixture downtime.
Where Eccentric Fixture Pad for Welding Tables Are Used？
The pad is ideal for:

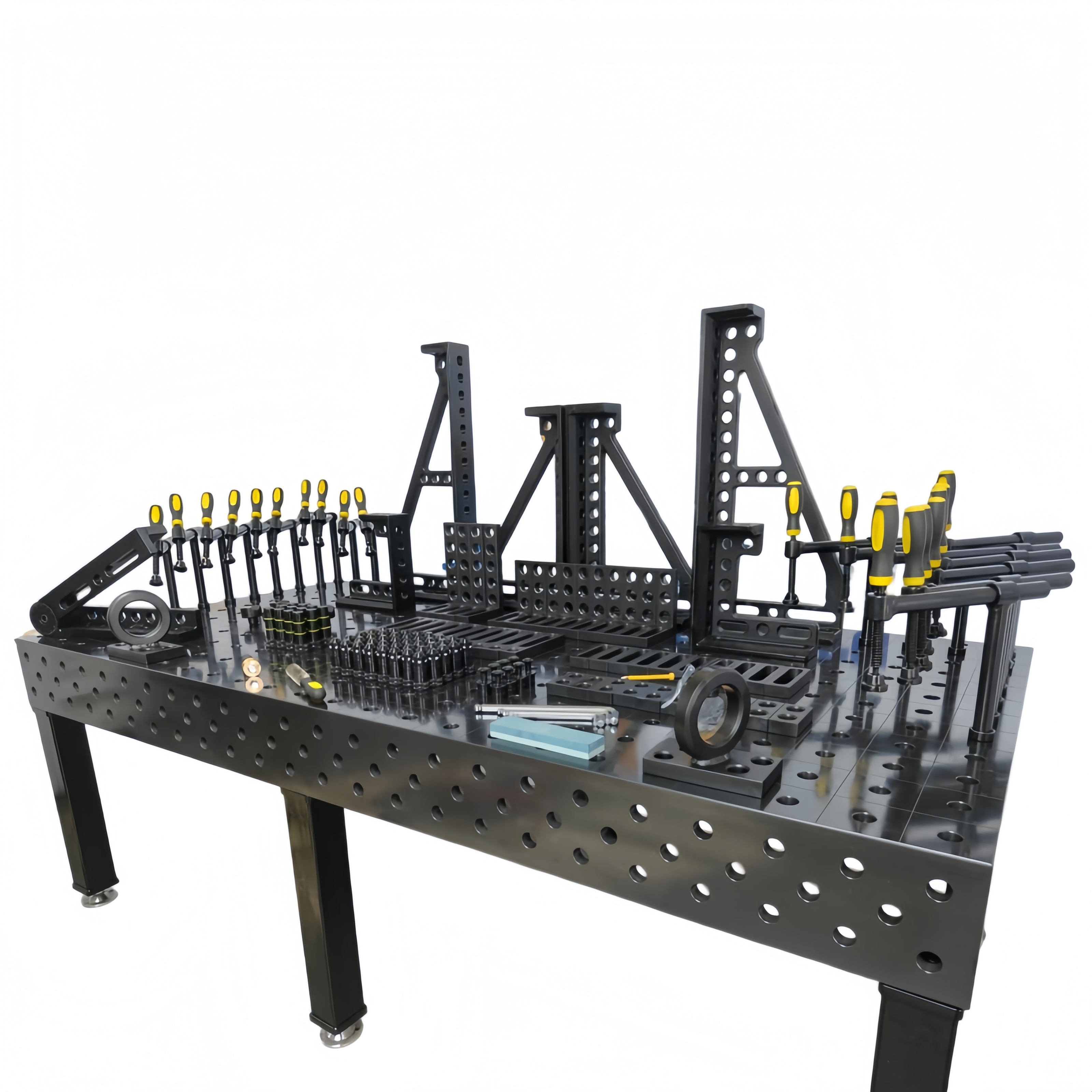

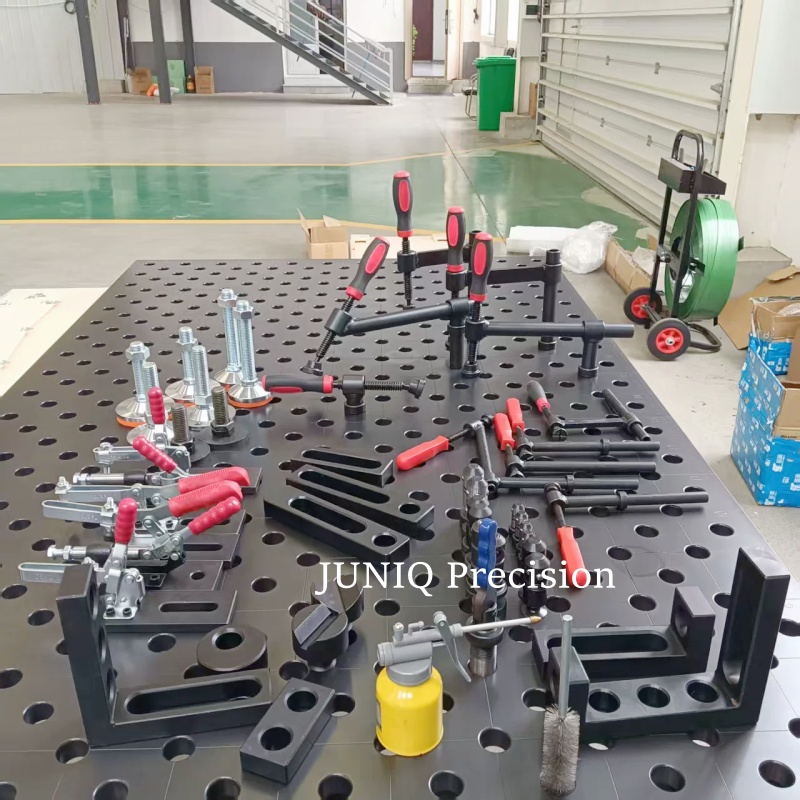

Modular 3D Welding Table Fixturing
Engineered to integrate seamlessly with standard 3D modular welding tables featuring D16 and D28 hole grids, this eccentric fixture pad delivers flexible, repeatable positioning. Fabricators can quickly fine-tune workpiece alignment without removing mounting hardware, making it ideal for building custom jigs and fixture layouts on multi-purpose welding platforms.
Custom Metal Fabrication Shops
For small and medium custom metal fabrication shops handling mixed one-off and short-run orders, this eccentric pad drastically cuts fixture rework time. It accommodates varied part geometries, from flat plates to formed profiles, letting operators adjust positions in seconds and maintain consistent accuracy across different custom projects.
Batch Production Welding Jigs
In batch production environments where repeatability and fast changeovers are critical, our eccentric fixture pad serves as an adjustable locating reference within welding jigs. Operators can make minor positional tweaks between production runs, reducing downtime and ensuring every workpiece sits in the exact same position for uniform weld quality.
Workshop, Factory and Robotic Welding Stations
Suitable for manual workshop setups as well as automated robotic welding cells. The hardened eccentric pad maintains stable positioning under continuous heavy use. Robotic welding systems benefit from its precise locating feature, helping reduce workpiece shift and minimize weld defects in automated production cycles.
