3D Welding Table V-block

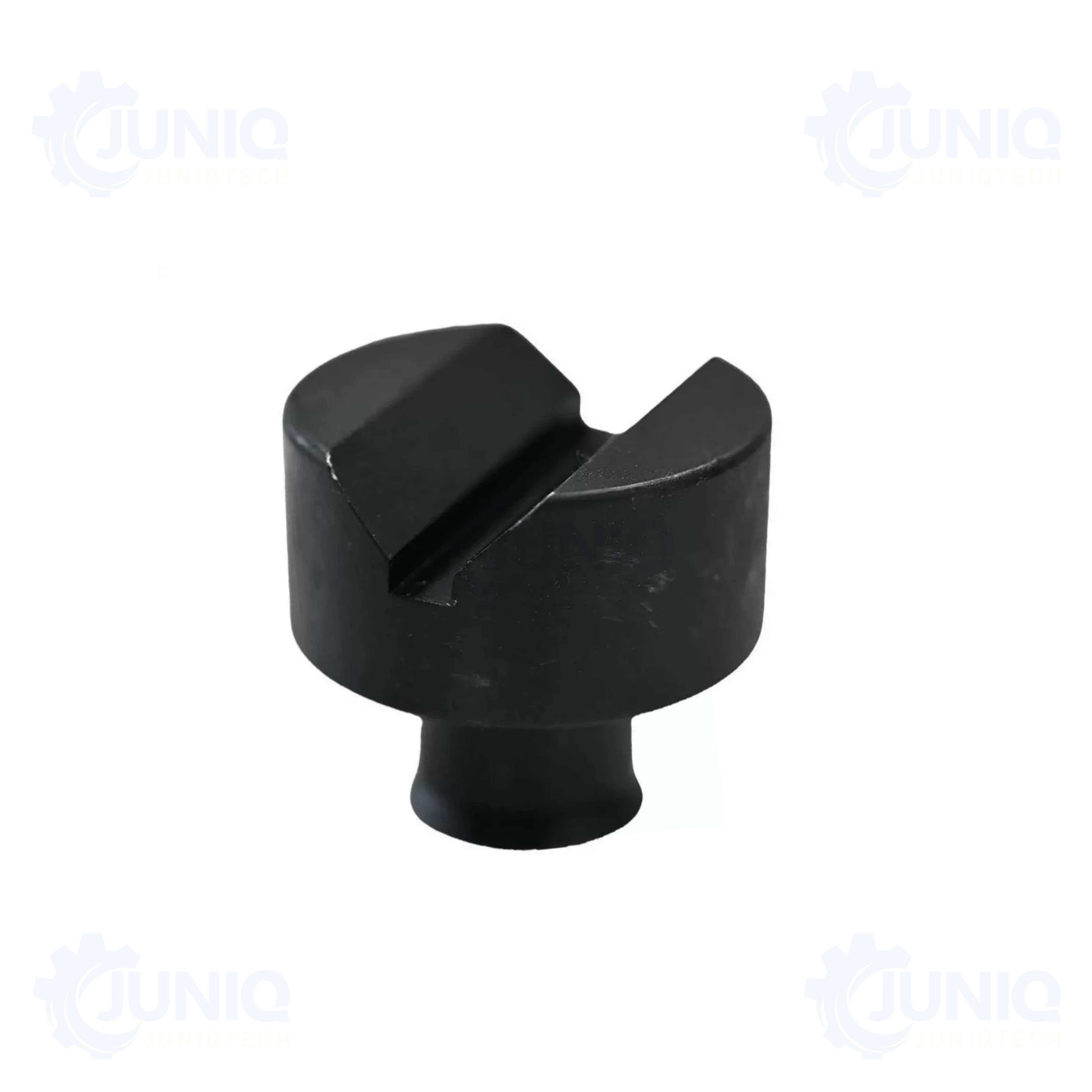

Our V-Type Support Block (V block) is precision-engineered for tube positioning on 28mm and 16mm 3D welding tables. Pick matched V-block angles by pipe OD: 90°,120°,140°–150°. Available in nylon, stainless steel, iron, copper; integral or screw-connected construction. Lock firmly onto any workpiece for fast, repeatable welding fixture alignment, ideal for pipe fabrication and metal welding jigs.
Features

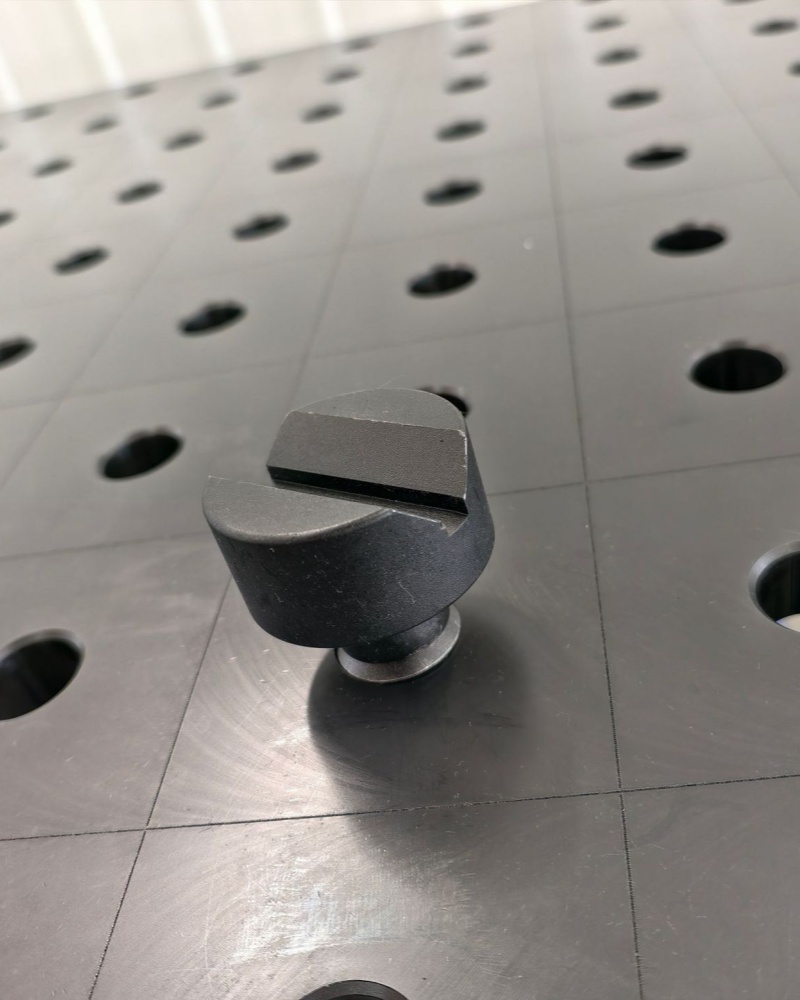

- Dedicated V-Type Support Block for tube positioning on 16mm / 28mm 3D welding table
- Angle matched to pipe outer diameter: 90°,120°,140°~150° for different tube sizes
- Two connection types: integral one-piece V block or screw-connected V block
- Angle variants: Single, Cross, Combined & Composite V-groove
- Lockable on any workpiece, compatible with full set of welding locating fixtures
- Self-centering V-groove stops tube rolling and drifting during welding
Applications

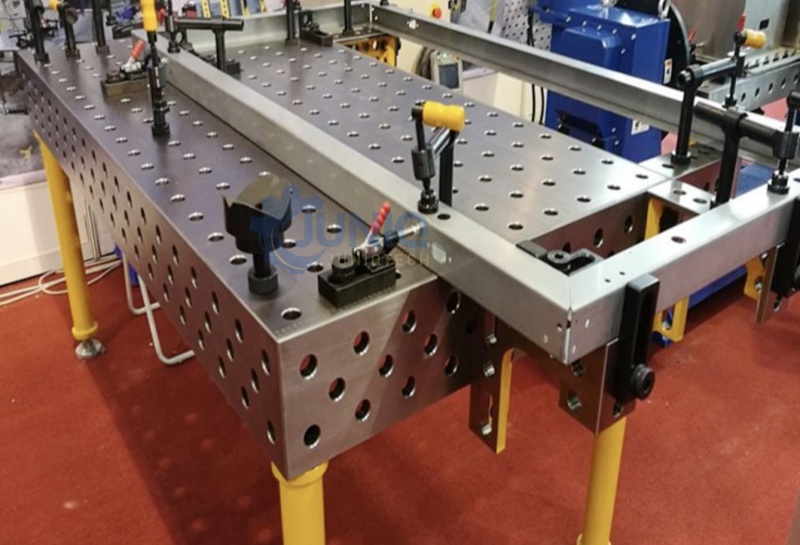

V-block Location| V Block Tube Positioning for 28mm /16mm 3D Welding Table
If you are tired of round tubes rolling, shifting and losing alignment while building jigs on your 3D welding table, our V-Type Support Block (V block / V-type positioning block) is the reliable workholding solution your fabrication shop needs.
👉 Send us an inquiry now for bulk pricing, customization, or technical support.
Welding Table V-block Pad

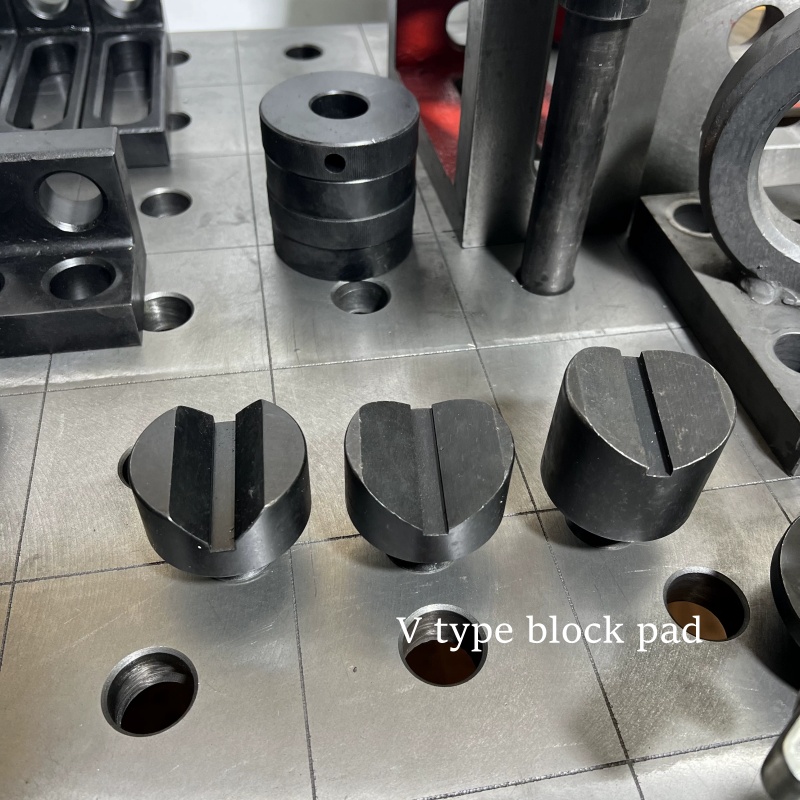

The welding table V-block comes in two main connection styles: integral one-piece construction and screw-connected assembly. Choose integral V blocks for heavy-load fixed locating applications, or screw-connected V blocks for easy disassembly, modification and flexible fixture reconfiguration.
Multiple material options are available to match different workshop environments: nylon, stainless steel, iron and copper. We also supply four core angle categories: single angle, cross angle, combined angle and composite angle, to fit simple locating jobs or complex multi-tube welding jigs.
Contact Us ↓↓↓
Email: info@juniqprecision.com
WhatsApp: +86 151 5226 0167
Website: www.juniqprecision.com
Wuxi Juniq Precision Industrial Co., Ltd.
Why Choose V Support Block ?
Most fabricators lose hours weekly reworking fixture positions. This eccentric pad changes your workflow:
Precision Metal Work
- Precise Tube Self-Centering V-groove geometry automatically centers round pipes, eliminating manual alignment guesswork. Reduce offset errors and deliver consistent weld quality across batches.
- Wide Size Adaptability Custom V angles for small, medium and large diameter pipes. One fixture system can handle a broad range of tube OD without switching entire jigs.
- Flexible Connection Options Choose integral V blocks for rigid heavy-duty use, or screw-connected V blocks for disassembly, custom modification and transportable jig builds.
Broader Applicability
- Full Modular Compatibility with 3D Welding Table Fits standard 16mm and 28mm hole grid 3D welding tables. Works seamlessly with locating pins, quick clamps, angle brackets and other welding table accessories.
- Universal Mounting Not limited to table grid holes. This V-Type Support Block can lock onto nearly any workpiece, so you can build multi-point locating structures for complex tube assemblies.
- Cut Setup Time & Reduce Scrap Less time spent adjusting rolling tubes. Fewer alignment mistakes mean less scrap, faster turnaround and higher workshop throughput.
JUNIQ Precision V Block Positioning Pad
Technical drawing and dimensions for Locating Angle Ruler used in 3D welding table positioning and clamping applications.
Technical Drawing
Reference diagram · Dimensions in mm
Product Dimensions
Eccentric pad · Dimensional reference
| Item | System | Specification | Size（D*H*a) |
|---|---|---|---|
 | D28 | V-shaped Block Pad | φ58x50(H)-90° |
 |
φ58x50(H)-120° | ||
 |
φ58x50(H)-140° | ||
 |
Adjustable V Block with screw | φ110x120(H)-120° | |
| φ140x120(H)-140° | |||
 | W-shaped Block | φ68x34(H)-120°/90° | |
| D16 | V-shaped Block Pad | φ48x34(H)-130° |
|
Adjustable V Block with screw | φ65/120° | |
| φ80/120° | |||
|
W-shaped Block |
φ48x34(H)-120°/90° |
| Item | Details |
|---|---|
| Product Name | V-Type Support Block / V Block / V-type positioning block |
| Compatible Welding Table | 16mm (D16) and 28mm (D28) 3D welding table system |
| Primary Application | Round tube / pipe positioning, welding jig, fabrication fixture |
| Connection Structure | Integral one-piece, Screw-connected |
| Available Materials | Nylon, Stainless Steel, Iron, Copper |
| V-Groove Angle Types | Single angle, Cross angle, Combined angle, Composite angle |
| Angle Selection Rule | ≤100mm pipe:90°; 100–140mm pipe:120°; >140mm pipe:140°–150° |
| Mounting Feature | Lockable on any workpiece, works with locating pins & quick clamps |
| Workpiece Type | Carbon steel tube, stainless pipe, aluminum round bar, hollow profiles |
Note: Fixture bolts / ball lock pins are sold separately.
How To Use Your V-Block
- Select the correct V block Check your pipe outer diameter and pick the matching V-groove angle. Use 90° V block for tubes under 100mm, 120° for 100–140mm pipe, and 140–150° wide V block for pipe larger than 140mm.
- Place V block on your 3D welding table or workpiece Position the V-type positioning block at your required locating point on your D16 or D28 3D welding table grid. You can also mount it directly onto existing workpieces as a secondary locating support.
- Lock the V block firmly Secure the V-Type Support Block using table bolts, locating pins or clamps. Make sure there is no wobble before placing your round tube into the V-groove.
- Load your pipe into V-groove Set the tube inside the V groove; the V shape naturally centers the pipe and prevents rolling. Add side clamps if heavy loads or long welding cycles are expected.
- Complete welding / assembly Perform welding, marking, cutting or assembly work. After finishing, release clamps and reposition the V block quickly for your next workpiece.
Maintenance Tip: Clean V-groove after each use, remove weld spatter and metal chips to preserve positioning accuracy.
Video of Our Product
For more videos ,please kindly feel free to contact our sales engineer:Summer directly.
Speed Up Your Welding Fixturing Efficiency
Watch our V-Type Support Block in action on D16 / D28 3D welding tables. This demo shows quick tube positioning setup using our V block.
Select the proper V-groove angle for your pipe size, lock the V-type positioning block, and place your round tube. The V groove self-centers your pipe and prevents rolling during welding.
Choose integral or screw-connected V blocks in nylon, iron, stainless steel or copper. We offer 90°,120°,140°–150° angles to support different tube diameters. Ideal for pipe welding, metal fabrication and custom welding jigs.
Where V-block Pad Are Used
The pad is ideal for:
Automotive Pipe Assembly

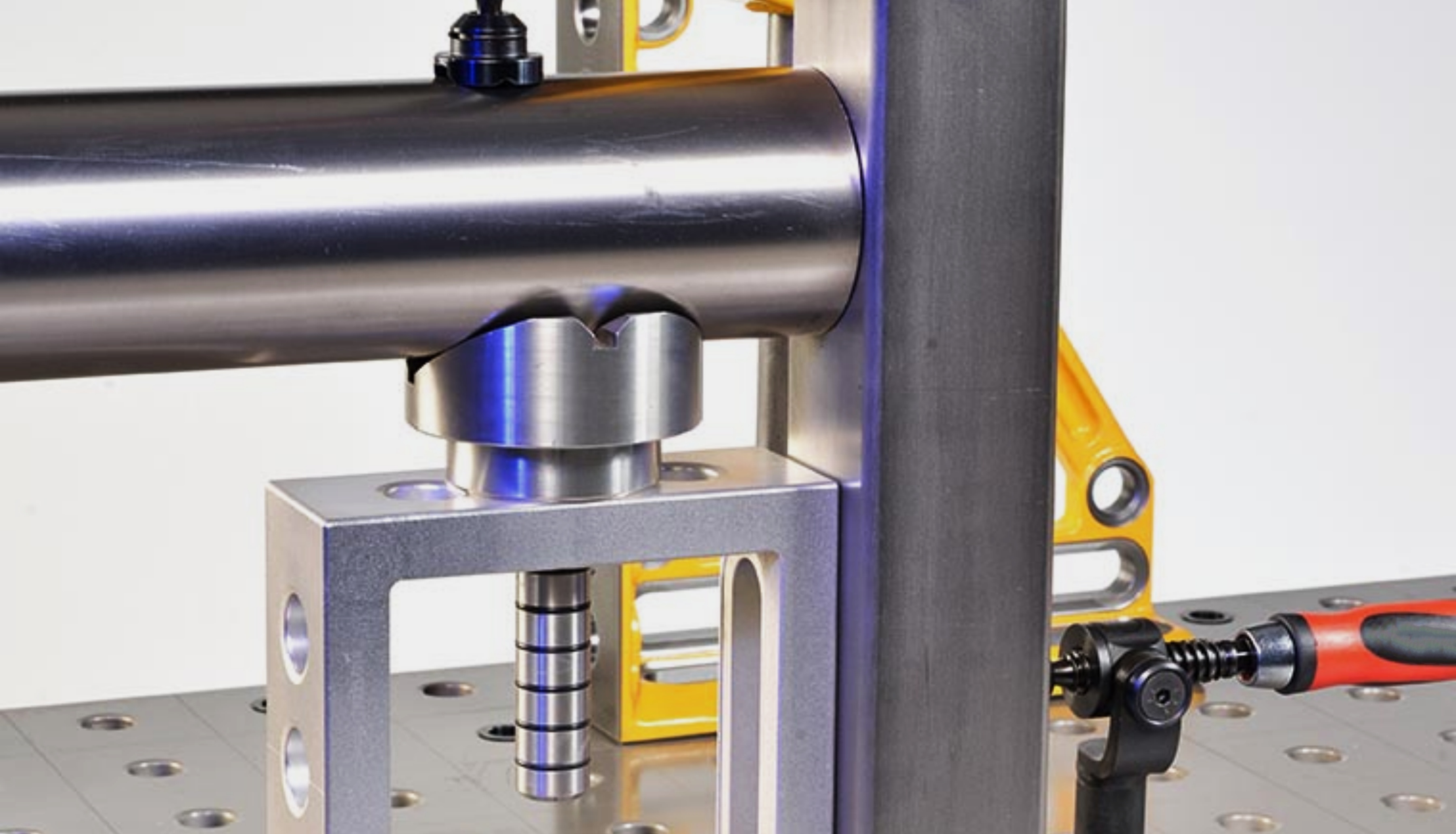

Automotive custom pipe and roll cage fabrication demands high precision positioning. Our V-Type Support Block secures roll cage tubing and fluid pipes during fit-up and welding. Its modular design lets builders construct complex multi-tube fixtures on a 3D welding table, ensuring accurate tube angles for automotive chassis assemblies.
Pipe Fabrication

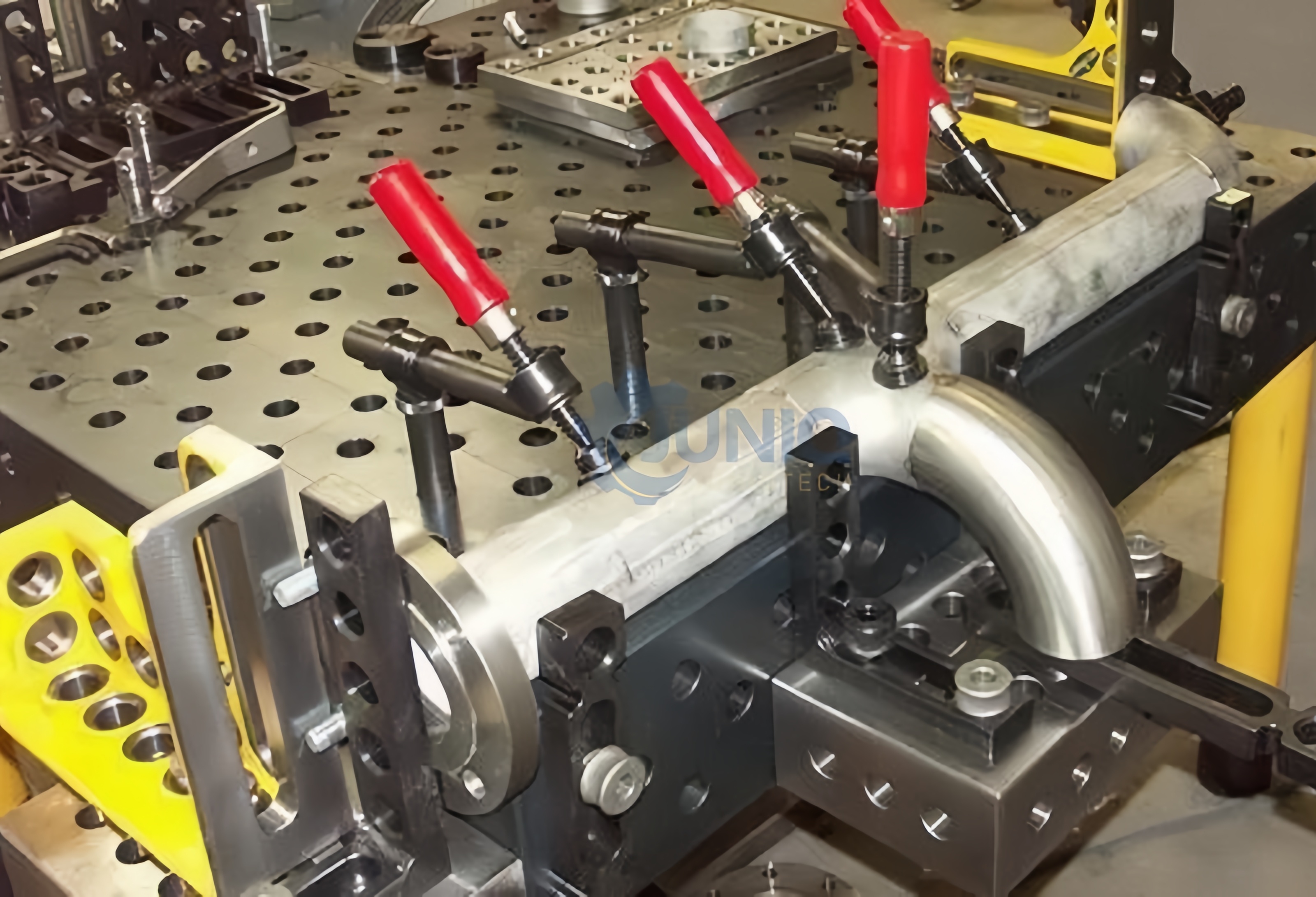

For industrial pipe fabrication projects, this V-type positioning block supports pipes of varying outer diameters by selecting the proper V-groove angle. It stabilizes heavy pipe sections during fit-up, tack welding and full weld runs. The block can be locked directly onto workpieces, enabling flexible multi-point support for long pipe runs and pre-assembled pipe spools.
Metal Assembly Jigs

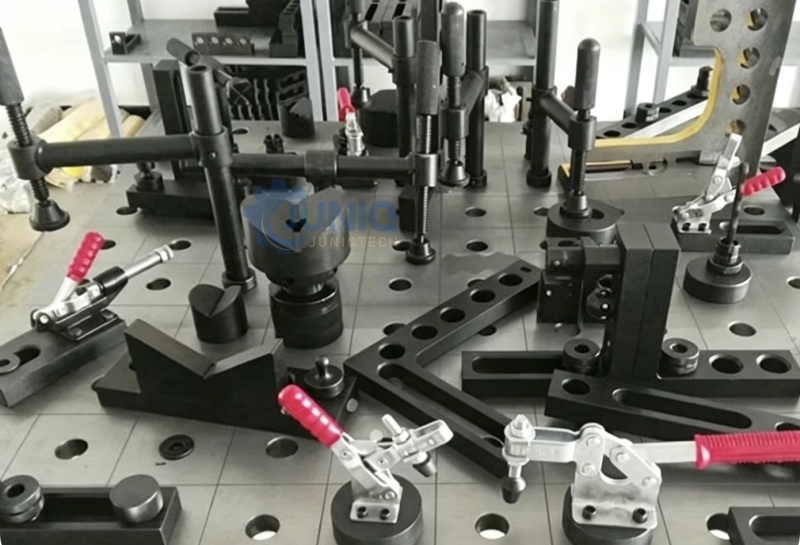

Build reusable metal assembly jigs with our V block. Whether you are designing temporary one-off jigs or permanent batch fixtures, these V-type support blocks can be combined with other 3D table accessories to locate round bars and tubular components. Screw-connected versions allow fast disassembly when your jig design needs modification.
Handrail Pipe Welding
Handrail manufacturing relies heavily on accurate tube positioning to ensure uniform slope and joint alignment. Our V-type positioning block holds handrail tubing steady during layout, tack welding and finishing welds. You can quickly reposition the V block to accommodate curved or segmented handrail pipe assemblies.
Other Products of JUNIQ pRECISION
Tailored Welding Fixtures Solutions
We provide customized welding fixtures and clamps for metal fabrication applications.
Send us your machine specifications, belt dimensions, workpiece material, or product drawings to discuss a suitable abrasive belt solution.
Customization Options
- ✓Height,Width and length
- ✓Size
- ✓Material
- ✓LOGO
- ✓Packaging
OEM / ODM Services
- ✓ Private label and branding
- ✓ Custom packaging design
- ✓ Performance formulation adjustments
- ✓ Sample and trial order support
- ✓ Competitive MOQ negotiation
How are Our Welding V Block Pad Shipped?
Inquiry & Specification
Contact our sales team with your required specifications including size, material and quantity. We will provide a detailed quotation within 24 hours.
Packaging
Standard industrial packaging ensures safe transit. Custom packaging and labeling available for OEM customers. Bulk orders shipped on pallets with protective wrapping.
Delivery & Lead Time
Standard production lead times range from 7–15 days depending on order quantity and specifications. Express shipping options available for urgent requirements.
Why Choose Our V-Type Support Block

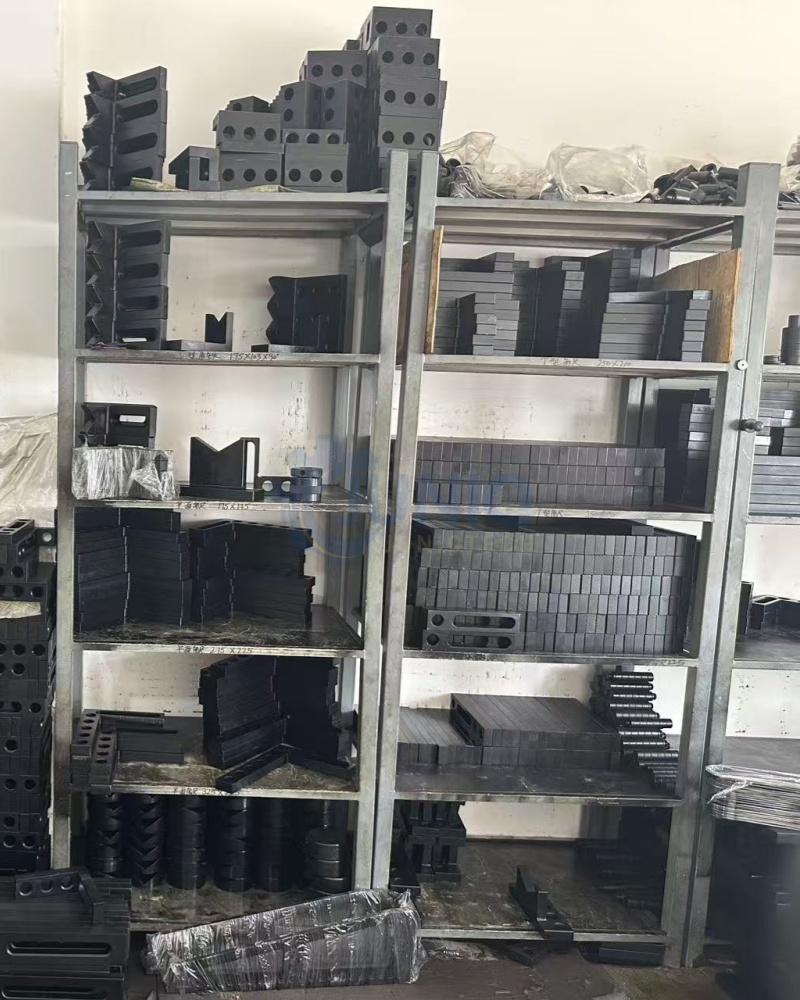

We are a professional manufacturer of 3D welding table accessories and welding fixtures, with deep experience supplying V block tube positioning parts for metal fabrication workshops, pipe fabricators and custom jig builders worldwide.
✅ Strict machining tolerance control for reliable repeat positioning
✅ Custom material, V-angle and size options available for OEM orders ✅ Pre-production samples available for testing before bulk purchase
✅ Compatibility verified for D16 and D28 standard 3D welding table systems
✅ Clear technical guidance for angle selection and fixture layout
✅ Fast lead time and competitive factory pricing for bulk orders
✅ Support technical drawings and CAD files for your fixture design
Ready to order?
👉 Request a quote now – we reply within 12 hours.
Send Inquiry
