Vertical Hold-down Toggle Clamp
Vertical Hold-down Toggle Clamp Direct Factory.Discover the Disc Base Vertical Hold-down Toggle Clamp for welding fixtures, machining, assembly, and industrial workholding. Contact Juniq Precision for specifications and customization options.
Features
- Vertical Handle Design
- Disc Base Mounting
- Stable Workpiece Holding
- Flexible Fixture Integration
- D28 Welding Table
Applications
Disc Base / Square Plate Vertical Hold-down Toggle Clamp
Reliable Industrial Solutions for Metal Work and Industrial Applications
ⓘ Important Notice: Due to the wide range of specifications available, not all options can be listed here. Please contact our sales engineers for the complete specification sheet and corresponding quotation.
Integrated into compatible worktables, welding fixtures

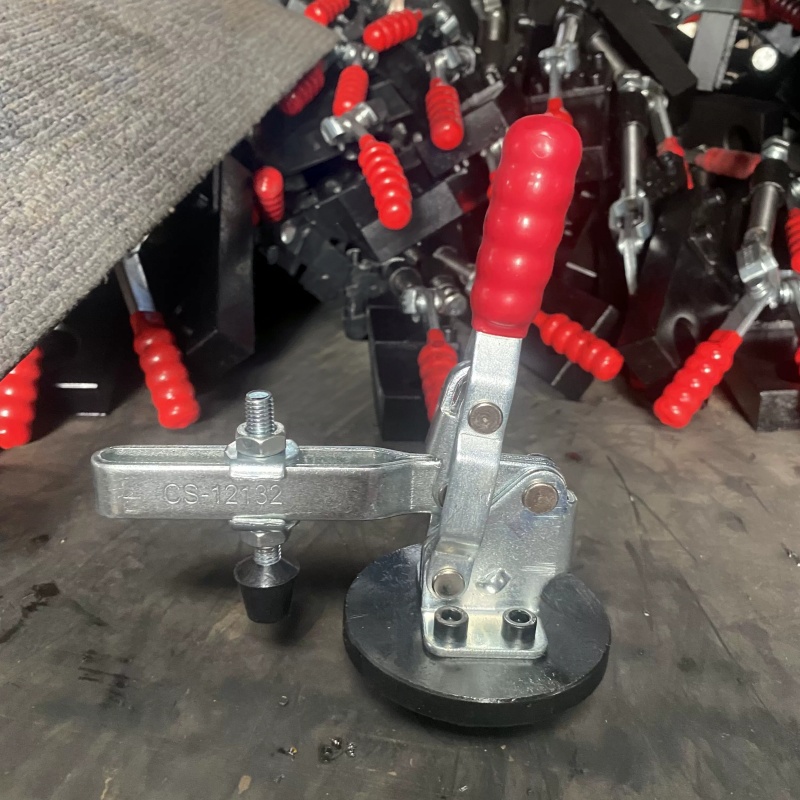

The Disc Base / Square Plate Vertical Hold-down Toggle Clamp is a manual workholding tool designed to hold workpieces securely during welding, machining, drilling, assembly, and metal fabrication. Its vertical handle mechanism allows operators to clamp and release components quickly, making it suitable for repetitive industrial operations.

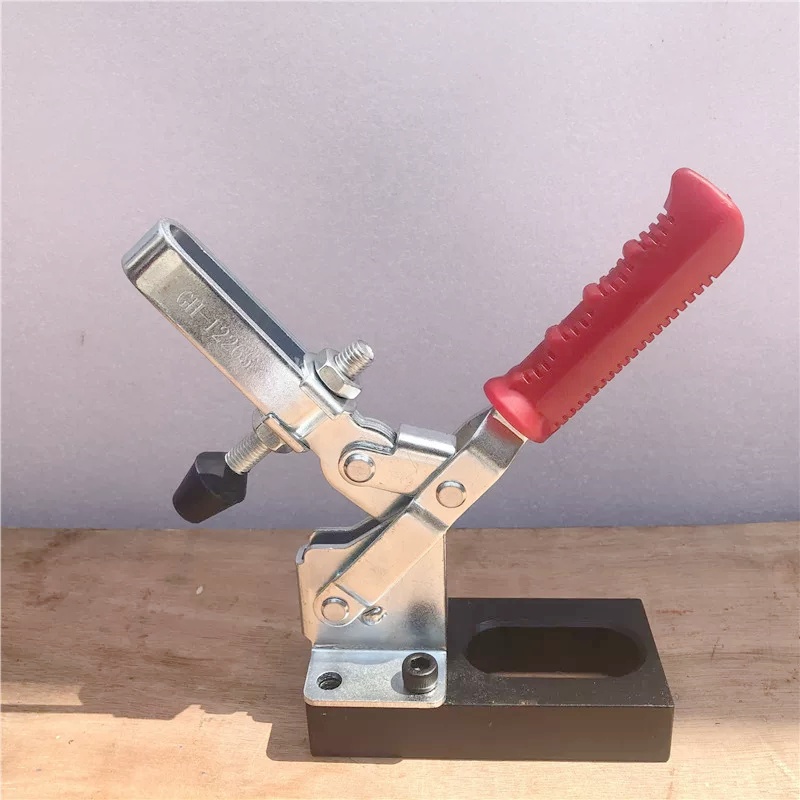

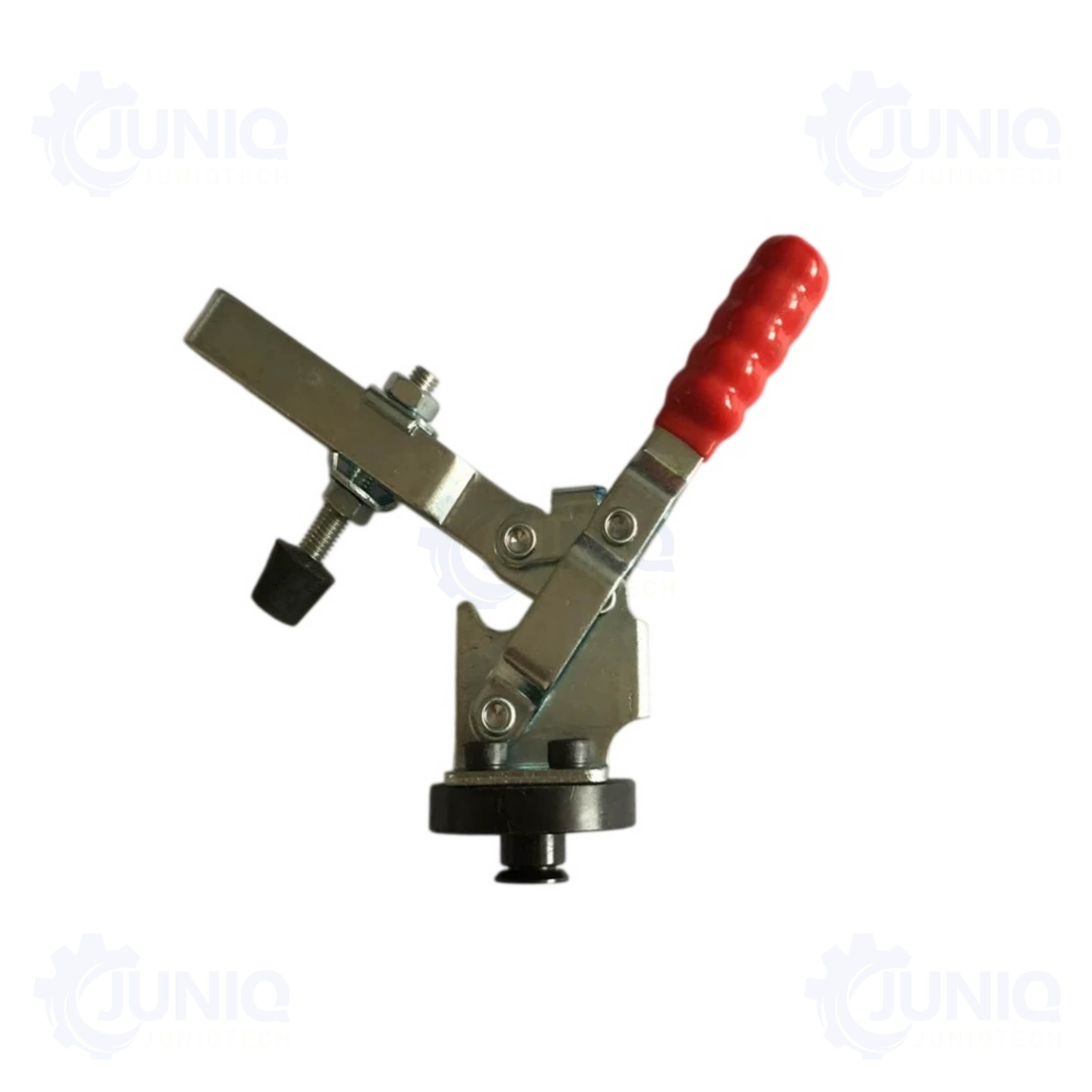

Available with a disc base or square plate base, this vertical hold-down toggle clamp offers mounting options for different fixture layouts.
Juniq Precision provides industrial clamping products and customized workholding solutions to meet different application and installation requirements.
Contact Us Now!
Email: info@juniqprecision.com
WhatsApp: +86 151 5226 0167
Website: www.juniqprecision.com
Design for quick and stabel clamping.
Two Base Options
Choose a disc base or square plate base according to the mounting space, fixture structure, and installation requirements of your project.
Quick Vertical Clamping
The vertical handle design allows convenient manual clamping and release, helping reduce repetitive operating time during production.
Stable Workpiece Holding
The hold-down mechanism helps keep components in position during suitable welding, assembly, and machining operations.
Compact Workholding Structure
The practical design makes the vertical toggle clamp suitable for integration into workholding fixtures and industrial equipment where installation space matters.
Flexible Fixture Integration
The clamp can be used in compatible welding tables, custom jigs, positioning fixtures, and assembly stations, subject to mounting and load requirements.
Why Choose Our Vertical Hold-down Toggle Clamp？
Flexible Mounting Options:
The disc base and square plate base provide alternative mounting configurations for different fixture designs. Select the appropriate version based on the available installation space and mounting pattern.
Improved Production Efficiency:
The manual toggle mechanism supports quick clamping and release, helping operators handle repetitive workpieces more efficiently.
Repeatable Workpiece Positioning:
When used with suitable locating stops and fixtures, the vertical hold-down toggle clamp helps maintain consistent workpiece positioning throughout the operation.
Suitable for Custom Workholding Systems:
This industrial toggle clamp can be incorporated into customized welding fixtures, assembly jigs, and metal fabrication equipment according to project specifications.
Specification Parameters of Vertical Hold-down Toggle Clamp
Please contact us to confirm the dimensions, locking mechanism and compatibility with your welding table system.
| Parameter | Specification | ||
|---|---|---|---|
| Product Name | Disc Base / Square Plate Vertical Hold-down Toggle Clamp | ||
| Clamping Type | Vertical Hold-down Toggle Clamp | ||
| Base Options | Disc Base / Square Plate Base | ||
| Operation | Manual | ||
| Clamping Direction | Vertical Hold-down | ||
| Main Function | Workpiece Holding and Positioning | ||
| Application | Welding, Machining, Assembly and Fabrication | ||
| MOQ | 1 Piece | ||
| Disc Base vs. Square Plate Base | |||
| Feature | Disc Base | Square Plate Base | |
| Base Shape | Round | Square | |
| Mounting Choice | For compatible round-base layouts | For compatible plate-style layouts | |
| Fixture Integration | Suitable for compatible workholding fixtures | Suitable for compatible workholding fixtures | |
| How to Choose | Check the base size and mounting requirements | Check the base size and mounting requirements | |
| Welding Table System | D28/D16 | D28/D16 | |
How to Install and Use the Toggle Clamp?
Installation and Use
Select the Base Type: Choose the disc base or square plate base that matches your fixture design.
Check the Mounting Surface: Confirm the installation space, mounting-hole pattern, and surface rigidity.
Install the Clamp: Secure the clamp using compatible mounting hardware and the specified installation method.
Position the Workpiece: Place the workpiece against the required locating surfaces.
Engage the Clamp: Operate the handle to apply the hold-down force and check that the workpiece remains stable.
Release Safely: Release the clamp before removing or repositioning the workpiece.
Video of our Vertical Hold-down Toggle Clamp
Want to know more about Vertical Hold-down Toggle Clamp for 3D Modular Welding Table?Pls take a look at the following video!
Feel free to contact our sales team for more details and price.
Where Vertical Hold-down Toggle Clamp Are Used？
Our Vertical Hold-down Toggle Clamp are widely used across metal fabrication, manufacturing and maintenance industries for good welding efficience.
Welding Fixtures and Welding Tables
The Disc Base / Square Plate Vertical Hold-down Toggle Clamp can be incorporated into suitable welding fixtures to hold metal parts in position during preparation and fabrication. The appropriate base type depends on the fixture design and mounting requirements.
Metal Fabrication and Machining
In compatible workholding setups, a vertical hold-down toggle clamp helps secure components during drilling, marking, cutting preparation, and other machining or fabrication processes.
Machining and Drilling
The Disc Base / Square Plate Toggle Clamp can be installed in suitable machining fixtures to hold workpieces during drilling, milling, and other machining processes, provided the clamping force meets the application requirements.
Industrial Assembly Lines
The Vertical Hold-down Toggle Clamp supports repetitive assembly tasks by keeping components in position during fitting, fastening, and inspection. Its manual operation allows quick clamping and release.
Custom Jigs and Workholding Systems
The Disc Base / Square Plate Vertical Hold-down Toggle Clamp is suitable for compatible custom jigs and workholding systems. The choice of base depends on the fixture design, mounting dimensions, and available installation space.
Automotive Parts Manufacturing
In automotive component production, the Vertical Hold-down Toggle Clamp can be incorporated into suitable assembly and inspection fixtures to hold metal components in position during repetitive manufacturing operations.
Customization and Ordering
Looking for a Vertical Hold-down Toggle Clamp for your modular welding table? We can discuss customized dimensions, materials and locking configurations based on your drawings, samples or application requirements.
Customization Options
- ✓ Material selection
- ✓ Custom sizes
- ✓ Diameter specifications
- ✓Private label and branding
- ✓Custom packaging design
Request a Quote
To help us identify the right product for your application, please provide:
-
✓Required dimensions and table hole size
-
✓Material and surface treatment requirements
-
✓Locking mechanism or reference photos
-
✓Estimated order quantity
-
✓Drawings or samples, if available
Our team can review your requirements and discuss a suitable solution.
How are Our Toggle Clamp Shipped?
Inquiry & Specification
Contact our sales team with your required specifications of Vertical Hold-down Toggle Clamp ,we can discuss suitable packaging and shipping arrangements according to product dimensions, order quantity and destination.
Packaging
Standard industrial packaging ensures safe transit. Custom packaging and labeling available for OEM customers. Bulk orders shipped on pallets with protective wrapping.
Delivery & Lead Time
Standard production lead times range from 7-15 days depending on order quantity and specifications. Express shipping options available for urgent requirements.
Why Choose JUNIQ Precision?
Vertical Hold-down Toggle Clamp
Juniq Precision supplies industrial workholding products, welding fixture components, and positioning accessories for a range of manufacturing and fabrication applications.
We understand that different projects require different mounting arrangements and operating conditions. Our team can help you check the specifications of the Disc Base / Square Plate Vertical Hold-down Toggle Clamp and discuss suitable options for your workholding setup.
For product enquiries, provide your required quantity, application, mounting dimensions, or technical drawing to help us identify a suitable configuration.
Welcome to contact us for inquiry!
Juniq Precision
-
Email: info@juniqprecision.com
-
Website: www.juniqprecision.com
-
Phone / WhatsApp: +86 151 5226 0167
