Wave Type Spring Washer – Precision-Engineered for Reliable Axial Load and Vibration Control

Looking for a reliable Wave Type Spring Washer to maintain consistent axial force, compensate for assembly tolerances, and improve the performance of your mechanical assemblies? Our precision-engineered wave spring washers provide controlled spring deflection, compact axial space requirements, and dependable load support for a wide range of industrial applications.

Whether you need standard dimensions, customized spring loads, specific material grades, or bulk production for OEM projects, we can help you find the right wave washer solution for your application.

Contact us today with your drawing, dimensions, or application requirements to request a quotation and technical support.

1. Product Overview

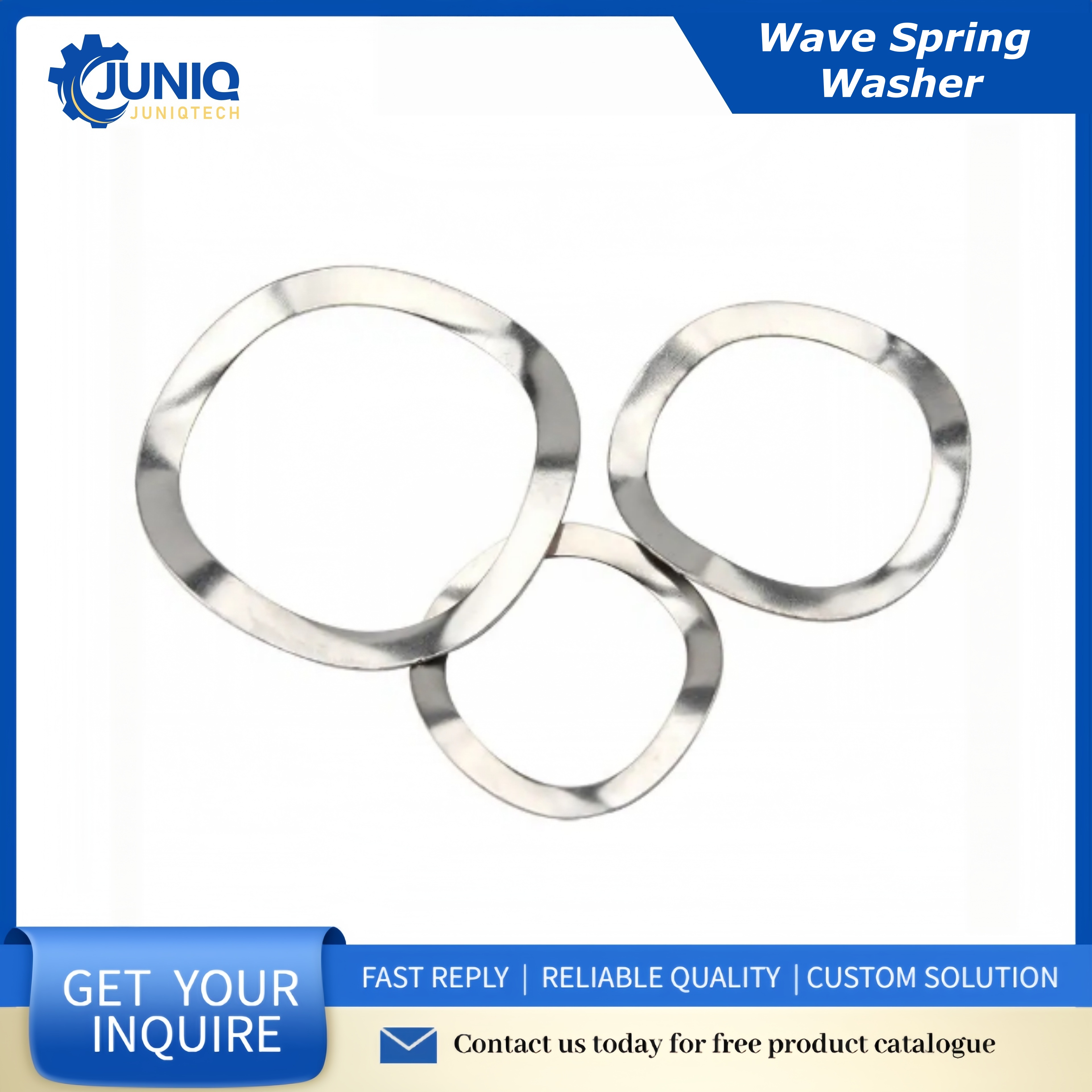

A Wave Type Spring Washer is a precision-formed metal washer featuring a wave-shaped profile that generates an axial spring force when compressed. Unlike a flat washer, its undulating geometry allows it to deflect under load, helping compensate for dimensional variations, maintain contact pressure, and reduce axial clearance in mechanical assemblies.

Wave spring washers are commonly used where installation space is limited but controlled spring action is required. Depending on the design, material, thickness, and number of waves, the washer can be engineered to deliver different load-deflection characteristics.

Our Wave Type Spring Washers are available in various dimensions, material options, surface finishes, and customized configurations to meet specific assembly requirements.

Key Product Information

• Product Name: Wave Type Spring Washer

• Product Type: Axial Spring Washer / Wave Washer

• Material Options: Carbon Steel, Stainless Steel, and Other Spring-Grade Materials

• Manufacturing Process: Precision Stamping, Forming, and Deburring

• Surface Treatment: Zinc Plating, Black Oxide, Passivation, or Other Specified Finishes

• Design Options: Single-Wave, Multi-Wave, and Custom Wave Profiles

• Supply Options: Standard Sizes, Custom Dimensions, and OEM/ODM Production

• Typical Supply Form: Individual Components for Industrial Assembly

Note: Actual material grades, finishes, dimensional tolerances, and load characteristics depend on the selected specification and confirmed order requirements.

2. Key Features of Our Wave Type Spring Washer

2.1 Controlled Axial Spring Force

The wave-shaped profile produces an elastic reaction force when compressed. The force-deflection behavior can be adjusted through material thickness, wave height, geometry, and material properties.

2.2 Compact Axial Design

A Wave Type Spring Washer provides spring action within a relatively small axial space, making it suitable for compact assemblies where conventional coil springs may not fit.

2.3 Compensation for Axial Tolerances

The washer can accommodate small dimensional variations and help maintain contact between mating components, depending on the available working deflection and applied load.

2.4 Multiple Material Options

Choose from carbon steel, stainless steel, and other suitable spring materials according to your required load, corrosion resistance, operating temperature, and service environment.

2.5 Precision-Formed Wave Geometry

Controlled forming helps achieve consistent wave profiles and repeatable assembly performance. Critical dimensions and spring characteristics can be specified according to project requirements.

2.6 Customizable Dimensions and Performance

We support customized inner diameter, outer diameter, material thickness, free height, wave count, and load-deflection requirements for OEM and industrial applications.

3. Advantages of Using a Wave Type Spring Washer

Improved Axial Contact

The spring action helps maintain contact between components and can reduce unwanted axial movement when correctly designed for the application.

Space-Saving Performance

Its low-profile construction offers an efficient alternative for applications that require axial compliance without a bulky spring mechanism.

Reduced Assembly Variation

By accommodating small axial tolerances, the washer can help improve assembly consistency and compensate for dimensional changes within its designed working range.

Flexible Engineering Options

Different materials, wave geometries, thicknesses, and heights allow engineers to select a washer that better matches the required force and available installation space.

Efficient High-Volume Supply

For repeat-production applications, defined specifications and inspection criteria help support consistent component quality and dependable replenishment.

Cost-Effective Component Integration

A properly selected wave washer can simplify compact spring-loading arrangements and help reduce the need for additional components in suitable designs.

Engineering note: A Wave Type Spring Washer is not automatically a substitute for a locking washer, a Belleville washer, or a dedicated anti-loosening device. Selection should be based on the actual mechanical function required.

4. Technical Specifications

The following table provides a practical specification framework for product selection and RFQ preparation. These are available design parameters, not a claim that every size or material is stocked as standard.

Example RFQ Specification

For a more accurate quotation, a customer can submit a specification such as:

• Inner Diameter (ID): 10.0 mm

• Outer Diameter (OD): 20.0 mm

• Material Thickness: 0.50 mm

• Free Height: 1.20 mm

• Material: Stainless Steel 301

• Surface Finish: Passivated

• Load Requirement: Specify the required force at a defined compressed height

• Quantity: 10,000 pieces

Important: The values above are an illustrative RFQ example only, not a verified standard product size or tested performance specification. Final dimensions, spring force, tolerances, and material suitability must be confirmed through engineering review and production validation.

Need a specific size or spring load? Send us your drawing or target dimensions, and we can evaluate the requirements for a suitable Wave Type Spring Washer solution.

5. Material and Surface Finish Options

Carbon Spring Steel

Carbon spring steel is suitable for applications requiring elastic recovery and controlled spring force. The specific grade and heat treatment should be selected according to the required mechanical performance.

Recommended for: General industrial machinery, mechanical assemblies, and applications with controlled environmental exposure.

Stainless Steel 301

Stainless Steel 301 is commonly used for formed spring components where good spring properties and improved corrosion resistance are required.

Recommended for: Compact mechanical assemblies, precision equipment, and applications where material flexibility and corrosion resistance are important.

Stainless Steel 304

Stainless Steel 304 offers good general corrosion resistance and is suitable for many industrial environments. Its spring performance depends on the selected condition, thickness, and forming process.

Recommended for: General equipment, selected electrical assemblies, and applications requiring corrosion-resistant components.

Surface Treatment Options

Depending on the base material and operating environment, available finishes may include:

• Zinc plating for selected carbon steel applications.

• Black oxide for suitable steel components where the finish is appropriate.

• Passivation for compatible stainless steel components.

• Other specified coatings or treatments subject to technical review.

The final finish should be selected with consideration for corrosion exposure, dimensional changes, hydrogen embrittlement risk where applicable, and compatibility with mating components.

6. Applications of Wave Type Spring Washers

Industrial Machinery and Equipment

Used in selected mechanical assemblies to compensate for axial tolerances and maintain spring-loaded contact between components.

Automotive and Transportation Components

Suitable for engineered assemblies requiring compact axial spring action, subject to automotive material, durability, and validation requirements.

Electrical and Electronic Equipment

Used in selected switches, connectors, housings, and other assemblies where controlled axial contact or tolerance compensation is needed.

Pumps, Valves, and Fluid Equipment

Can provide axial compliance in appropriate assemblies where the material, temperature, pressure environment, and spring characteristics meet the design requirements.

Bearings and Rotating Assemblies

Used in selected designs to apply axial preload or accommodate small axial variations. Bearing-specific load and speed requirements must be evaluated before selection.

Industrial Automation

Suitable for compact mechanisms, actuators, and precision equipment that require controlled spring action within a limited installation space.

OEM Manufacturing and Component Assembly

An effective option for manufacturers seeking a repeatable, drawing-controlled spring washer component for series production.

7. How to Select the Right Wave Type Spring Washer

Choosing the correct washer involves more than matching the inner and outer diameters. The spring force, working deflection, installation space, and operating environment are equally important.

Step 1: Confirm the Installation Dimensions

Determine the required inner diameter, outer diameter, available axial height, and seating surface dimensions.

Step 2: Define the Required Spring Force

Specify the target force at the actual working deflection or compressed height. A washer with the correct dimensions may still be unsuitable if its spring force is too high or too low.

Step 3: Select the Material

Consider fatigue requirements, corrosion exposure, operating temperature, and elastic recovery.

Step 4: Confirm the Surface Finish

Choose a finish compatible with the base material, dimensional tolerances, and working environment.

Step 5: Evaluate the Load-Deflection Curve

For critical applications, request or establish load-deflection data at defined test conditions. Confirm that the intended working range avoids excessive deformation or permanent set.

Step 6: Validate the Assembly

Check the washer in the actual assembly or a representative test fixture, especially where preload, vibration, fatigue, or safety requirements are important.

Not sure which specification is suitable? Share your assembly drawing and operating conditions for a more targeted product recommendation.

8. Installation and Usage Instructions

Correct installation is essential for obtaining the intended spring performance.

1. Inspect the component: Check the washer for visible cracks, burrs, deformation, corrosion, or other damage before installation.

2. Clean the seating surfaces: Remove debris, oil, and contamination where required by the assembly specification.

3. Check the orientation: Install the washer according to the approved drawing or assembly instructions. Orientation may matter for certain geometries.

4. Position the washer correctly: Ensure that the washer sits evenly against the intended mating surface and is properly centered.

5. Apply the specified compression: Assemble the components to the designed working height or load. Avoid compressing the washer beyond its validated working range.

6. Verify assembly performance: Check axial clearance, contact pressure, or preload where these parameters are critical.

7. Inspect during maintenance: Replace components showing permanent deformation, cracking, corrosion, or loss of spring performance.

Important: Wave Type Spring Washers provide elastic axial loading, but they should not be assumed to prevent threaded fasteners from loosening under all vibration conditions. If fastener retention is the primary objective, evaluate a dedicated locking solution or an appropriate validated fastening design.

9. Manufacturing and Quality Control

For industrial buyers, consistent dimensions and predictable spring behavior are essential to reliable assembly performance.

Our production and quality requirements can be defined around the following checkpoints, subject to the agreed product specification:

• Incoming Material Verification: Confirm the material grade and applicable documentation.

• Tooling and Forming Control: Maintain the specified wave geometry and critical dimensions.

• Dimensional Inspection: Check inner diameter, outer diameter, thickness, free height, and other drawing-defined features.

• Visual Inspection: Examine the components for burrs, cracks, surface damage, and forming defects.

• Spring Performance Verification: Conduct load-deflection or related functional testing when required by the specification.

• Surface Finish Inspection: Verify the agreed finish and relevant coating requirements.

• Order Traceability: Define batch identification, inspection records, and documentation according to project needs.

Inspection methods, acceptance criteria, material certificates, and test reports should be agreed before production for critical or regulated applications.

10. Packaging and Shipping

We support packaging arrangements designed to protect wave washers from deformation, contamination, and transit damage.

Standard Packaging Options

• Bulk packaging for suitable high-volume industrial orders.

• Polybags or inner bags with cartons for organized component handling.

• Separated or compartmentalized packaging where required to reduce mixing or surface damage.

• Customer-specified labels, part numbers, batch numbers, and quantity identification.

• Custom packaging for OEM production and distribution requirements.

Shipping Support

Shipping arrangements can be selected according to order quantity, destination, delivery schedule, and customer preference.

Available arrangements may include express courier, air freight, and sea freight, subject to the shipment and destination requirements.

Before dispatch, the order specification, quantity, packaging requirements, and applicable shipping documentation should be confirmed.

Planning a bulk purchase? Contact us with your target quantity and delivery destination to discuss a suitable packaging and shipping arrangement.

11. Why Choose Us as Your Wave Type Spring Washer Supplier?

Application-Oriented Product Selection

We focus on matching dimensions, materials, and spring characteristics to the actual application rather than recommending a size based on dimensions alone.

Custom Manufacturing Support

Share a technical drawing, sample, or defined specification to discuss custom dimensions, wave geometry, and material options.

Clear Technical Communication

We can work with drawing-based requirements and agreed inspection criteria to help reduce misunderstandings during sourcing and production.

Flexible Order Specifications

Product configuration, packaging, documentation, and order quantities can be discussed according to project needs and manufacturing feasibility.

Quality Requirements Defined in Advance

Critical dimensions, surface finish, functional tests, and acceptance criteria can be agreed before production to support repeatable purchasing.

Support for OEM and Industrial Buyers

We welcome inquiries from machinery manufacturers, component assemblers, engineering companies, distributors, and industrial procurement teams.

Our goal is to help you source a Wave Type Spring Washer that fits your design requirements and purchasing plan.

Specific capabilities, certifications, production lead times, minimum order quantities, and quality documentation should be confirmed with our sales team before ordering.

12. Frequently Asked Questions (FAQ)

Q1: What is a Wave Type Spring Washer used for?

A Wave Type Spring Washer generates axial spring force when compressed. It is commonly used to compensate for small axial tolerances, maintain contact pressure, apply preload in suitable assemblies, and accommodate dimensional variations within a compact space.

Q2: What is the difference between a wave washer and a flat washer?

A flat washer primarily provides a bearing surface and distributes contact pressure. A wave washer has a formed undulating profile that adds elastic deflection and axial spring action.

Q3: How do I choose the correct inner diameter and outer diameter?

The inner diameter should suit the shaft, fastener, or locating feature, while the outer diameter must fit the available seating surface. Also consider thickness, free height, compressed height, and the required spring load.

Q4: Can you manufacture custom Wave Type Spring Washers?

Custom manufacturing can be discussed based on your drawing, sample, or technical specification. Feasibility depends on the dimensions, material, geometry, tooling requirements, quantity, and required performance.

Q5: Which material is best for a Wave Type Spring Washer?

There is no single best material for every application. Carbon spring steel may suit applications prioritizing spring performance, while stainless steel grades such as 301 or 304 may be appropriate where corrosion resistance is important. Final selection should consider load, fatigue, temperature, and the operating environment.

Q6: Can a Wave Type Spring Washer prevent bolts from loosening?

Not reliably in every application. A wave washer can provide axial spring force, but it should not be treated as a universal anti-loosening device. Fastener retention must be evaluated based on the joint design, vibration conditions, preload, and applicable testing.

Q7: How can I determine the required spring load?

Define the target force at a specific compressed height or deflection. If the load is critical, request a load-deflection curve or agree on a test method and acceptance range before production.

Q8: Are Wave Type Spring Washers suitable for high-temperature applications?

Suitability depends on the material grade, heat treatment, surface finish, temperature exposure, and required spring retention. Provide the operating temperature and load conditions for a more appropriate material assessment.

Q9: What information should I provide when requesting a quotation?

For a faster and more accurate quotation, provide:

• Product drawing or sample.

• Inner diameter, outer diameter, and thickness.

• Free height or working height.

• Material and surface finish.

• Required spring load and working deflection, if applicable.

• Order quantity and estimated annual demand.

• Application, operating environment, and destination.

Q10: Can I order samples before mass production?

Sample availability can be discussed based on the product specification, tooling status, and order requirements. For customized projects, sample approval before mass production is a useful way to verify dimensions and assembly fit.

Q11: What is the minimum order quantity and lead time?

MOQ and lead time depend on the selected specification, material availability, tooling requirements, order quantity, and production schedule. Contact our team with your requirements for a project-specific quotation.

Q12: What quality documents can you provide?

Available documents should be confirmed for each order. Depending on the project and agreed requirements, documentation may include dimensional inspection reports, material certificates, batch identification, and specified functional test results.

13. Request a Quote for Wave Type Spring Washers

Need a dependable Wave Type Spring Washer for your next production run?

Whether you are sourcing standard components or developing a customized spring washer for an OEM assembly, our team is ready to review your requirements and discuss a suitable solution.

Send us your drawing, target dimensions, material requirements, and estimated order quantity. We can then review the specification, clarify any technical details, and prepare a quotation based on the confirmed requirements.

Request Your Quote Today

• Custom dimensions and material options.

• Technical review based on your drawing or sample.

• Bulk supply and OEM project discussions.

• Packaging and shipping arrangements tailored to your order.

Looking for a reliable Wave Type Spring Washer supplier? Contact us today to discuss your project and move one step closer to the right spring washer solution.
