Belleville Spring Washer Manufacturer & Supplier | Custom Disc Springs in Multiple Materials

Looking for a reliable Belleville Spring Washer manufacturer and supplier? We provide customized Belleville spring washers, also known as disc springs or conical spring washers, for industrial fastening systems, heavy machinery, automotive components, energy equipment, and demanding engineering applications.

Available material options include 51CrV4 alloy spring steel, 60Si2MnA spring steel, Ck67 / 65Mn high-carbon spring steel, 17-4 PH stainless steel, 17-7 PH stainless steel, 316 stainless steel, Inconel alloys, and beryllium copper, subject to product design and manufacturing feasibility.

From economical spring steel washers to corrosion-resistant stainless steel disc springs and specialized high-temperature or electrically conductive solutions, we help customers select suitable materials according to load, deflection, temperature, corrosion exposure, and application requirements.

Need a custom Belleville spring washer? Send us your technical drawing, material specification, required spring force, or sample reference to discuss your project and request a quotation.

1. Product Overview

Belleville Spring Washer – Compact Design, Reliable Spring Force

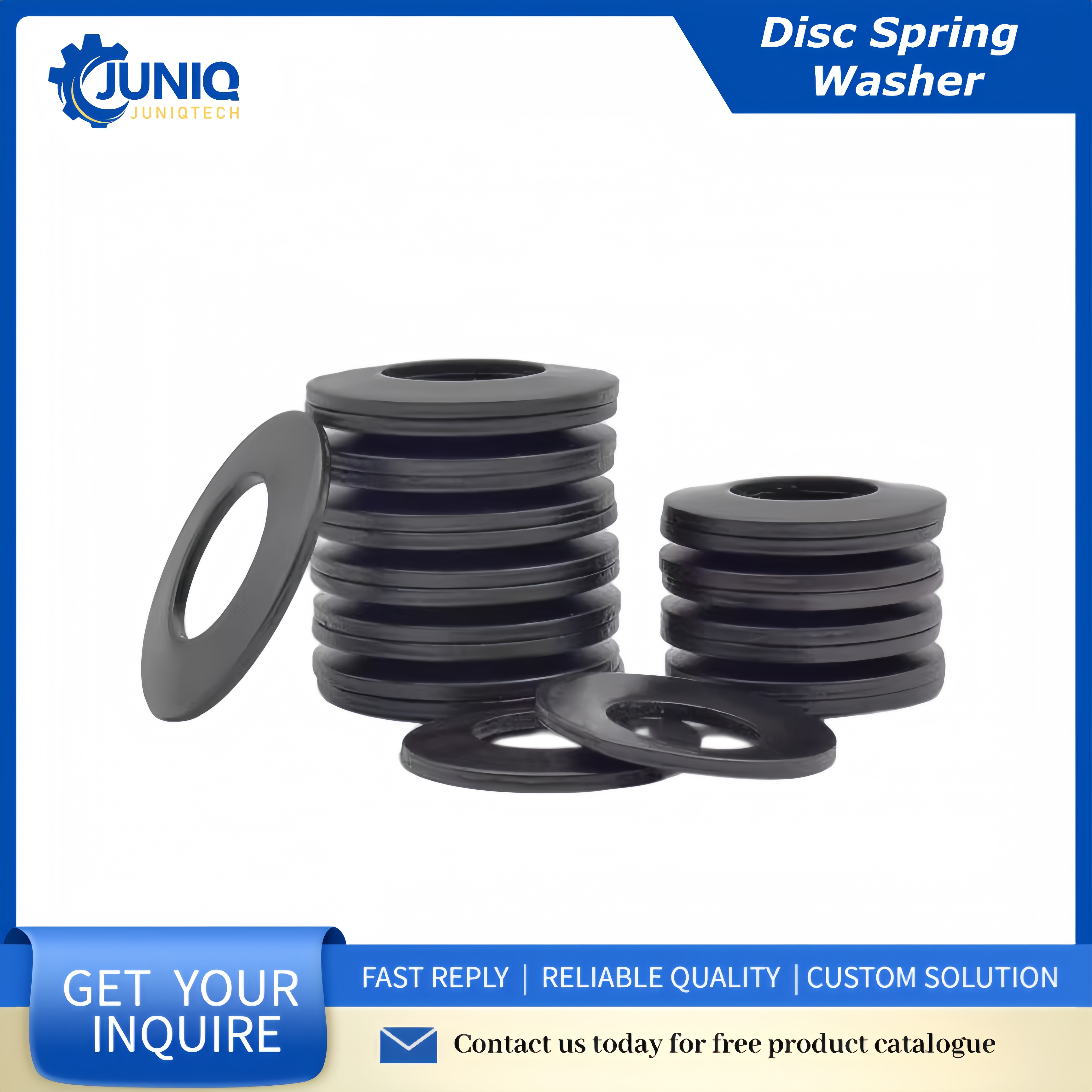

A Belleville Spring Washer is a conical disc-shaped spring component that generates axial force when compressed. Its unique geometry enables it to deliver substantial spring force within a relatively small installation space.

Compared with conventional flat washers, Belleville spring washers provide elastic deflection and can help maintain clamping force, compensate for limited joint settlement, and accommodate small dimensional changes in properly designed assemblies.

Depending on the application, Belleville washers can be manufactured from alloy spring steel, high-carbon spring steel, stainless steel, nickel-based superalloys, or suitable copper alloys.

Our material selection options include 51CrV4, 60Si2MnA, Ck67, 65Mn, 17-4 PH, 17-7 PH, 316 stainless steel, Inconel alloys, and beryllium copper.

Each material offers different advantages in terms of mechanical strength, fatigue performance, corrosion resistance, temperature capability, electrical conductivity, and cost. The appropriate grade should be selected according to the actual working conditions rather than material name alone.

Whether you need standard disc springs, customized dimensions, specific load-deflection characteristics, or special material requirements, we can evaluate your specifications and discuss a suitable manufacturing solution.

Looking for a Belleville spring washer in 51CrV4, 60Si2MnA, 17-7 PH, or another specified material? Contact us with your requirements for a tailored quotation.

2. Key Features of Belleville Spring Washers

High Spring Force in a Compact Space

The conical disc design provides substantial axial spring force relative to its installation height, making Belleville washers suitable for assemblies with limited available space.

Reliable Preload Support

When correctly designed and installed, Belleville spring washers can help maintain bolt preload and compensate for limited settlement or dimensional changes in mechanical joints.

Engineered Load-Deflection Performance

Spring characteristics can be adjusted through outer diameter, inner diameter, thickness, cone height, material properties, and stacking arrangement.

Flexible Stacking Configurations

Belleville washers can be installed individually or in stacks to modify the overall spring response.

• Series stacking: Generally increases total deflection at a given force.

• Parallel stacking: Generally increases spring force at a similar deflection.

• Combined stacking: Allows engineers to balance force and deflection according to assembly requirements.

Stack friction, contact conditions, dimensional tolerances, and alignment should be considered when evaluating the performance of a stack.

Multiple Material Choices

Material options cover common alloy spring steels, economical high-carbon spring steels, corrosion-resistant stainless steels, nickel-based alloys, and specialized copper alloys.

Custom Dimensions and Finishes

Inner diameter, outer diameter, thickness, free height, hardness requirements, surface finish, and inspection criteria can be specified according to the agreed drawing or applicable standard.

3. Advantages of Our Belleville Spring Washers

Material Selection for Different Working Conditions

From 51CrV4 and 60Si2MnA spring steels to 316 stainless steel and Inconel alloys, material selection can be evaluated according to load, fatigue, temperature, and environmental requirements.

Compact Load-Bearing Design

Belleville washers can deliver significant axial force within a small installation height, making them useful for engineered fastening systems and space-constrained mechanical assemblies.

Support for Fatigue-Sensitive Applications

Suitable materials, correct heat treatment, appropriate stress levels, and controlled manufacturing are important for disc springs exposed to repeated loading.

Corrosion-Resistant Options

Grades such as 17-4 PH, 17-7 PH, and 316 stainless steel can be considered where corrosion resistance is important. The best choice depends on the chemical environment, stress conditions, temperature, and required mechanical properties.

High-Temperature Material Options

Selected Inconel grades can be evaluated for applications involving elevated temperatures, oxidation, or demanding operating environments. The exact alloy and operating temperature must be confirmed for each design.

Specialized Electrical and Non-Magnetic Applications

Beryllium copper can be considered where electrical conductivity and non-magnetic properties are required, subject to spring stress, fatigue, and manufacturing requirements.

Customized Manufacturing and Procurement

Product dimensions, material grade, heat treatment, load-deflection requirements, surface treatment, packaging, and inspection documentation can be discussed according to your project.

Need help selecting the right material? Share your operating temperature, corrosion exposure, target spring force, and expected loading cycle for a more focused technical evaluation.

4. Technical Specifications of Belleville Spring Washers

Our Belleville spring washers can be supplied according to applicable standards or customized drawings. Final specifications depend on the selected material, geometry, heat treatment, operating conditions, and required spring performance.

4.1 General Product Specifications

Final dimensions, tolerances, material condition, hardness, and load-deflection performance should be confirmed against the agreed drawing or applicable standard.

4.2 Material Selection Guide

Material selection note: These are general selection guidelines, not universal performance guarantees. Final suitability depends on the exact material grade, heat treatment or material condition, disc geometry, operating stress, temperature, corrosion exposure, and applicable technical specifications.

4.3 Material Details and Selection Recommendations

51CrV4 Alloy Spring Steel

51CrV4 is an alloy spring steel commonly used in spring applications requiring good strength and fatigue performance when properly heat-treated and manufactured.

It can be considered for Belleville spring washers used in industrial machinery, fastening systems, and other applications involving repeated loading.

60Si2MnA Spring Steel

60Si2MnA is a silicon-manganese spring steel grade that can be evaluated for disc spring applications requiring suitable elastic performance and strength after appropriate heat treatment.

It may be considered for industrial mechanical assemblies where its mechanical properties and operating conditions meet the design requirements.

Ck67 / 65Mn High-Carbon Spring Steel

Ck67 and 65Mn are high-carbon spring steel options that may provide a cost-effective solution for suitable disc spring designs.

They can be considered for applications where the required stress level, loading cycle, environmental exposure, and material condition are compatible with the intended service.

17-4 PH Stainless Steel

17-4 PH is a precipitation-hardening stainless steel that can provide high strength in appropriate heat-treated conditions. It is a candidate for selected mechanical applications where both strength and corrosion resistance are important.

Corrosion performance depends on the environment, heat treatment, stress condition, and component design.

17-7 PH Stainless Steel

17-7 PH stainless steel is commonly used in spring applications requiring high strength and corrosion resistance. It can be considered for Belleville spring washers where a suitable combination of spring performance and environmental resistance is needed.

Final spring properties depend on the material condition and processing route.

316 Stainless Steel

316 stainless steel offers good corrosion resistance in many wet and marine environments and in selected chemical applications.

However, 316 is not automatically suitable for every highly stressed spring design. Its mechanical properties and spring performance should be verified for the intended application.

Inconel Alloys

Inconel is a family of nickel-based alloys rather than a single material grade. Selected grades may be suitable for high-temperature service, oxidation resistance, or aggressive environments.

The exact alloy should be specified according to operating temperature, applied stress, corrosion exposure, and required mechanical performance.

Beryllium Copper

Beryllium copper alloys offer useful electrical conductivity and non-magnetic properties. Selected grades can be evaluated for specialized spring components used in electrical or electronic equipment.

Because beryllium-containing materials require appropriate occupational health and manufacturing controls, processing and handling requirements must be considered. Suitability for a disc spring should be confirmed according to the required stress, fatigue life, and production method.

4.4 Load and Deflection Performance

The load-deflection characteristics of a Belleville spring washer depend on:

• Inner diameter and outer diameter

• Material thickness and cone height

• Material properties and heat treatment

• Required working deflection

• Operating load and installation height

• Stacking configuration and contact conditions

For accurate selection, spring force should be specified at a defined deflection rather than as an isolated load value.

If your application requires a specific clamping force, provide the target force in N or kN together with the available installation height and operating conditions. This information helps evaluate the appropriate disc spring geometry and material.

4.5 Applicable Standards

Depending on the product design and procurement requirements, Belleville spring washers may be specified according to:

• DIN 2092: Design and calculation of disc springs.

• DIN 2093: Applicable dimensional and quality requirements for disc springs.

• Customer drawings and technical specifications.

• Agreed material, heat-treatment, surface-finish, and inspection requirements.

The applicable standard and edition should be confirmed before ordering. Custom designs do not automatically qualify as DIN-compliant products.

5. Material and Surface Treatment Options

Choosing the correct material and surface treatment is essential for achieving the required spring performance, corrosion resistance, and service life.

Alloy and High-Carbon Spring Steels

Available material options may include 51CrV4, 60Si2MnA, Ck67, and 65Mn, subject to the product design and manufacturing requirements.

These grades can be considered for applications where their mechanical properties, heat-treatment conditions, and fatigue performance are suitable.

Precipitation-Hardening Stainless Steels

17-4 PH and 17-7 PH stainless steels can be evaluated for selected applications requiring a combination of strength and corrosion resistance.

The material condition and heat treatment must be specified according to the required spring characteristics.

316 Stainless Steel

316 stainless steel can be considered for wet, marine, and selected chemical environments. The actual corrosion resistance depends on exposure conditions, temperature, stress, and the specific chemical medium.

Inconel Alloys

Selected Inconel grades can be evaluated for high-temperature or otherwise demanding applications. The alloy grade should be selected based on the actual operating temperature, stress, and environmental conditions.

Beryllium Copper

Beryllium copper may be considered for selected applications requiring electrical conductivity and non-magnetic characteristics. Manufacturing, heat treatment, and workplace handling controls must be appropriate for the selected grade and process.

Surface Treatment Options

Depending on the material and application, available options may include:

• Plain or untreated surface

• Phosphate-based treatment for compatible steel grades

• Zinc-based or other specified protective coatings for suitable steel components

• Passivation for compatible stainless steel components

• Other customer-specified surface protection systems

Not every finish is compatible with every material. Coating selection should consider corrosion resistance, dimensional changes, operating temperature, hydrogen embrittlement risks for susceptible high-strength steels, and any relevant industry requirements.

Need a corrosion-resistant or high-temperature Belleville spring washer? Tell us your working environment and temperature range so we can evaluate suitable material options.

6. Applications of Belleville Spring Washers

Belleville spring washers are used across a wide range of industries where controlled axial force and compact installation are required.

Industrial Machinery and Equipment

Used in selected bolted assemblies, machine components, and mechanical equipment to help maintain preload and accommodate small dimensional changes.

Automotive and Transportation

Applied in suitable transmission components, clutch systems, fastening assemblies, and other mechanisms requiring compact spring elements.

Power Generation and Energy

Used in selected turbine, generator, electrical equipment, and power-system assemblies where preload stability and thermal movement must be considered.

Oil, Gas, and Petrochemical Equipment

Suitable for engineered fastening systems and mechanical assemblies when material compatibility, corrosion resistance, temperature, and industry-specific requirements are verified.

Heavy Equipment and Construction Machinery

Used in demanding mechanical fastening applications where compact axial force and joint stability are important.

Marine and Offshore Equipment

Selected stainless steel grades, including 316 where appropriate, may be considered for applications involving marine exposure. Actual performance depends on salinity, temperature, crevice conditions, stress, and the required service life.

Aerospace and High-Temperature Systems

Selected Inconel alloys can be evaluated for specialized spring components used in high-temperature or demanding aerospace-related applications. Material certification, design validation, and applicable industry requirements should be confirmed.

Electrical and Electronic Equipment

Beryllium copper may be considered for specialized spring components where electrical conductivity and non-magnetic properties are important.

Pumps, Valves, and Fluid Systems

Used in suitable mechanical assemblies and bolted connections exposed to vibration, temperature changes, or dimensional settlement.

Have a special operating environment or material requirement? Send us your application details to discuss a customized Belleville spring washer solution.

7. How to Use and Install Belleville Spring Washers

Correct installation is essential to obtain the intended spring force and service performance.

Step 1: Confirm the Required Load

Determine the target clamping force, working deflection, and available installation space.

Step 2: Check the Dimensions

Verify the inner diameter, outer diameter, thickness, free height, and contact surfaces against the assembly drawing.

Step 3: Select the Material

Choose a material according to required spring performance, loading cycle, temperature, corrosion exposure, electrical requirements, and applicable standards.

Step 4: Select the Correct Stacking Arrangement

Choose a single disc or an appropriate series, parallel, or combined stack according to the engineering design.

Step 5: Install in the Specified Orientation

Follow the approved assembly drawing and required washer orientation. The cone profile and contact arrangement affect the spring response.

Step 6: Follow the Specified Tightening Procedure

Use the specified tightening method and preload or torque requirements. A generic tightening torque should not be assumed to produce the required clamping force in every assembly.

Step 7: Inspect the Final Assembly

Verify installation height, alignment, and relevant fastening parameters. Avoid unintended flattening, overloading, or operation beyond the approved deflection range.

Installation note: Belleville spring washers are not a universal solution to every vibration or loosening problem. Their effectiveness depends on joint design, preload, surface conditions, loading, and correct engineering selection.

8. Manufacturing and Quality Control

Consistent product quality depends on material verification, manufacturing accuracy, heat-treatment control, and inspection against agreed requirements.

Material Verification

Material grade and traceability documentation can be specified according to the purchase order, including the selected alloy spring steel, stainless steel, nickel-based alloy, or copper alloy where applicable.

Dimensional Inspection

Critical dimensions such as inner diameter, outer diameter, thickness, and free height can be checked against the agreed drawing or standard.

Heat Treatment and Hardness

Heat-treatment and hardness requirements are defined according to the selected material grade, material condition, and product specification.

Surface Finish Inspection

Surface condition, coating type, and finish requirements are confirmed according to the agreed specification.

Load-Deflection Verification

For applications requiring performance validation, load testing can be specified at defined deflection points and acceptance criteria.

Quality Documentation

Inspection records, material certificates, and other quality documents can be discussed and specified before production.

Specific inspection capabilities, certifications, test methods, and documentation availability should be confirmed for each project.

9. Custom Belleville Spring Washer Manufacturing

Standard sizes may not meet every installation or load requirement. We support project-based customization according to customer drawings and technical specifications.

Customization requirements may include:

• Inner diameter and outer diameter

• Material thickness and cone height

• Free height and working deflection

• Required spring force at a specified deflection

• Material grade, including 51CrV4, 60Si2MnA, Ck67, 65Mn, 17-4 PH, 17-7 PH, 316 stainless steel, selected Inconel grades, and beryllium copper

• Heat-treatment and hardness requirements

• Surface finish and corrosion protection

• Single-disc or stacked configuration

• Inspection criteria and packaging requirements

What Information Is Needed for a Quote?

To help us evaluate your request efficiently, please provide as many of the following details as available:

1. Product dimensions: Inner diameter, outer diameter, thickness, and free height.

2. Material: Required grade, such as 51CrV4, 60Si2MnA, 65Mn, 17-7 PH, 316 stainless steel, a specified Inconel grade, or beryllium copper.

3. Performance requirements: Target load, working deflection, and installation height.

4. Operating conditions: Temperature, corrosion exposure, loading cycle, and electrical requirements where applicable.

5. Standard or drawing: DIN specification, customer drawing, or sample reference.

6. Order quantity: Prototype, trial order, or estimated production demand.

7. Delivery requirements: Destination country, packaging requirements, and requested delivery schedule.

If you do not have a complete technical drawing, basic dimensions, a sample reference, or an explanation of the application can be a useful starting point.

Send Your Drawing Today — Get a Tailored Belleville Spring Washer Quote.

10. Packaging and Shipping

We understand that secure packaging, clear product identification, and reliable shipping arrangements are important for industrial buyers.

Standard Packaging

Belleville spring washers can be packed in suitable inner bags, cartons, or other protective packaging according to product dimensions, quantity, and handling requirements.

Bulk Packaging

For larger orders, bulk packaging and carton-level identification can be arranged to simplify receiving, inventory management, and production-line handling.

Customized Packaging

Subject to agreement, packaging requirements may include:

• Product labels and part numbers

• Size, material, and batch identification

• Customer-specific packaging instructions

• Inner packaging and outer carton specifications

• Palletized shipment for suitable bulk orders

Shipping Options

Available shipping methods depend on order quantity, destination, delivery schedule, and agreed trade terms. Air freight, sea freight, and express courier services can be evaluated according to the order.

Packaging marks, shipping documents, destination requirements, and applicable export documentation should be confirmed before dispatch.

Planning a bulk order? Share your required material, estimated quantity, and destination country to discuss suitable packaging and shipping arrangements.

11. Why Choose Us as Your Belleville Spring Washer Supplier?

Multiple Material Options

We can evaluate a range of material requirements, including 51CrV4, 60Si2MnA, Ck67, 65Mn, 17-4 PH, 17-7 PH, 316 stainless steel, selected Inconel grades, and beryllium copper, subject to product feasibility.

Application-Oriented Product Selection

We consider the relationship between disc geometry, material properties, load, deflection, and installation conditions to help identify a suitable component for your application.

Custom Manufacturing Support

Dimensions, material specifications, heat treatment, surface finish, and inspection requirements can be discussed according to your drawings and project needs.

Clear Technical Communication

We aim to clarify critical parameters before production, including applicable standards, tolerances, load requirements, and acceptance criteria.

Flexible Procurement Support

Whether you need a prototype, a trial order, or a larger production batch, we can discuss the relevant manufacturing and supply requirements.

Export Packaging Coordination

Product identification, packaging requirements, and shipping arrangements can be coordinated to support overseas procurement.

Support from Inquiry to Delivery

Our goal is to help buyers move from initial technical evaluation to specification confirmation, quotation, production planning, and shipment coordination.

Looking for a long-term Belleville spring washer supplier? Share your material preference, drawing, and purchasing requirements with us to discuss a suitable supply solution.

12. Frequently Asked Questions (FAQ)

Q1: What is a Belleville spring washer?

A Belleville spring washer is a conical disc-shaped spring component that generates axial force when compressed. It is commonly used to support preload control and compensate for limited dimensional changes in mechanical assemblies.

Q2: What materials are available for Belleville spring washers?

Material options may include 51CrV4 alloy spring steel, 60Si2MnA spring steel, Ck67 and 65Mn high-carbon spring steels, 17-4 PH and 17-7 PH stainless steels, 316 stainless steel, selected Inconel grades, and beryllium copper. Availability and suitability depend on the required design and manufacturing specifications.

Q3: Which material is best for general industrial applications?

51CrV4 is a commonly considered alloy spring steel for suitable industrial applications involving repeated loading. However, the best choice depends on the required fatigue performance, spring geometry, heat treatment, operating environment, and cost target.

Q4: Is 60Si2MnA suitable for Belleville spring washers?

60Si2MnA can be considered for suitable disc spring applications where its mechanical properties, heat-treatment condition, and fatigue performance meet the engineering requirements.

Q5: What is the difference between 51CrV4 and 65Mn?

Both are spring steel options, but their compositions, processing requirements, and mechanical behavior differ. Material selection should be based on the required performance, applicable specification, manufacturing process, and working conditions rather than price alone.

Q6: What is the difference between 17-4 PH and 17-7 PH stainless steel?

Both are precipitation-hardening stainless steels, but they differ in composition, heat-treatment response, and typical spring applications. 17-7 PH is commonly associated with spring applications, while 17-4 PH is often considered where high strength and corrosion resistance are required. The final choice depends on the design and specified material condition.

Q7: Is 316 stainless steel suitable for marine environments?

316 stainless steel offers good corrosion resistance in many marine and wet environments. However, seawater exposure, crevices, deposits, temperature, and mechanical stress can affect performance. Material suitability should be reviewed for the actual operating environment.

Q8: Can Inconel be used for high-temperature Belleville spring washers?

Selected Inconel grades can be evaluated for high-temperature applications. The appropriate alloy depends on operating temperature, load, stress relaxation, oxidation, and other environmental conditions.

Q9: Can beryllium copper be used for spring washers?

Selected beryllium copper grades may be suitable for specialized spring components requiring electrical conductivity and non-magnetic properties. Mechanical performance, fatigue requirements, material condition, and safe manufacturing controls must be considered.

Q10: Can you manufacture custom Belleville spring washers?

Custom products can be evaluated according to customer drawings, dimensions, material, target load, deflection, and surface finish. Feasibility, tolerances, and performance requirements should be confirmed for each project.

Q11: Can Belleville washers be stacked?

Yes. Series arrangements generally increase total deflection, while parallel arrangements generally increase spring force at a similar deflection. Actual performance depends on disc geometry, contact conditions, friction, and the selected configuration.

Q12: Can Belleville spring washers prevent bolts from loosening?

They can help maintain preload and compensate for certain joint movements when properly designed and installed. However, they do not guarantee prevention of loosening under every vibration or dynamic loading condition.

Q13: Can you provide hardness and load-deflection test reports?

Testing requirements can be agreed during quotation. The availability and scope of hardness reports, load-deflection data, material certificates, and other quality documents should be confirmed for the specific order.

Q14: What information is required for a quotation?

Please provide your drawing or dimensions, required material grade, surface finish, target load and deflection, order quantity, operating conditions, and delivery destination. If some information is unavailable, send the details you have for an initial evaluation.

13. Request a Quote for Belleville Spring Washers

Find the Right Disc Spring for Your Application

Choosing the right Belleville spring washer involves more than matching the outer diameter. Material, thickness, cone height, working deflection, load requirements, and operating conditions all affect product performance.

Whether you need standard disc springs, custom Belleville washers, 51CrV4 or 60Si2MnA spring steel washers, high-carbon steel disc springs, stainless steel Belleville washers, Inconel disc springs, or beryllium copper spring components, we welcome your inquiry.

Contact us to discuss:

• Custom dimensions and technical drawings

• Material selection for your operating environment

• Required spring force and working deflection

• Heat treatment, hardness, and surface finish

• Sample evaluation and bulk orders

• Quality documentation and export packaging

Send us your drawing, target load, material grade, or sample reference to start your inquiry. The more clearly your requirements are defined, the easier it is to evaluate a suitable Belleville spring washer solution for your project.

Looking for a Reliable Belleville Spring Washer Manufacturer and Supplier?

Contact us today to discuss your application, confirm technical requirements, and request a customized quotation.

Get in Touch Now — Let's Find the Right Belleville Spring Washer Material for Your Project.
