✅Creates a Welded Threaded Connection

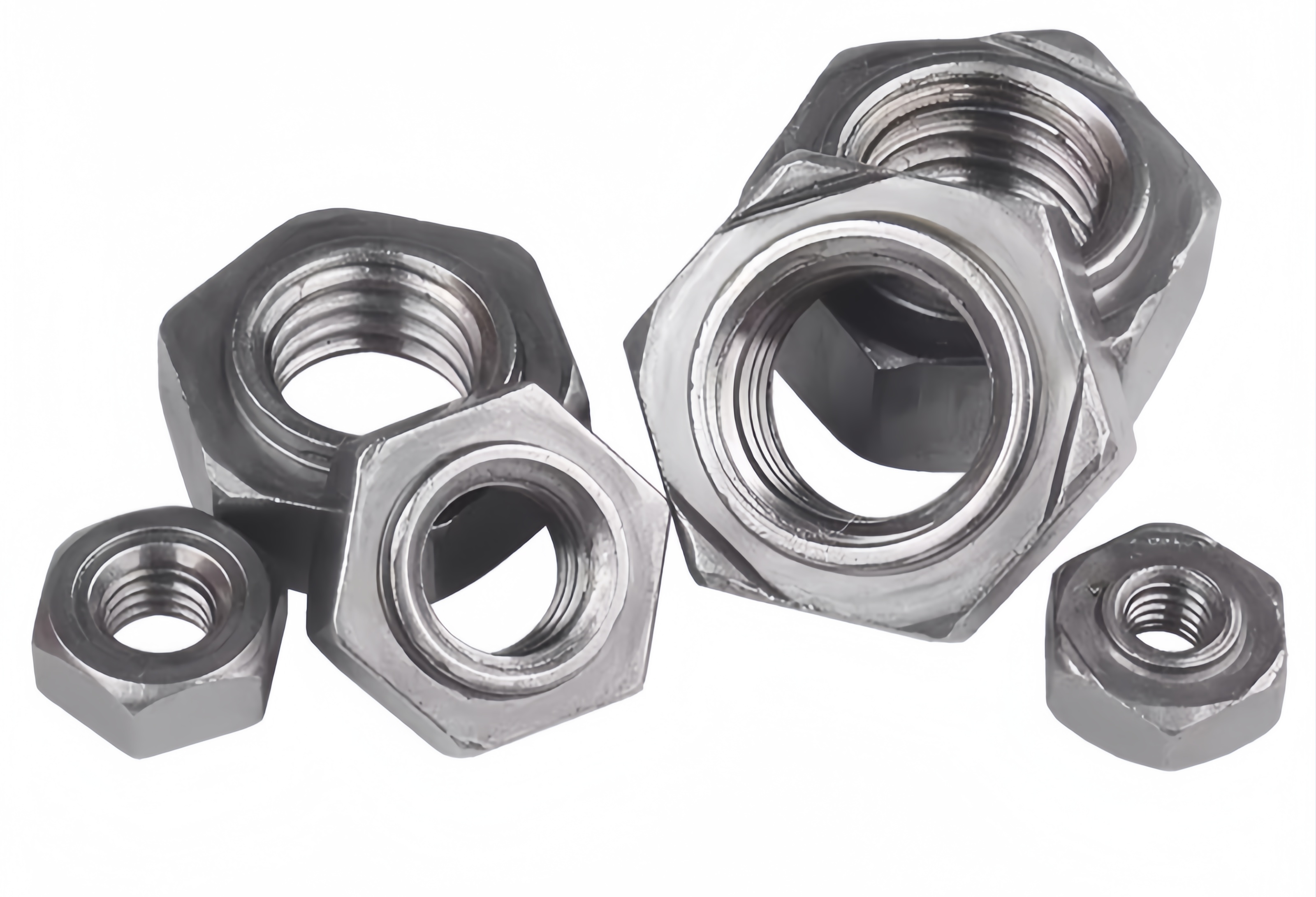

A carbon steel hex weld nut provides an integrated threaded fastening point on a suitable metal component, reducing the need to handle a separate loose nut during later assembly.

✅Suitable for Metal Fabrication
Carbon steel hex weld nuts can be used in compatible sheet metal parts, steel brackets, equipment housings, and fabricated metal assemblies where a welded nut connection is specified.

✅Supports Efficient Assembly
Once properly welded and inspected, the carbon steel hex weld nut provides a fixed threaded point for installing compatible bolts during production or maintenance.

✅Useful for Industrial Production
The standardized product designation helps purchasing teams communicate their requirements to suppliers and coordinate fastener selection across manufacturing projects.

✅Packaging for Easier Handling
Plastic bag and paper box packaging options help organize carbon steel hex weld nuts for warehousing, order preparation, and delivery.

How to Use the D28 Screw Clamp?

Step 1: Check Product Specifications

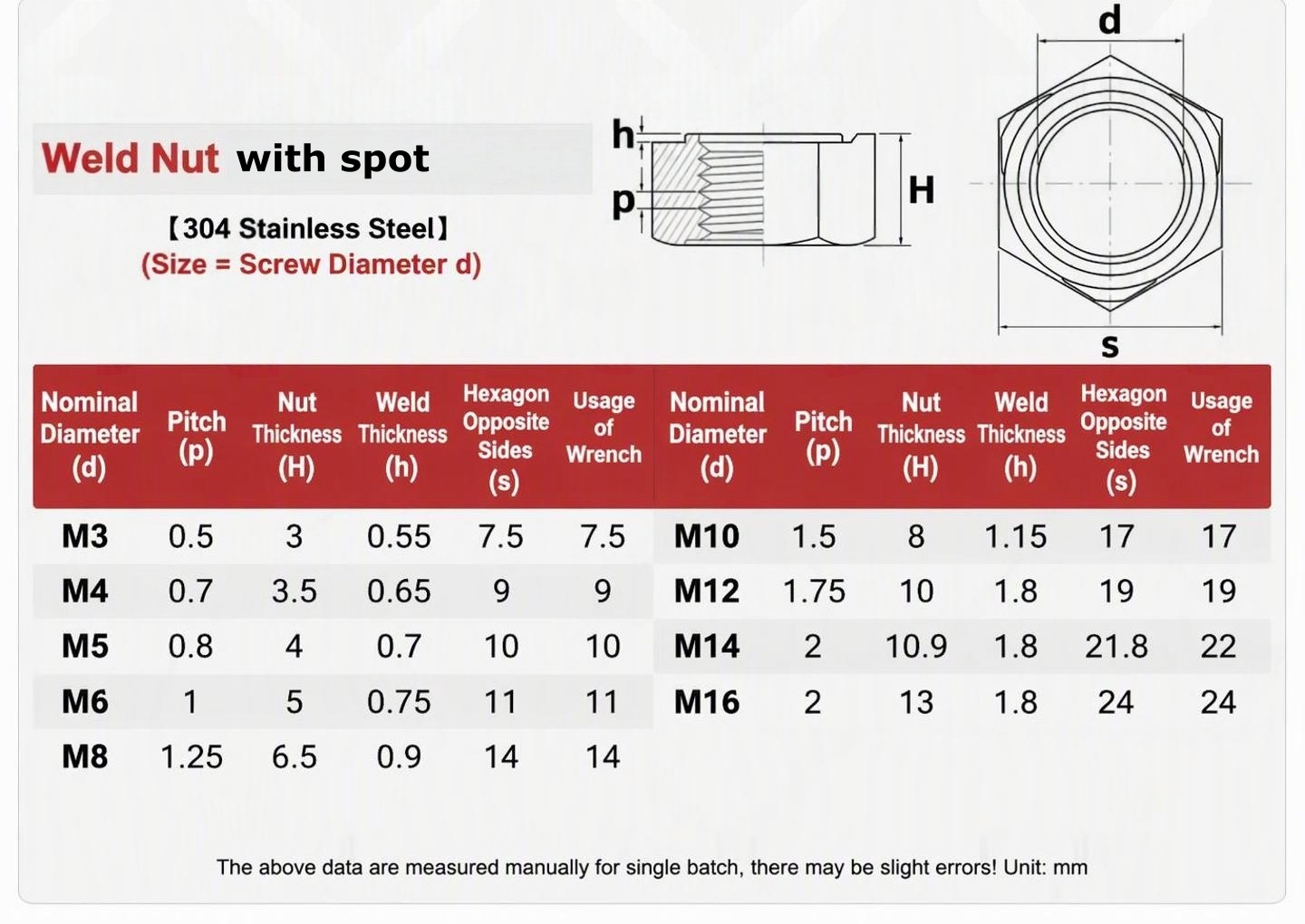

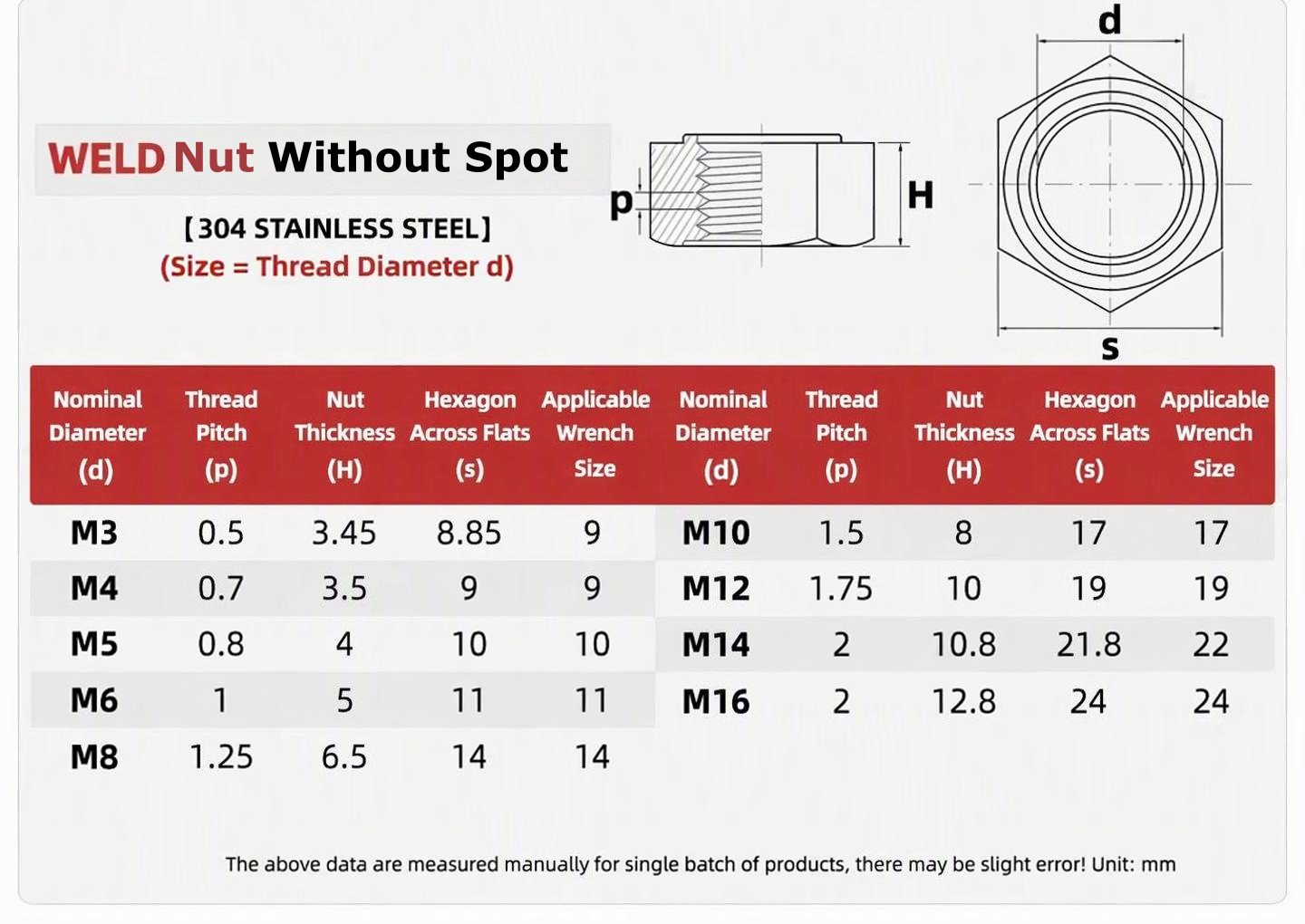

Before installation, confirm that the DIN 928 carbon steel hex weld nut matches the required thread size, dimensions, material, and assembly design. The mating bolt must be compatible with the nut thread.

Step 2: Prepare the Metal Surface
Prepare the designated welding area according to the approved welding procedure. Remove contaminants that could interfere with welding, and make sure the workpiece is correctly positioned.

Step 3: Position the Hex Weld Nut
Place the carbon steel hex weld nut at the specified mounting location. Use suitable positioning tools or fixtures to maintain alignment and prevent unwanted movement during welding.

Step 4: Weld According to the Approved Procedure
Use a welding method and parameters appropriate for the nut, base material, component thickness, and intended application. Welding should be performed by qualified personnel following applicable safety procedures.

Step 5: Inspect the Welded Connection
After welding, inspect the joint for positioning accuracy, weld quality, and visible defects. Allow the component to cool as required by the approved process.

Step 6: Check Thread Compatibility
After the component has cooled and been inspected, verify that the internal thread remains usable and that the compatible bolt can be installed correctly. Avoid forcing a bolt into a damaged or misaligned thread.

Important: Welding suitability and final connection strength depend on the component design, base material, welding process, and service conditions. Validate the assembly before production use.

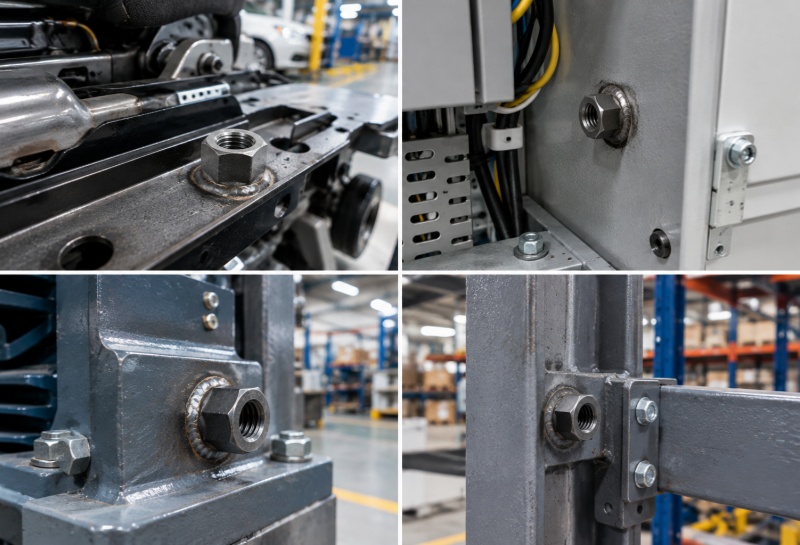

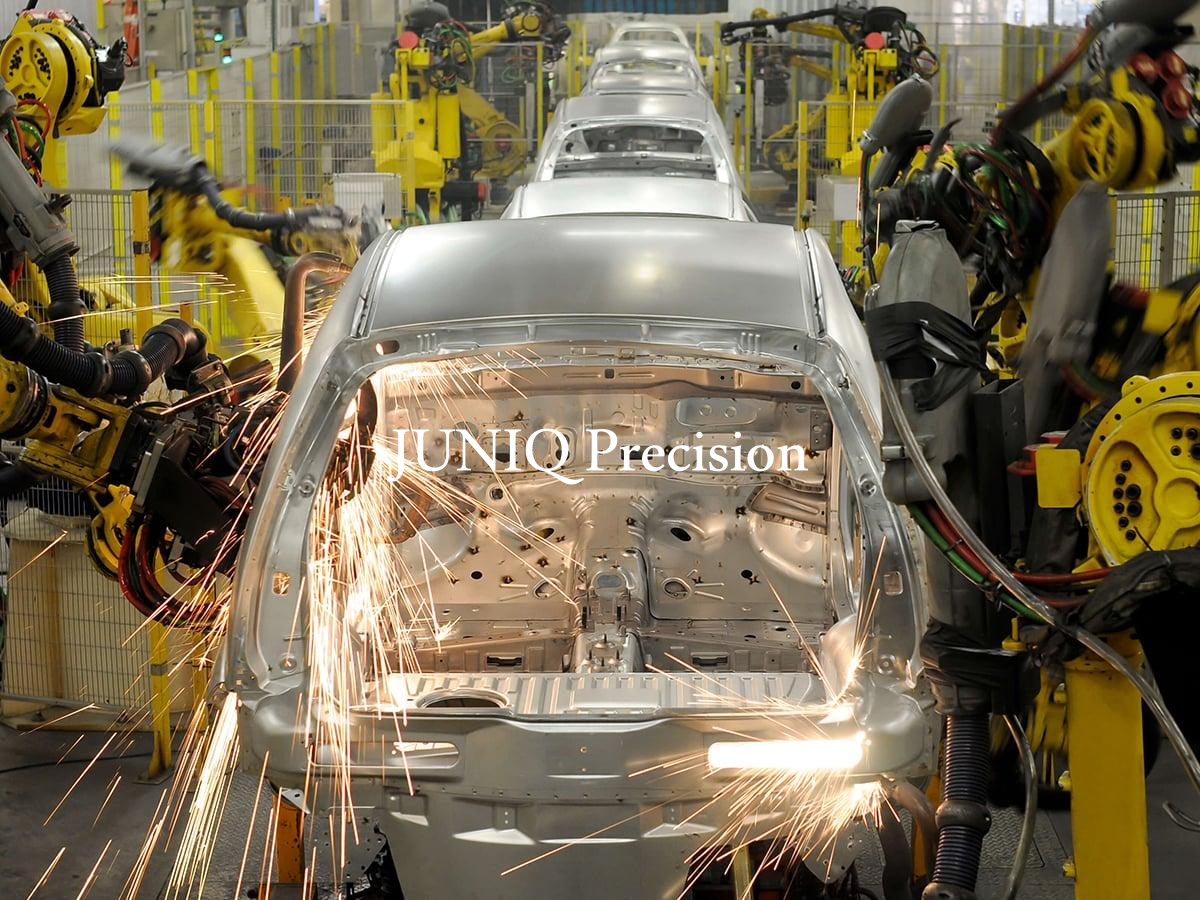

•Automotive Parts and Metal Brackets
Carbon steel hex weld nuts can be used on suitable automotive metal brackets and fabricated components to provide threaded mounting points for compatible fasteners.

•Sheet Metal Fabrication

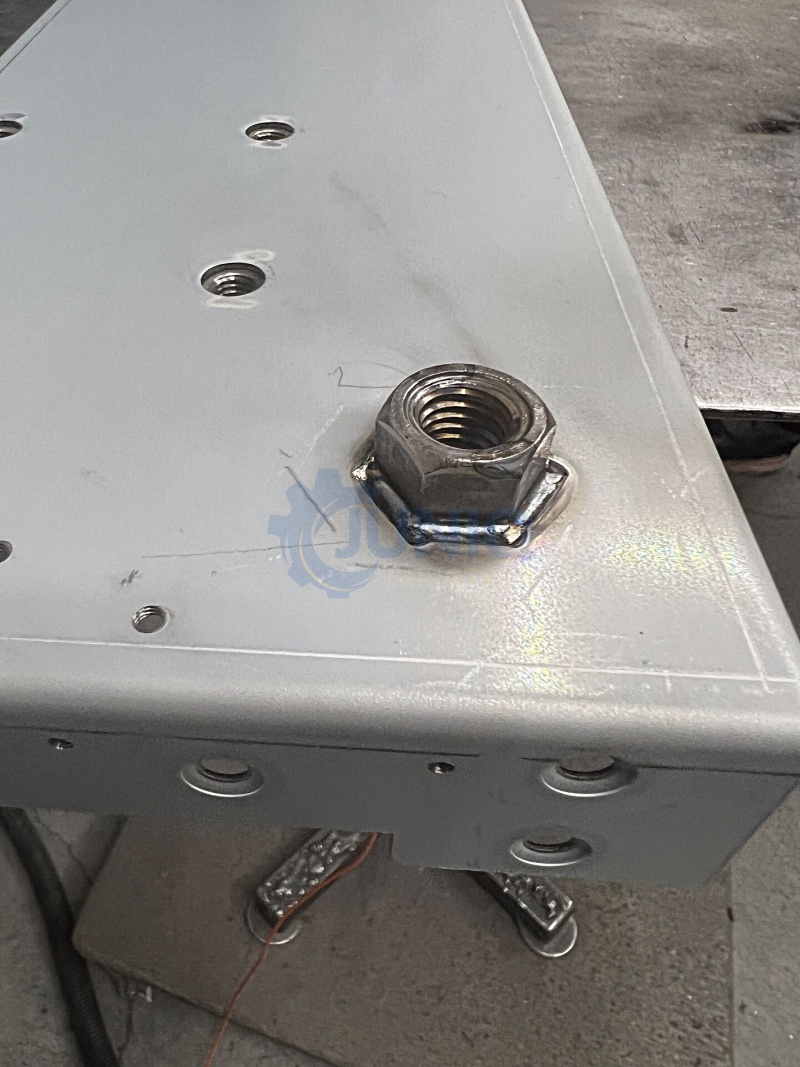

In sheet metal fabrication, carbon steel hex weld nuts can be welded onto compatible panels and metal parts used in cabinets, housings, and fabricated assemblies.

•Industrial Machinery
Machinery manufacturers may use carbon steel hex weld nuts on steel frames, mounting brackets, and equipment components where a welded threaded connection is required.

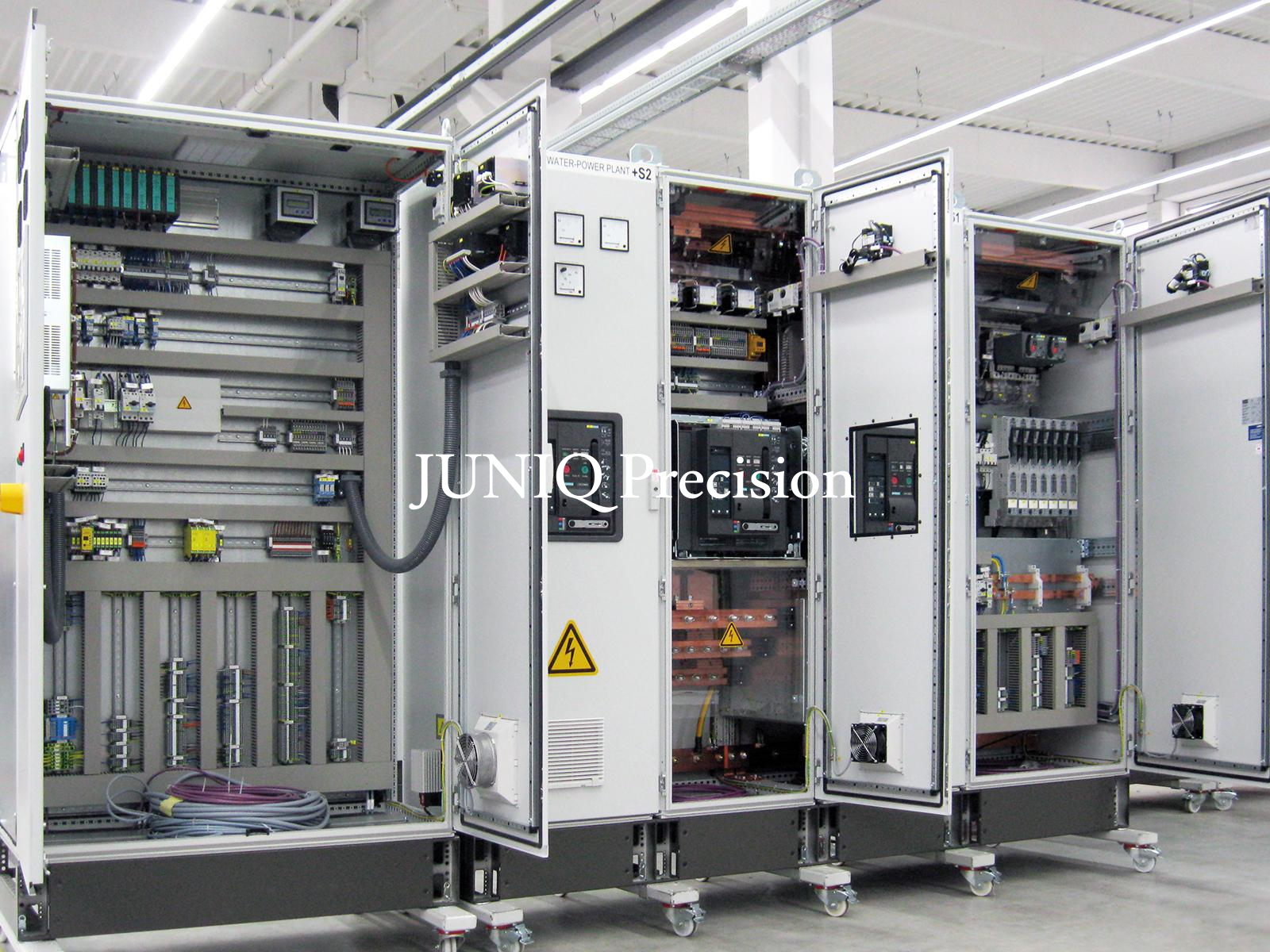

•Electrical Cabinets and Metal Enclosures
DIN 928 hex weld nuts can be applied to suitable metal enclosure components to support the installation of compatible brackets, covers, and internal mounting parts.

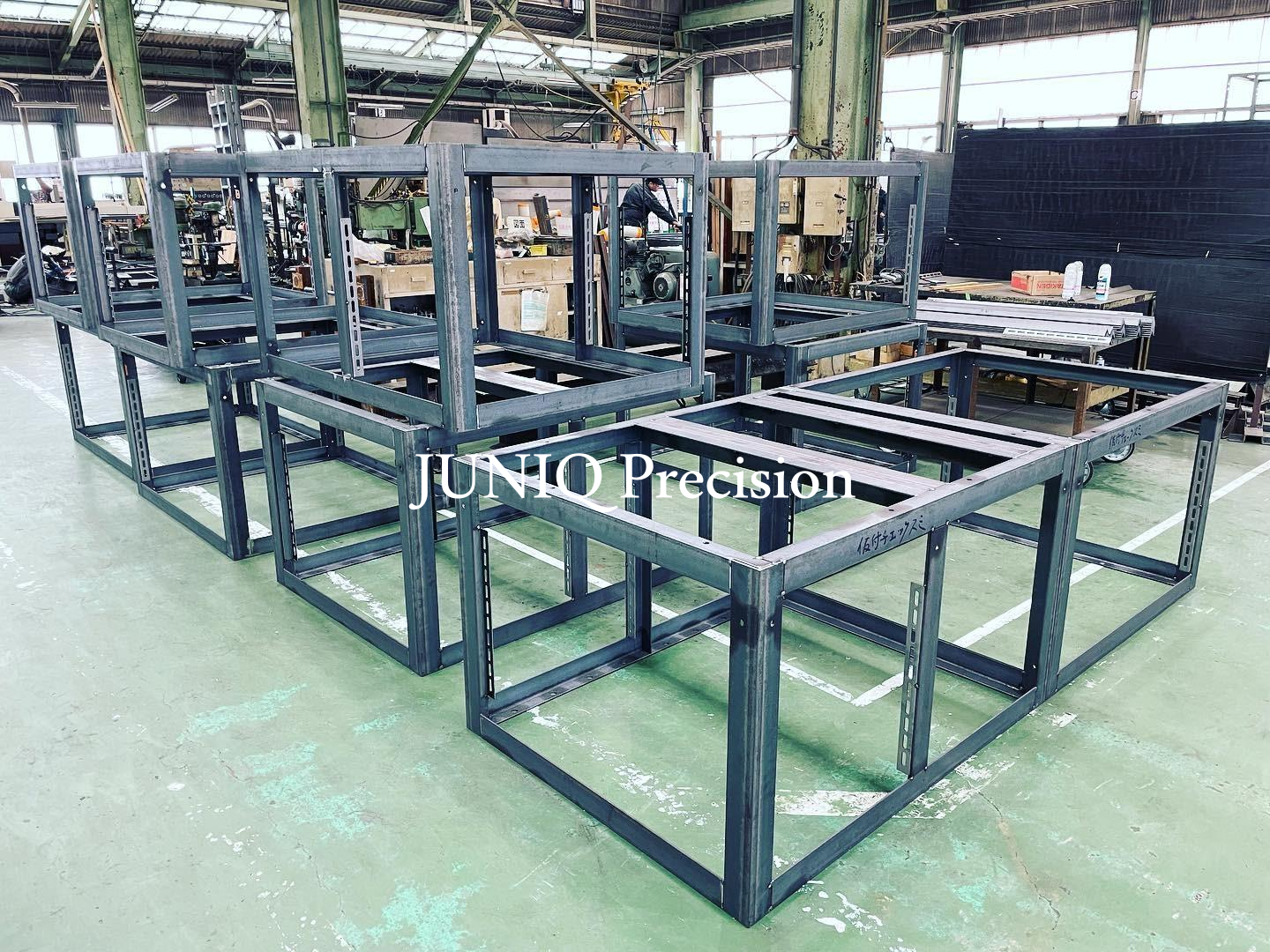

•Steel Furniture and Metal Products
Carbon steel hex weld nuts can be incorporated into compatible steel furniture frames, metal supports, and fabricated products that require fixed threaded fastening points.

•General Metalworking and Equipment Assembly
Metalworking businesses can use DIN 928 carbon steel hex weld nuts in custom fabrication projects where the material, dimensions, welding method, and load requirements are suitable.
