Horizontal Quick Fixture Toggle Clamp
Horizontal Quick Fixture Toggle Clamp Supplier.Find a horizontal quick fixture toggle clamp with disc block or square plate for industrial workholding, assembly jigs, and fixture positioning. Contact Us for product details and customization support.
Features
- Horizontal Handle Operation
- Disc Block or Square Plate Design
- Compact Fixture Integration
- D28 Welding Table
- Suitable for Repetitive Operations
Applications
https://juniqprecision.com/contact

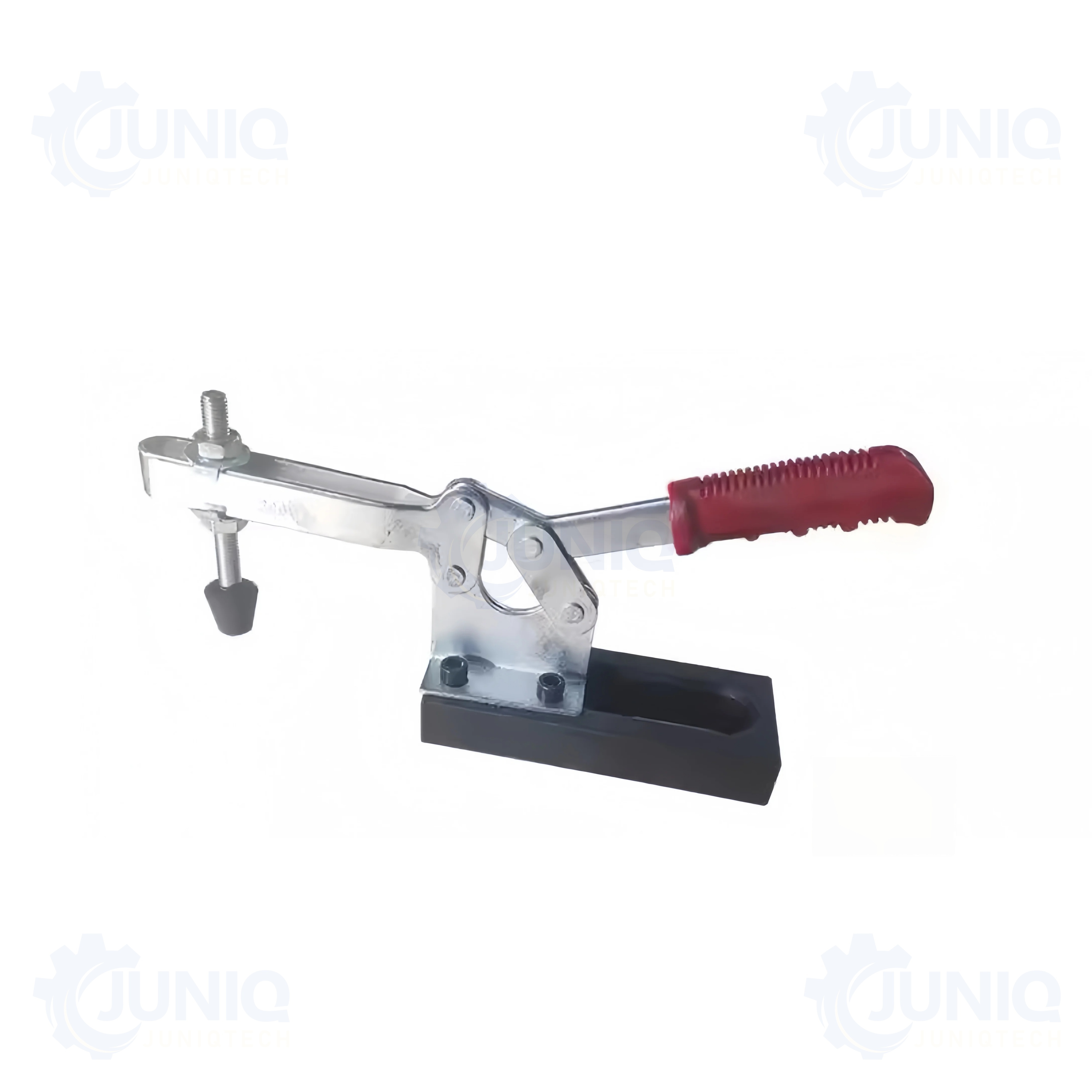

Horizontal Quick Fixture Toggle Clamp with Disc Block / Square Plate
Fast Clamping. Reliable Positioning. Efficient Production.
ⓘ Important Notice: Due to the wide range of specifications available, not all options can be listed here. Please contact our sales engineers for the complete specification sheet and corresponding quotation.

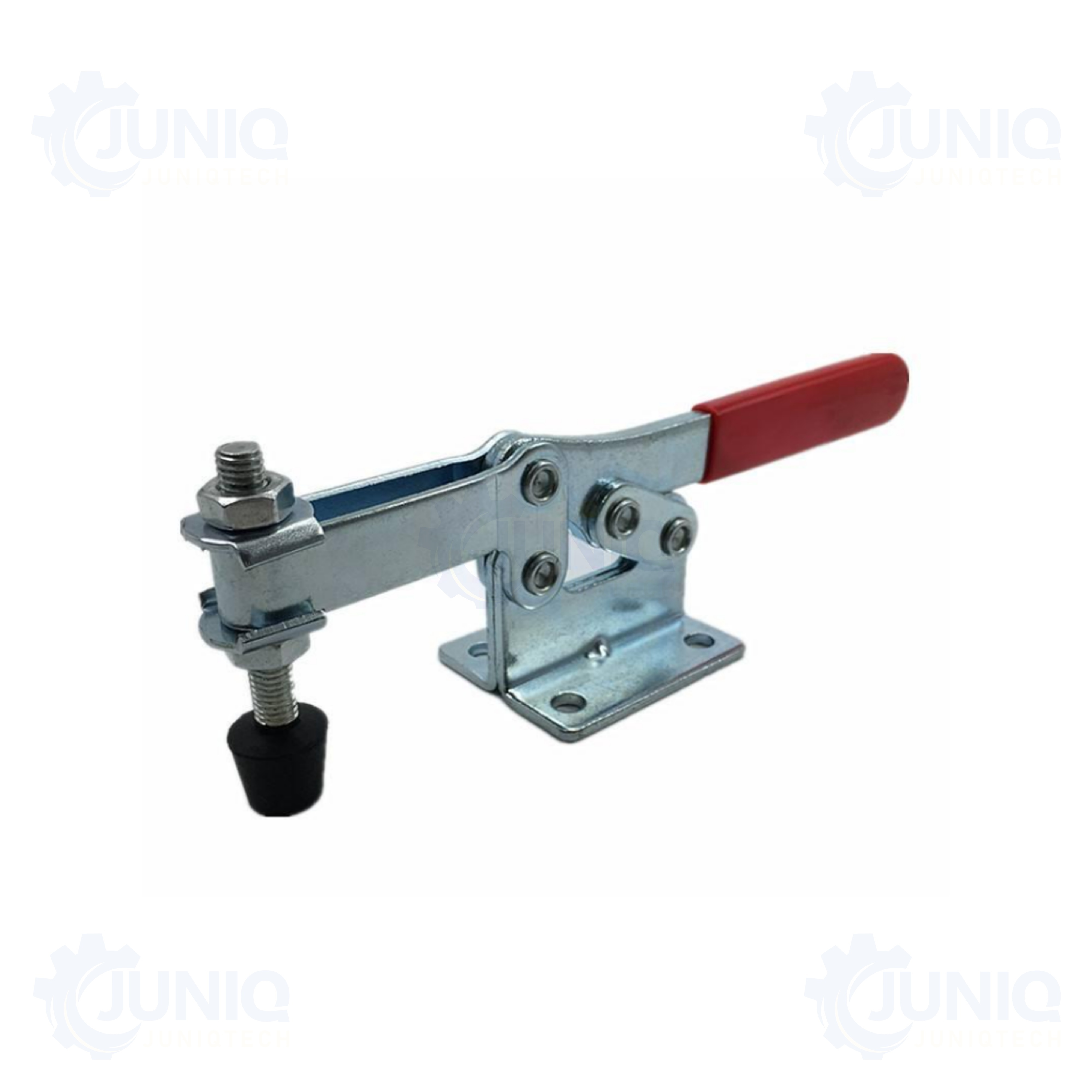

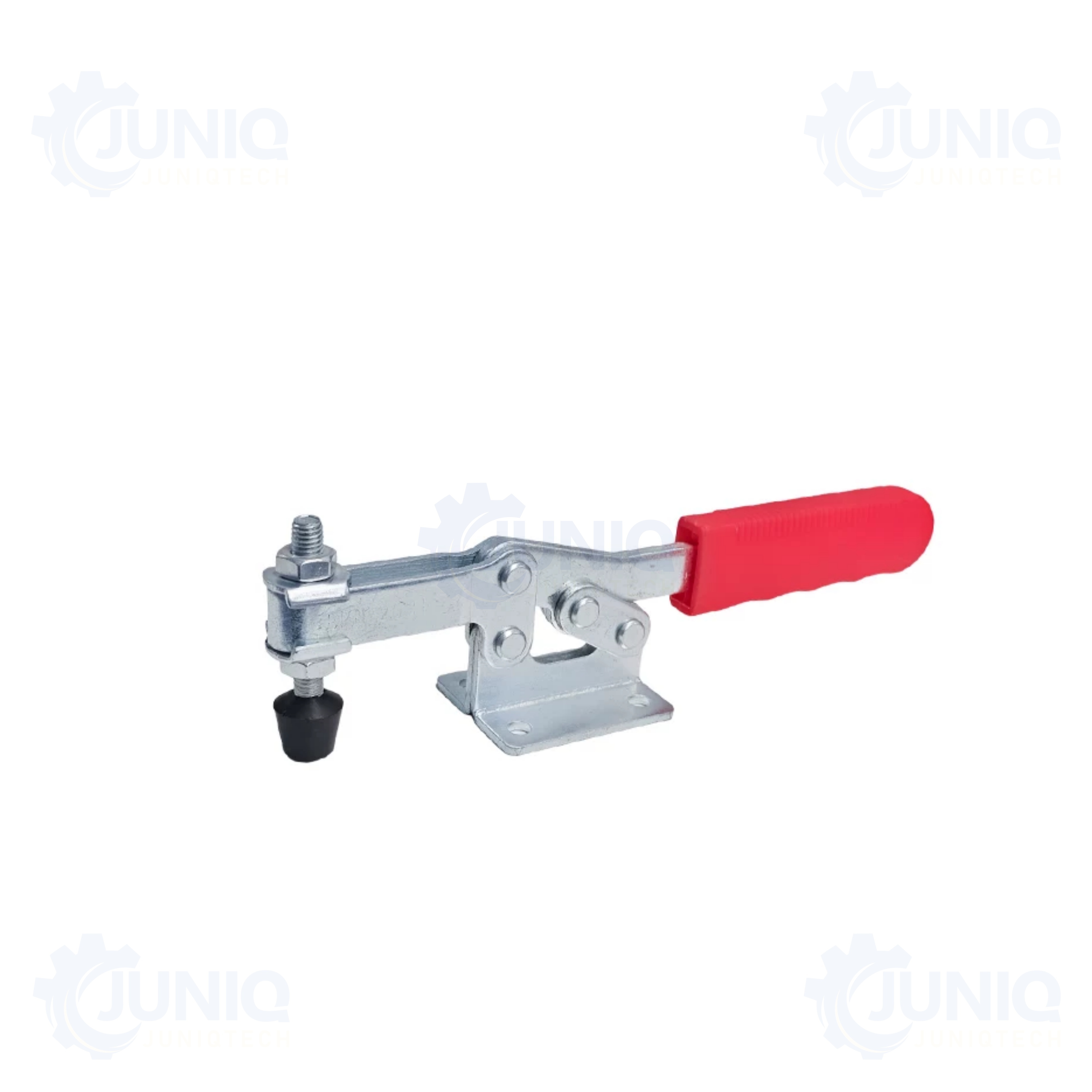

The Horizontal Quick Fixture Toggle Clamp with Disc Block / Square Plates is a mechanical clamping component designed to secure workpieces during manufacturing and assembly operations.
Its horizontal handle configuration supports convenient operation, while the disc block or square plate contact options can accommodate different fixture designs and workpiece contact requirements, depending on the selected configuration.
With a quick-action toggle mechanism, operators can clamp and release workpieces efficiently, making this product suitable for repetitive tasks where convenient operation and consistent workholding are important.
Contact Us Now!
Email: info@juniqprecision.com
WhatsApp: +86 151 5226 0167
Website: www.juniqprecision.com
Design for Great Clamping Performance

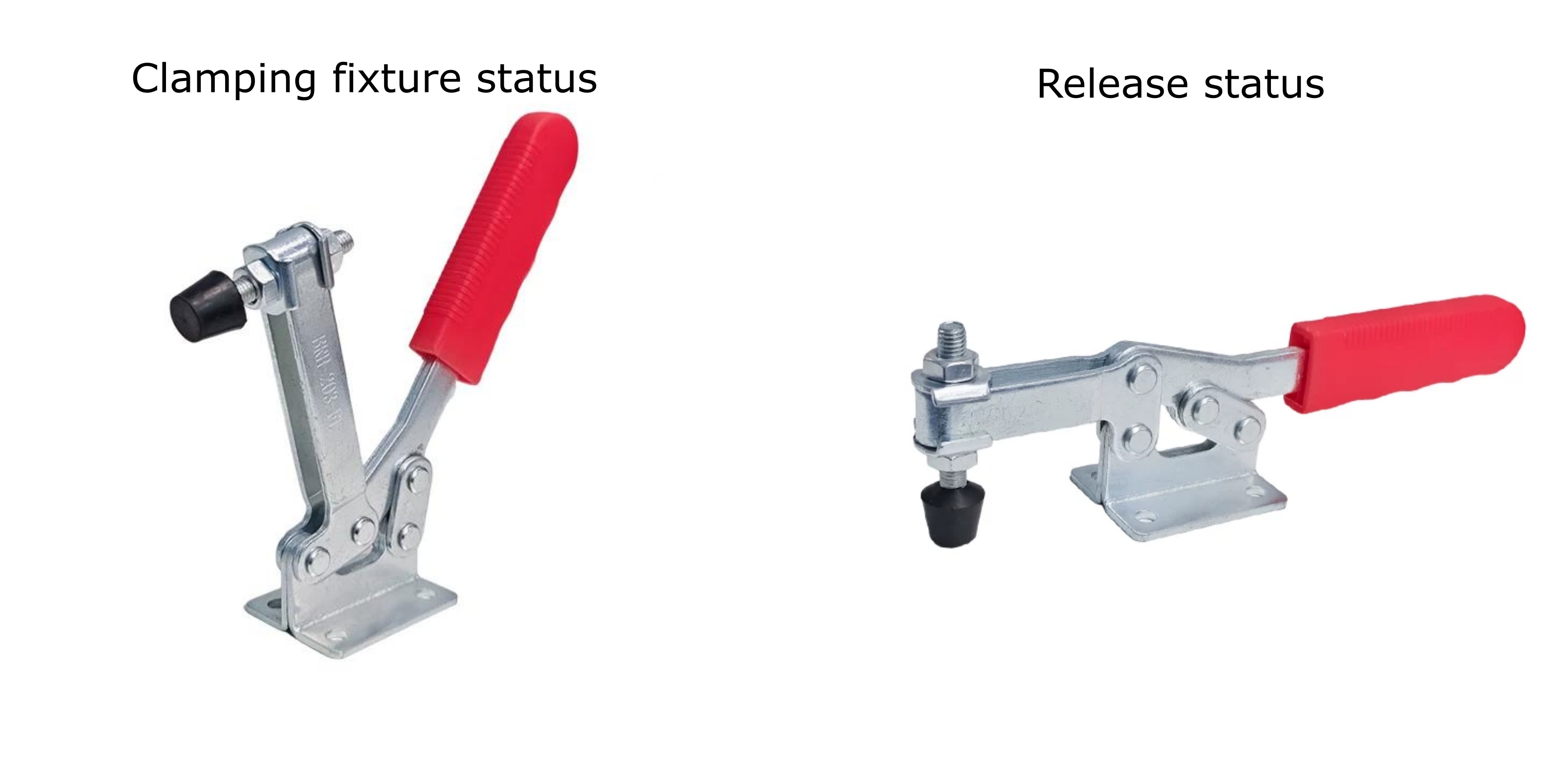

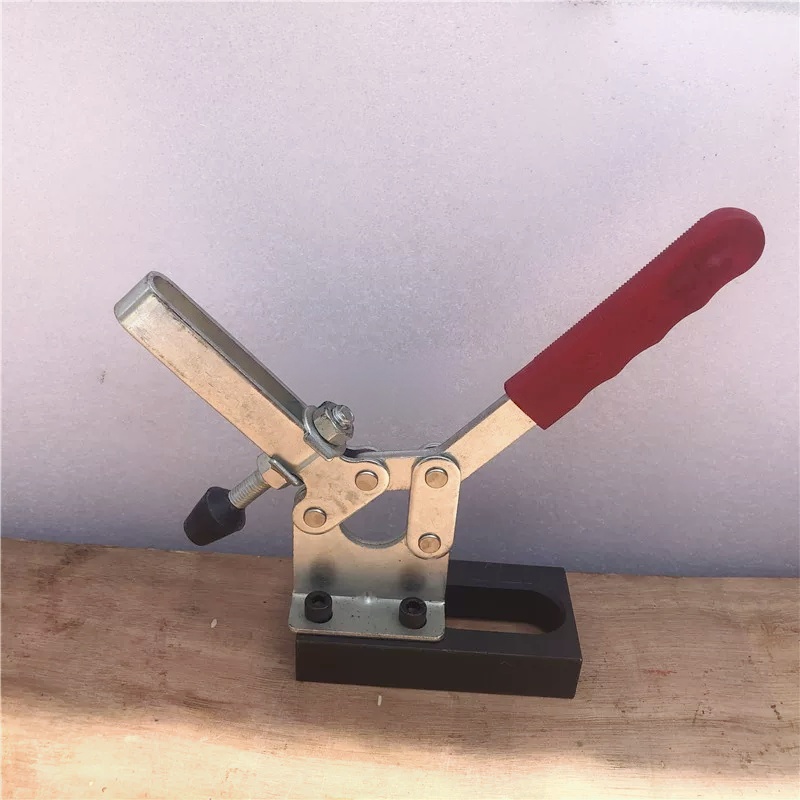

Quick and Convenient Clamping
The toggle mechanism enables fast manual clamping and release, helping reduce unnecessary handling time during repetitive production operations.
Flexible Contact Options
Available disc block and square plate configurations provide options for different contact surfaces and fixture layouts. Select the appropriate design based on your workpiece geometry and application requirements.
Horizontal Handle Design
The horizontal configuration is suitable for fixture arrangements where handle movement, accessibility, and mounting space are important considerations.
Stable Workpiece Holding
When correctly selected, installed, and adjusted, the clamp helps hold workpieces in position during suitable machining, welding, inspection, and assembly operations.
Practical for Repetitive Production
Designed for applications that require frequent clamping and unclamping, this component can help simplify manual workholding procedures and support consistent workflows.
Why Choose the Horizontal Quick Fixture Toggle Clamp
Choosing the right fixture clamp can make a difference in daily production efficiency.
An unsuitable clamping arrangement may increase setup time, complicate operator access, or make workpiece positioning more difficult.
The Horizontal Quick Fixture Toggle Clamp with Disc Block / Square Plates offers a practical option for manufacturers seeking a straightforward mechanical clamping solution.
With the right configuration, it can help you:
Simplify repetitive workholding operations.
Reduce manual clamping and release steps.
Improve accessibility around fixture assemblies.
Adapt contact points to different workpiece requirements.
Build more practical and efficient production fixtures.
Less time spent on repetitive handling. More focus on productive manufacturing.
Specification Parameters of Horizontal Toggle Clamp
Please contact us to confirm the dimensions, locking mechanism and compatibility with your welding table system.
Need exact dimensions or load specifications? Contact our team before ordering to verify the configuration that matches your application.
| Parameter | Specification | ||
|---|---|---|---|
| Product Name | Horizontal Quick Fixture Toggle Clamp with Disc Block / Square Plates | ||
| Clamping Type | Horizontal toggle clamp | ||
| Contact Configuration | Disc block / square plates, subject to model availability | ||
| Operation | Manual toggle mechanism | ||
| Main Function | Workpiece Holding and Positioning | ||
| Application | Welding, machining, assembly, inspection, and fixture systems | ||
| MOQ | 1 Piece | ||

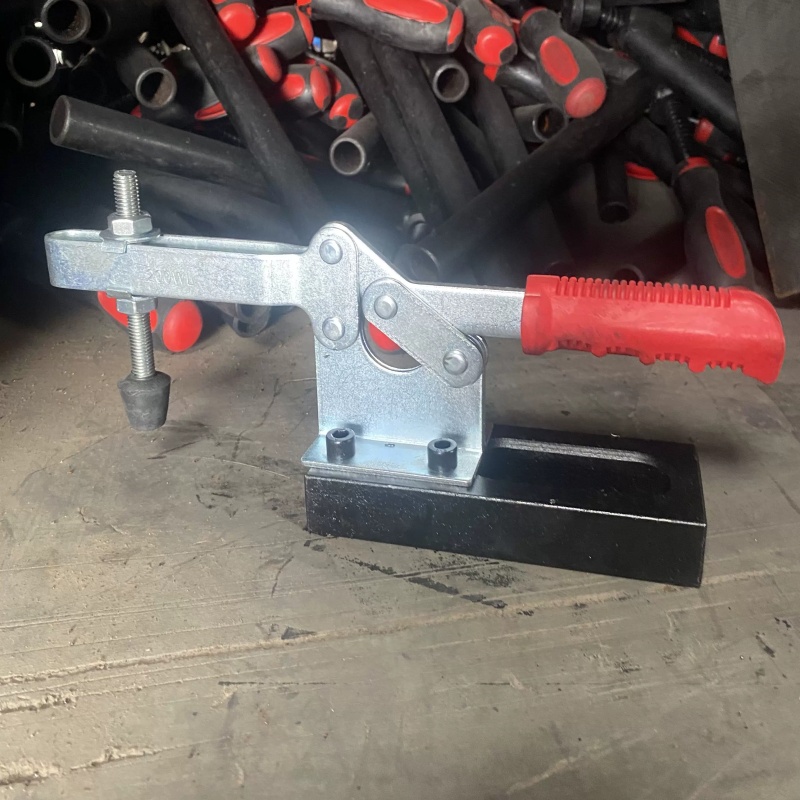

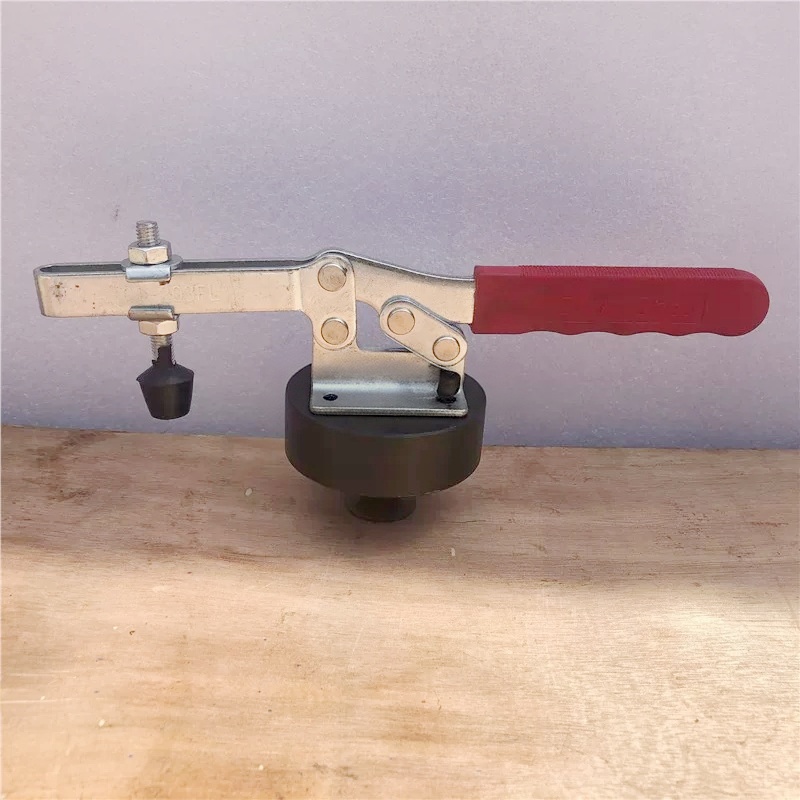

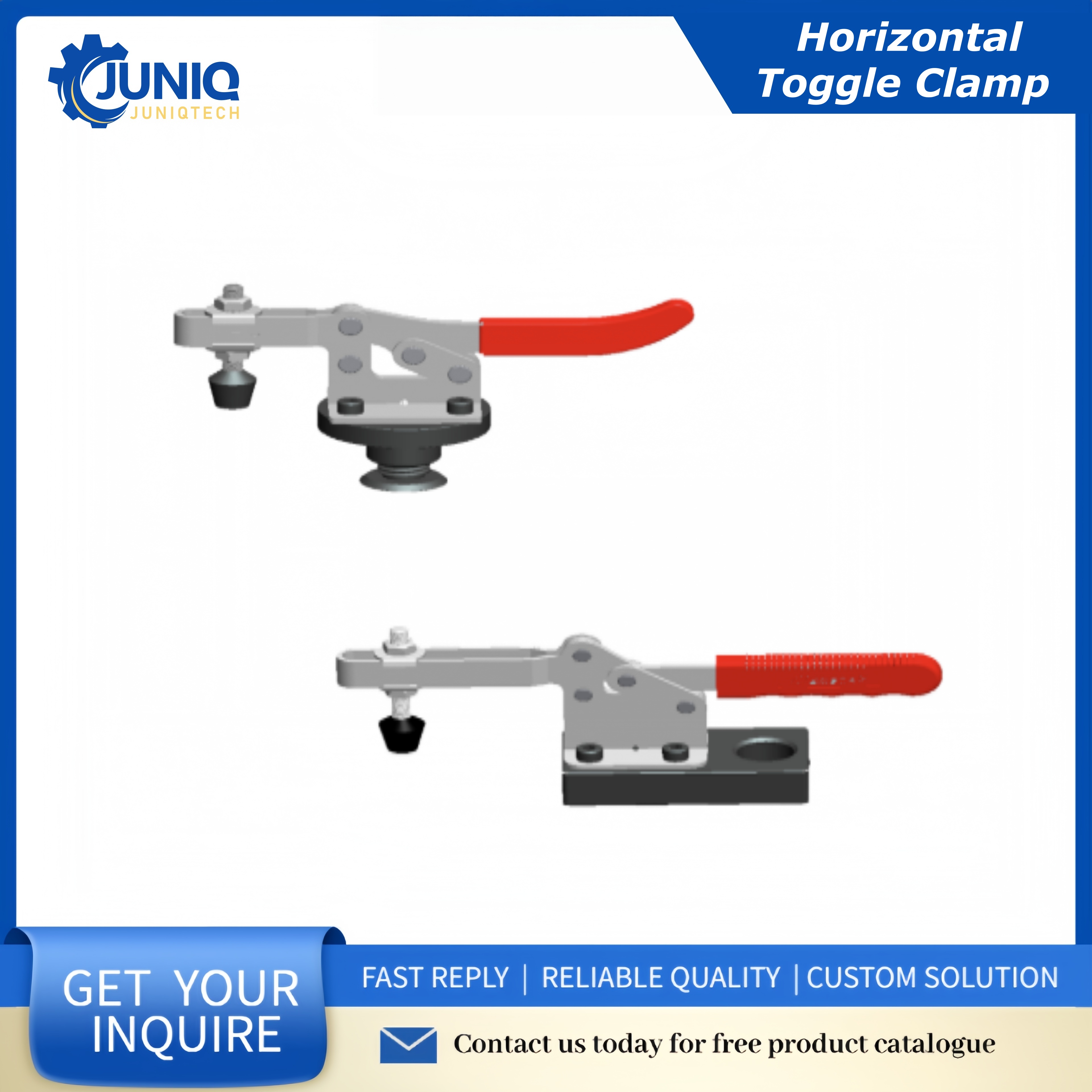

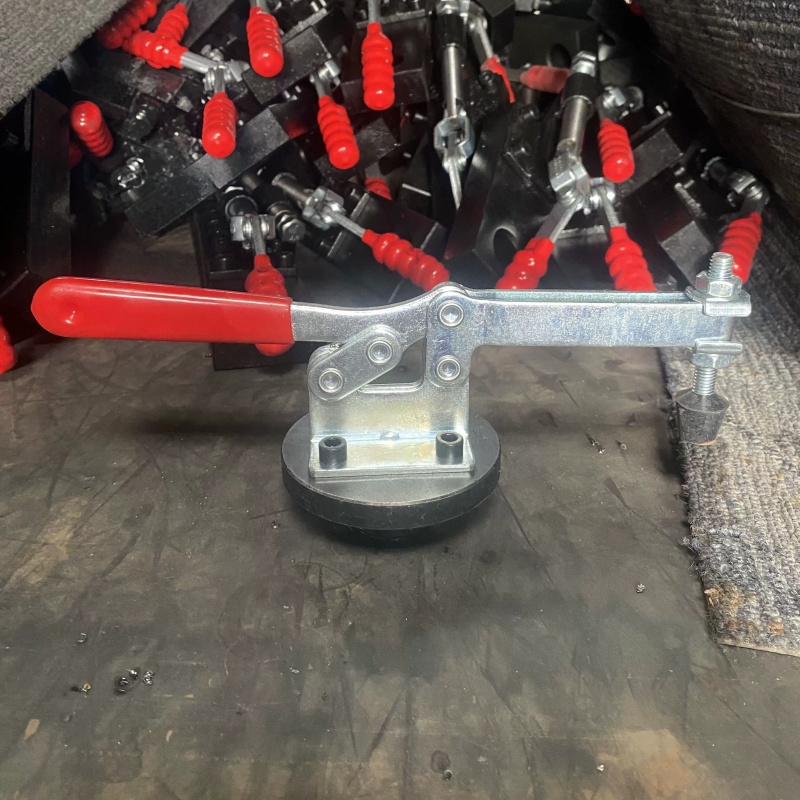

| Disc Base vs. Square Plate Base | |||
| Feature | Disc Base | Square Plate Base | |
| Base Shape | Round | Square | |
| Mounting Choice | For compatible round-base layouts | For compatible plate-style layouts | |
| Fixture Integration | Suitable for compatible workholding fixtures | Suitable for compatible workholding fixtures | |
| How to Choose | Check the base size and mounting requirements | Check the base size and mounting requirements | |
| Welding Table System | D28/D16 | D28/D16 | |
How to Select the Right Toggle Clamp?
To achieve reliable workholding performance, consider the following factors before selecting your clamp:
Workpiece dimensions and shape: Check the available contact area and clearance around the workpiece.
Required clamping force: Ensure the selected model meets your application requirements without exceeding its rated capacity.
Mounting space: Confirm the base dimensions, mounting holes, and handle movement envelope.
Contact configuration: Choose the disc block or square plate option that suits your fixture geometry.
Operating environment: Consider exposure to heat, welding spatter, coolant, dust, and other process conditions.
Operating frequency: Evaluate the expected duty cycle and maintenance requirements.
Video of our Horizontal Toggle Clamp
Want to know more about Horizontal Toggle Clamp for 3D Modular Welding Table?Pls take a look at the following video!
Feel free to contact our sales team for more details and price.
Where Horizontal Toggle Clamp Are Used？
The Horizontal Quick Fixture Toggle Clamp with Disc Block / Square Plates can be considered for a range of industrial workholding applications, subject to the clamp's rated capacity and installation requirements.
Welding Fixtures
Help secure suitable components during welding preparation and positioning.
Machining Fixtures
Support workpiece holding in appropriate machining setups where the clamp's capacity and clearance meet process requirements.
Assembly Stations
Facilitate repetitive positioning and holding during manual assembly operations.
Inspection and Testing Fixtures
Help maintain workpiece positioning during dimensional inspection and related procedures.
Custom Automation and Production Equipment
Integrate into suitable fixture systems and dedicated workstations where quick manual clamping is required.
Automotive Parts Manufacturing
In automotive component production, the Vertical Hold-down Toggle Clamp can be incorporated into suitable assembly and inspection fixtures to hold metal components in position during repetitive manufacturing operations.
Customization and Ordering
Looking for a Horizontal Quick Fixture Toggle Clamp for your modular welding table? We can discuss customized dimensions, materials and locking configurations based on your drawings, samples or application requirements.
Customization Options
- ✓ Material selection
- ✓ Custom sizes
- ✓ Diameter specifications
- ✓Private label and branding
- ✓Custom packaging design
Request a Quote
To help us identify the right product for your application, please provide:
-
✓Required dimensions and table hole size
-
✓Material and surface treatment requirements
-
✓Locking mechanism or reference photos
-
✓Estimated order quantity
-
✓Drawings or samples, if available
Our team can review your requirements and discuss a suitable solution.
How are Our Horizontal Quick Fixture Toggle Clamp Shipped?
Inquiry & Specification
Contact our sales team with your required specifications of Horizontal Quick Fixture Toggle Clamp ,we can discuss suitable packaging and shipping arrangements according to product dimensions, order quantity and destination.

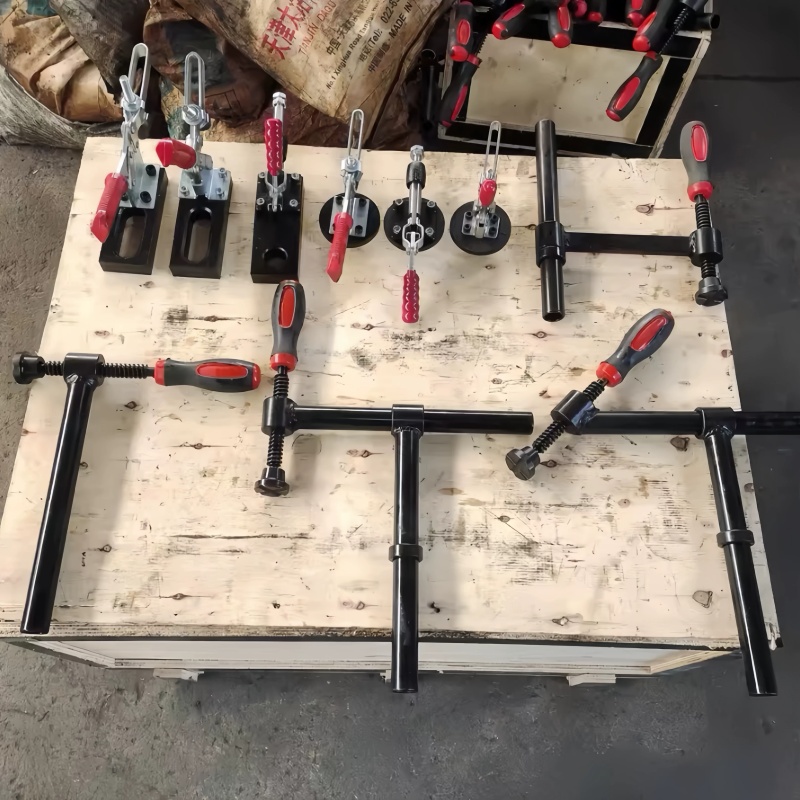

Packaging
Standard industrial packaging ensures safe transit. Custom packaging and labeling available for OEM customers. Bulk orders shipped on pallets with protective wrapping.
Delivery & Lead Time
Standard production lead times range from 7-15 days depending on order quantity and specifications. Express shipping options available for urgent requirements.
Why Source from JUNIQ Precision?
Horizontal Quick Fixture Toggle Clamp
At juniqprecision, we understand that industrial buyers need more than a product name. They need a workholding component that fits their fixture design, production process, and purchasing requirements.
We aim to help customers identify suitable precision workholding products for practical manufacturing applications.
When discussing your Horizontal Quick Fixture Toggle Clamp with Disc Block / Square Plates requirements, provide your application details so the correct product configuration can be evaluated.
Please contact us to confirm the specific services, product options, and lead times available for your order.
-
